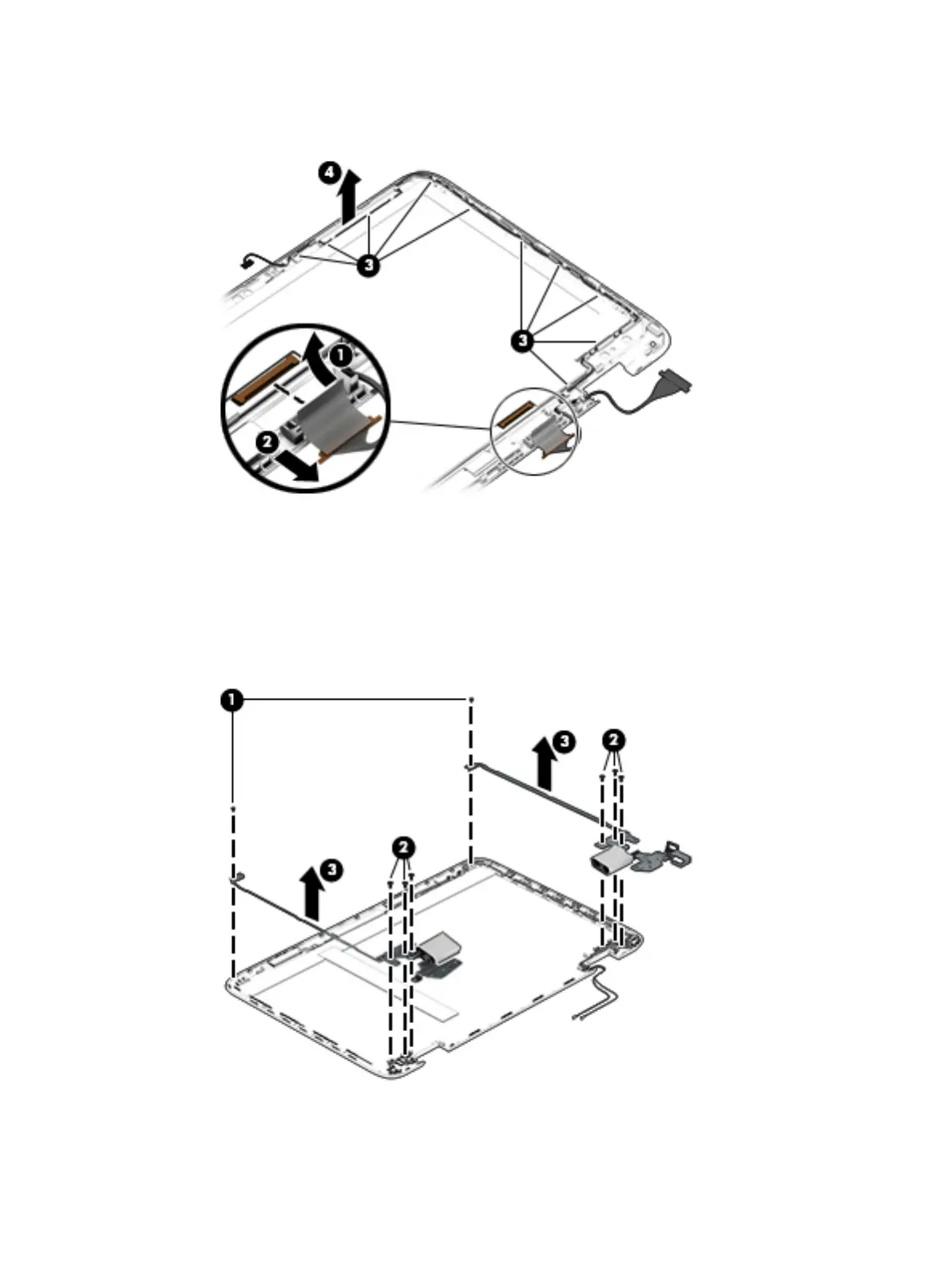

e. Remove the display panel cable (4).
The display panel cable is available using spare part number 768031-001.
14. If it is necessary to replace the display hinges:
a. Remove the Phillips PM1.9×2.7 screws (1) that secure the display hinges to the display back cover.
b. Remove the three Phillips PM2.4×4.7 screws (2) that secure the display hinges to
the display back cover.
c. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part number 768036-001.
15. If it is necessary to replace the display hinge covers:
a. Remove the Phillips PM1.9×5.5 screw (1) that secures the display hinge cover to the display hinge.
44 Chapter 5 Removal and replacement procedures
