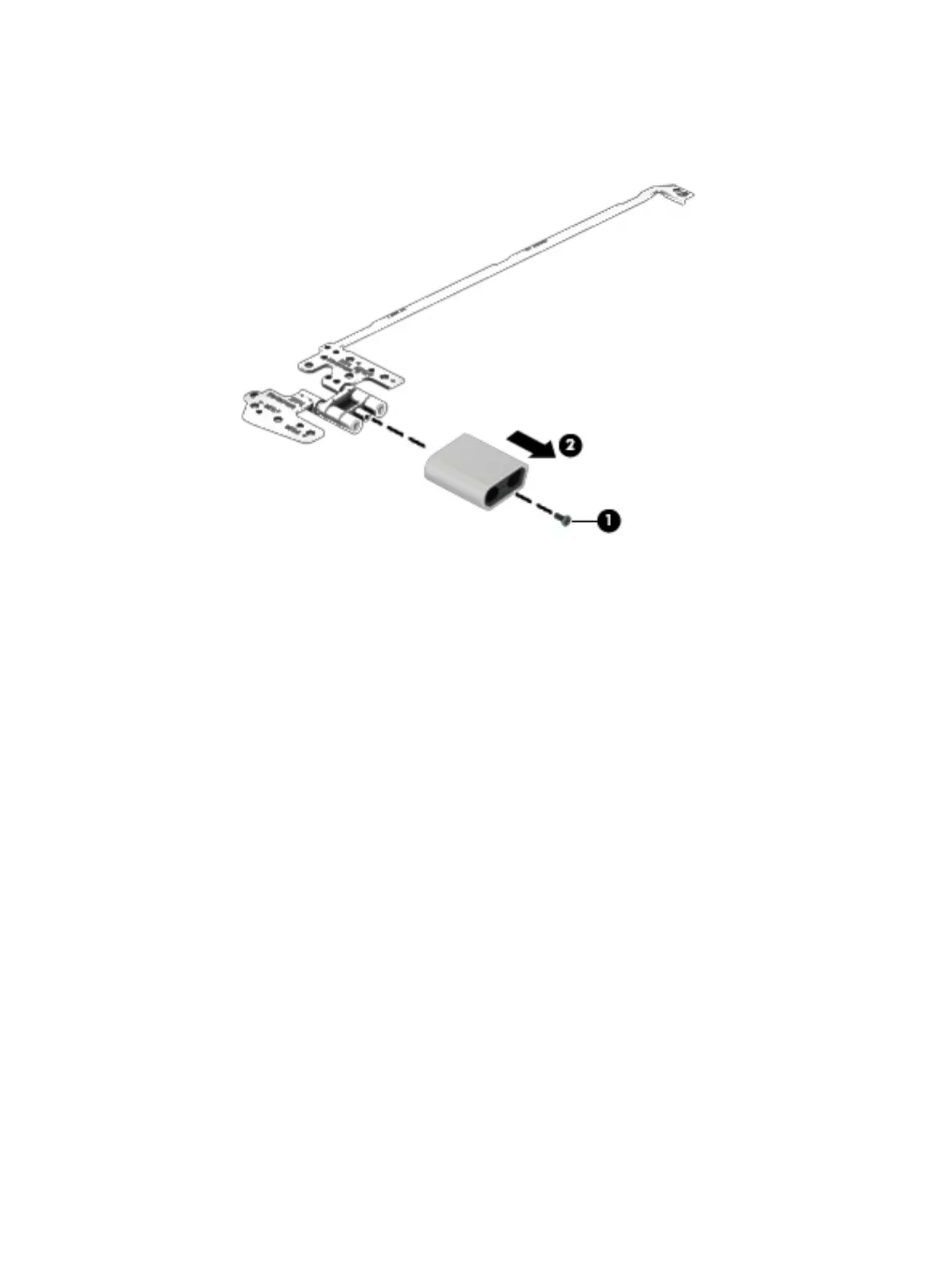

b. Remove the display hinge cover (2).
The display hinge covers are available using spare part numbers 768038-001 (in natural silver
finish) and 768037-001 (in vibrant red finish).
16. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Release the shielding material (1) that secures the WLAN antenna cables to the display back cover.
b. Release the shielding tape (2) that secures the WLAN antenna cables to the display back cover.
c. Detach the WLAN antenna transceivers (3) from the display back cover. (The WLAN antenna
transceivers are attached to the display back cover with double-sided adhesive.)
Display assembly 45
