b. Release the wireless antenna cables from the retention clips and routing channel built into the
sides of the display enclosure (2).
Antennas are available using the following spare part numbers:
L20445-001: Single antenna models
L23060-001: Single antenna, narrow bezel models
L20444-001: Dual antenna models
L23059-001: Dual antenna, narrow bezel models

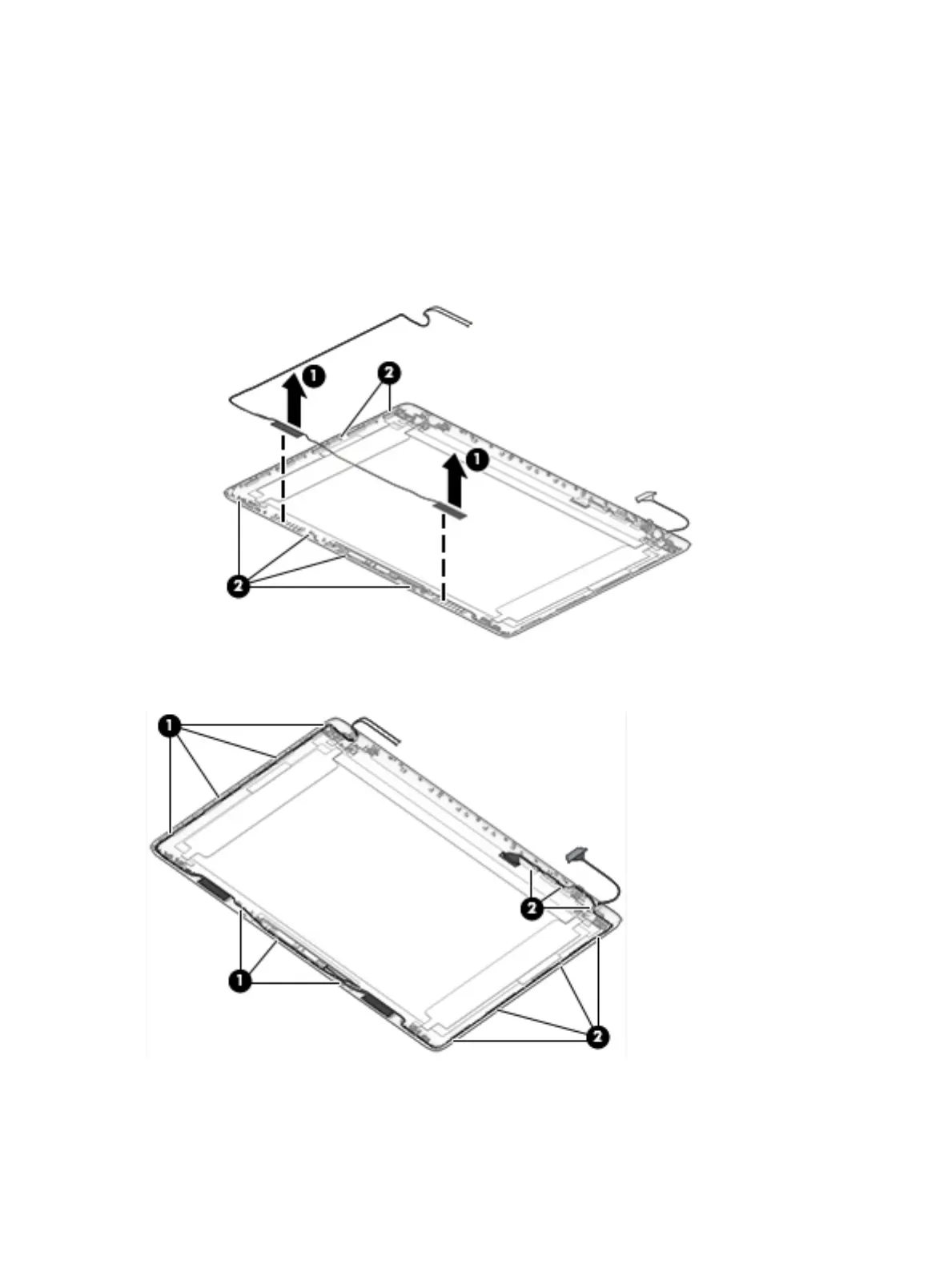

Use the following image to determine proper cable routing in the display of the antenna cable (1) and display
cable (2).
The display rear cover is available using the following spare part numbers:
L20433-001: Jet black
L23061-001: Jet black (narrow bezel models)
68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
