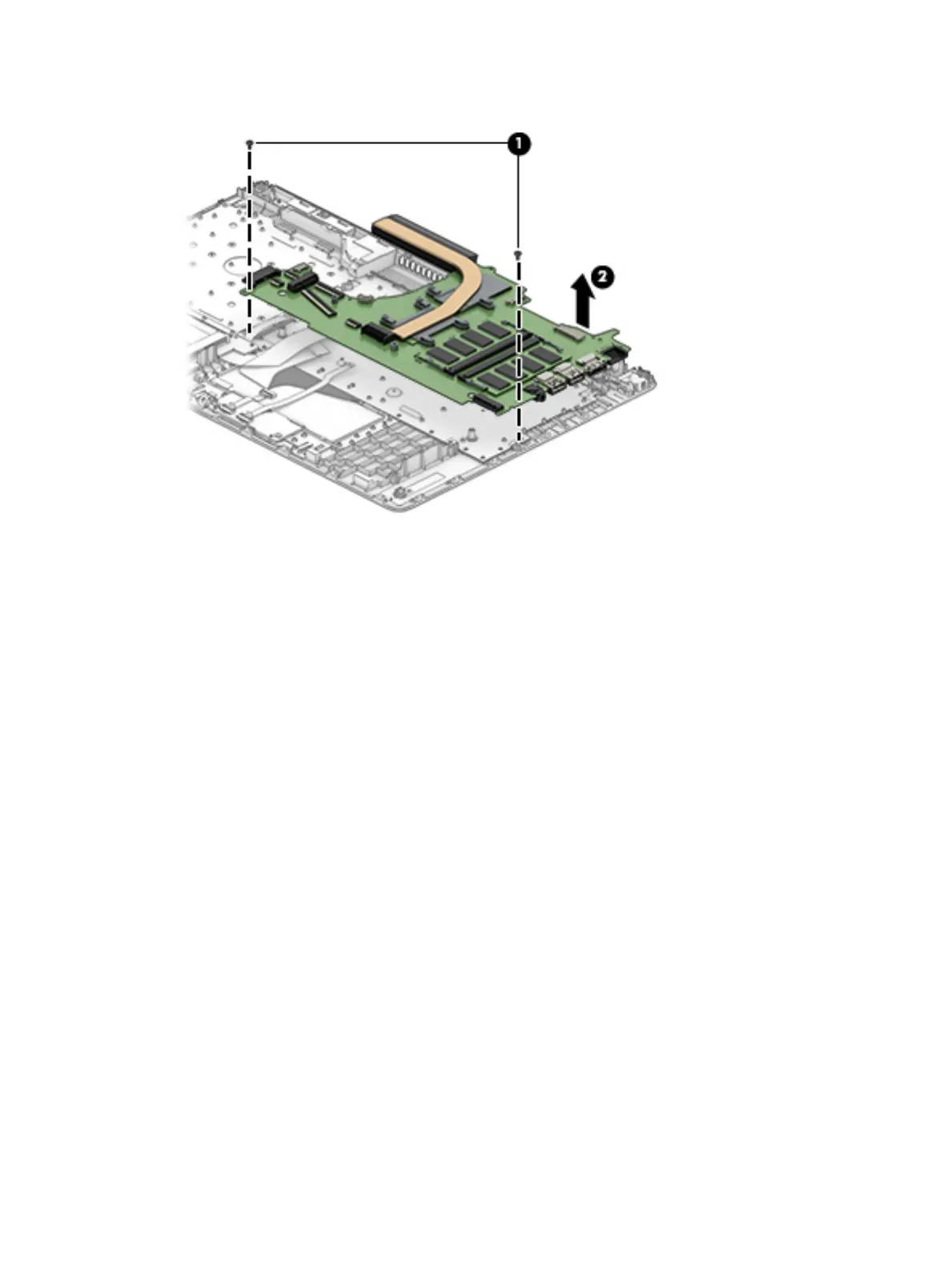

3. Lift the left side of the system board, and then remove the system board from the computer (2).

Reverse this procedure to install the system board.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
