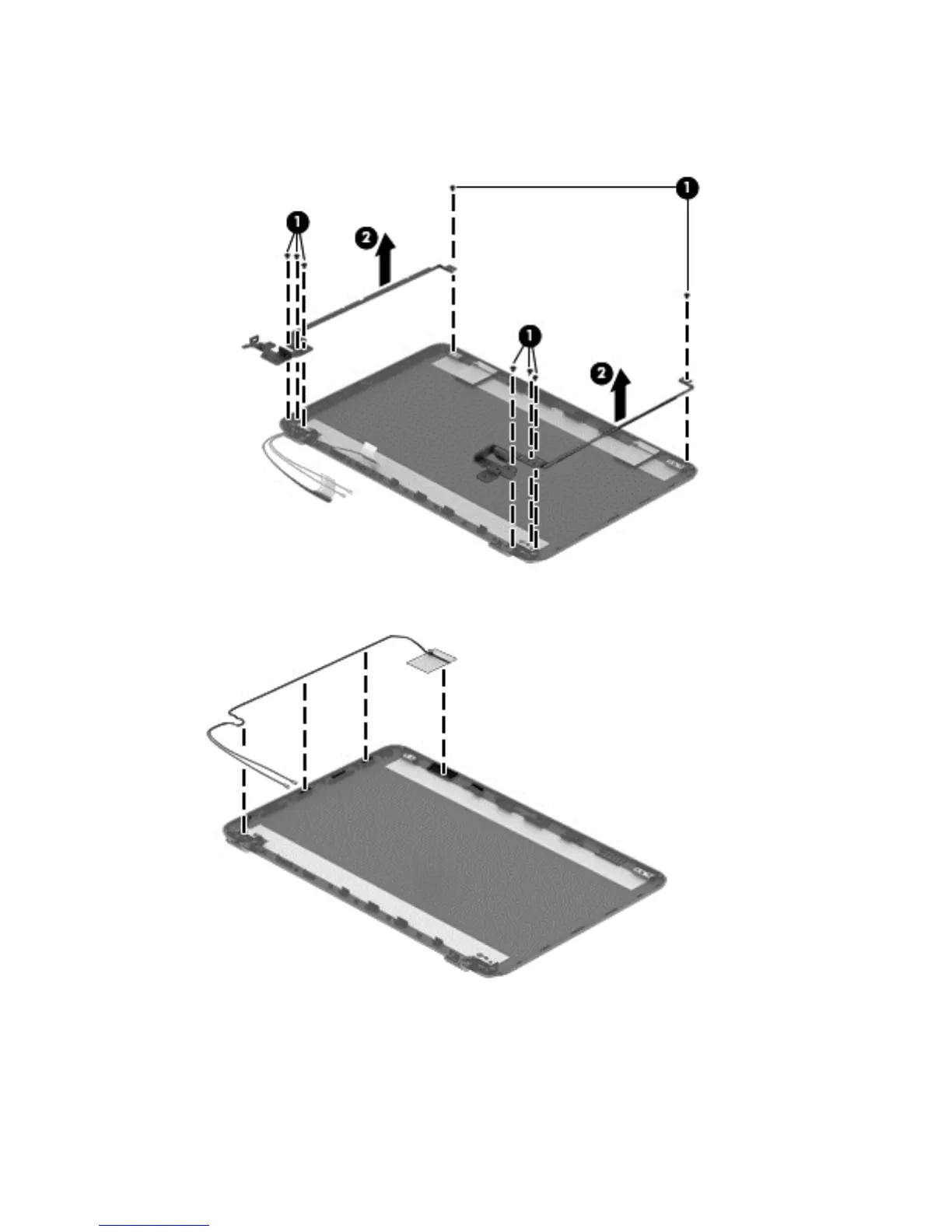

a.
Remove the eight Phil
lips PM2.5×3.5 screws
(1)
that secure the di
splay hinges to
the display panel.
b.
Remove the display hinges
(2)
.
5.
To remove the w
ireless antenna ca
bles and transceivers, release the
wireless antenna cable
s from the
clips built into the display enclosure.
Component replacement procedures
75
82
84
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Display
13
Front
14
Right Side
14
Left Side
15
Top
16
Touchpad
16
Lights
17
Button
18
Keys
19
Bottom
20
Labels
21
3 Illustrated Parts Catalog
23
Computer Major Components
23
Miscellaneous Parts
27
Display Assembly Subcomponents
28
Mass Storage Devices
30
Plastics Kit
31
Rubber Kit
31
Sequential Part Number Listing
32
4 Removal and Replacement Procedures Preliminary Requirements
39
Tools Required
39
Service Considerations
39
Plastic Parts
39
Cables and Connectors
39
Drive Handling
40
Grounding Guidelines
40
Electrostatic Discharge Damage
40
Packaging and Transporting Guidelines
41
Workstation Guidelines
41
5 Removal and Replacement Procedures for Customer Self-Repair Parts
43
Component Replacement Procedures
43
Battery
43
Optical Drive
45
Keyboard
47
6 Removal and Replacement Procedures for Authorized Service Provider Parts
51
Component Replacement Procedures
51
Display Subcomponents (Bezel, Webcam, Panel)
51
Top Cover
55
Power Button Board
58
Touchpad Button Board
59
Hard Drive
61
WLAN Module
63
Fan
65
Power Connector Cable
67
System Board
68
USB Board
71
Speakers
72
Heat Sink Assembly
73
RTC Battery
76
Memory Module
77
Display Assembly
78
7 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) in Windows 8.1
85
Starting Setup Utility (BIOS)
85
Updating the BIOS
85
Determining the BIOS Version
85
Downloading a BIOS Update
86
Using HP PC Hardware Diagnostics (UEFI)
86
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
87
8 Computer Setup (BIOS) and Advanced System Diagnostics in SUSE Linux
89
Starting Computer Setup
89
Using Computer Setup
89
Navigating and Selecting in Computer Setup
89
Restoring Factory Settings in Computer Setup
90
Updating the BIOS
90
Determining the BIOS Version
90
Downloading a BIOS Update
91
Using HP PC Hardware Diagnostics (UEFI)
91
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
92
9 Specifications
93
Computer Specifications
93
39.6-CM (15.6-In) Display Specifications
94
Hard Drive Specifications
95
DVD±RW Supermulti DL Drive Specifications
96
10 Backing Up, Restoring, and Recovering in Windows 8.1
97
Creating Recovery Media and Backups
97
Creating HP Recovery Media
97
Restore and Recovery
98
Recovering Using HP Recovery Manager
99
What You Need to Know
99
Using the HP Recovery Partition (Select Models Only)
99
Using HP Recovery Media to Recover
100
Changing the Computer Boot Order
100
Removing the HP Recovery Partition (Select Models Only)
100
11 Backup and Recovery in SUSE Linux
101
Backing up Your Information
101
Performing a System Recovery
101
12 Statement of Volatility
103
Non-Volatile Memory Usage
105
Questions and Answers
107
13 Power Cord Set Requirements
109
Requirements for All Countries
109
Requirements for Specific Countries and Regions
110
14 Recycling
113
Battery
113
Display
113
Index
