HP 250 G2

To Next Page

To Previous Page

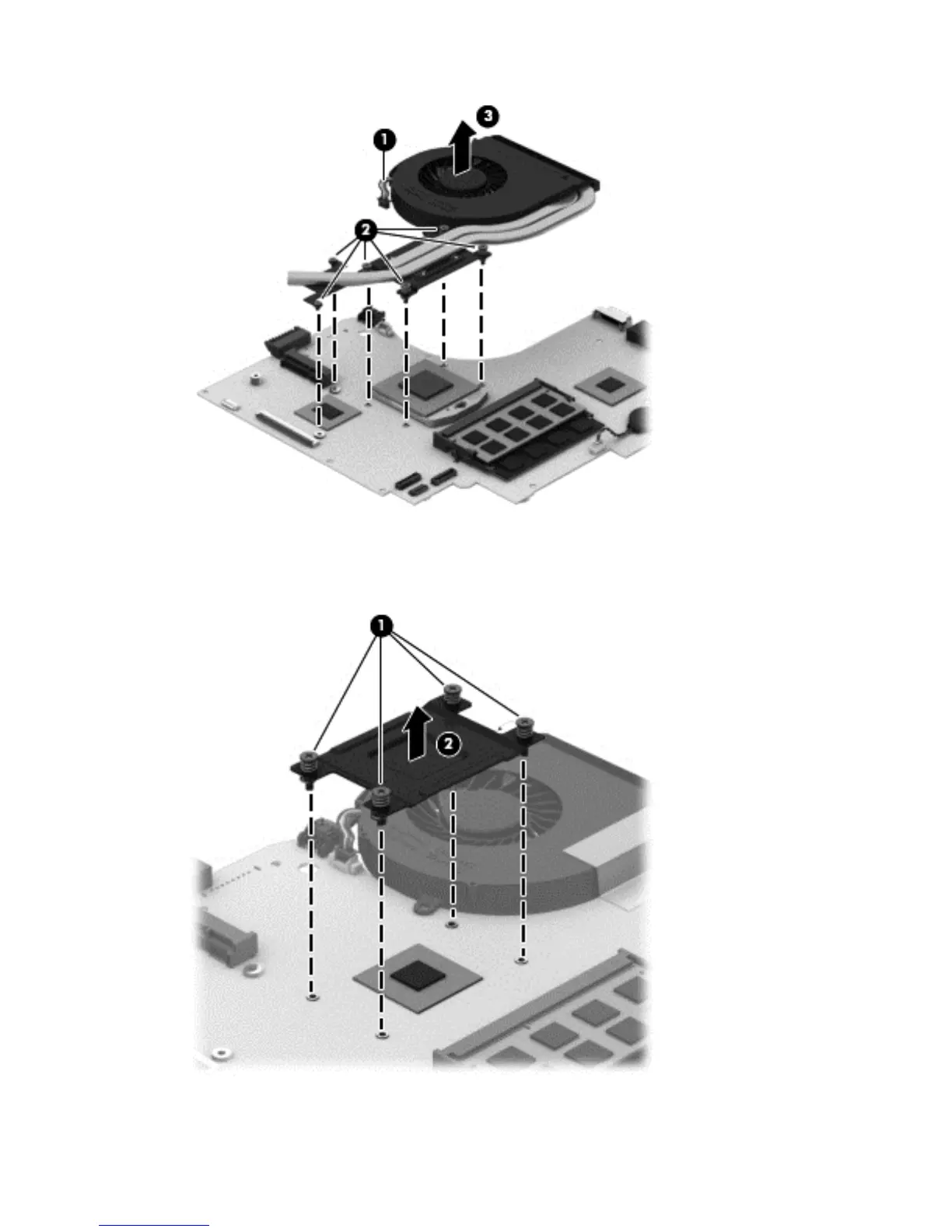

Remove the heat sink:

a. Loosen the four Phillips screws that secure the heat sink to the system board (1).

b. Remove the heat sink (2) from the system board.

AMD processor and discrete graphics

90 Chapter 4 Removal and replacement procedures
