HP 3000 Series Installation And Service Manual

Installation
e.
PCA P /N 30380-60033
\
(]/)
Cable P/N 30380-60034
Cable P /N 30380-60035
\HP 30311A
\ Power Supply
Existing Cable (moved from J2 to J7)

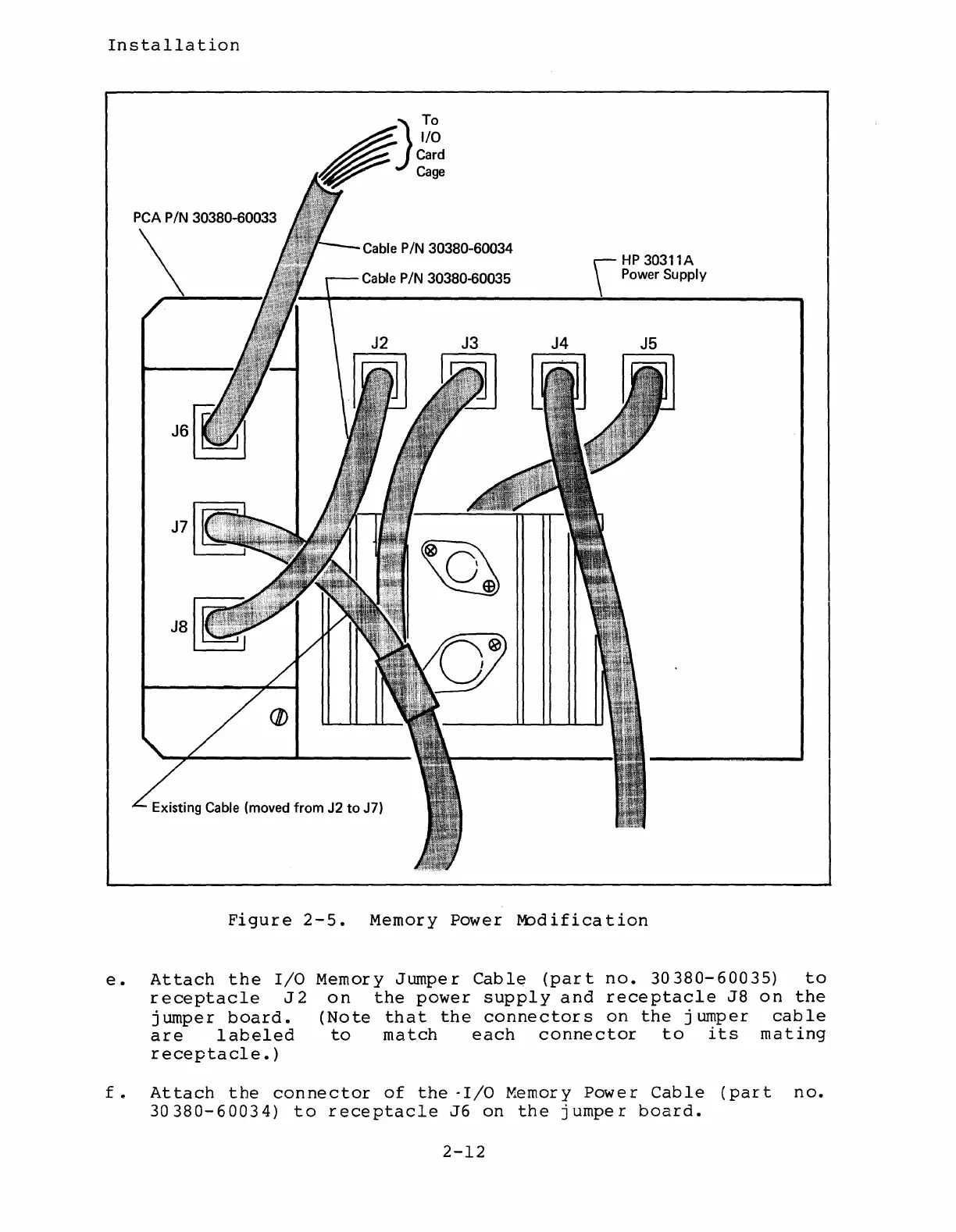

Figure 2-5. Memory Power M:>dification
Attach the I/O
receptacle J 2
j urnper board.
are labeled
receptacle.}
Memory Jumper Cable (part no. 30380-60035) to
on the power supply and receptacle J8 on the
(Note that the connectors on the j urnper cable
to match each connector to its mating
f e Attach the connector of the -I/O Memory Power Cable {part no.
30380-60034) to receptacle J6 on the jumper board.
2-12
