2.

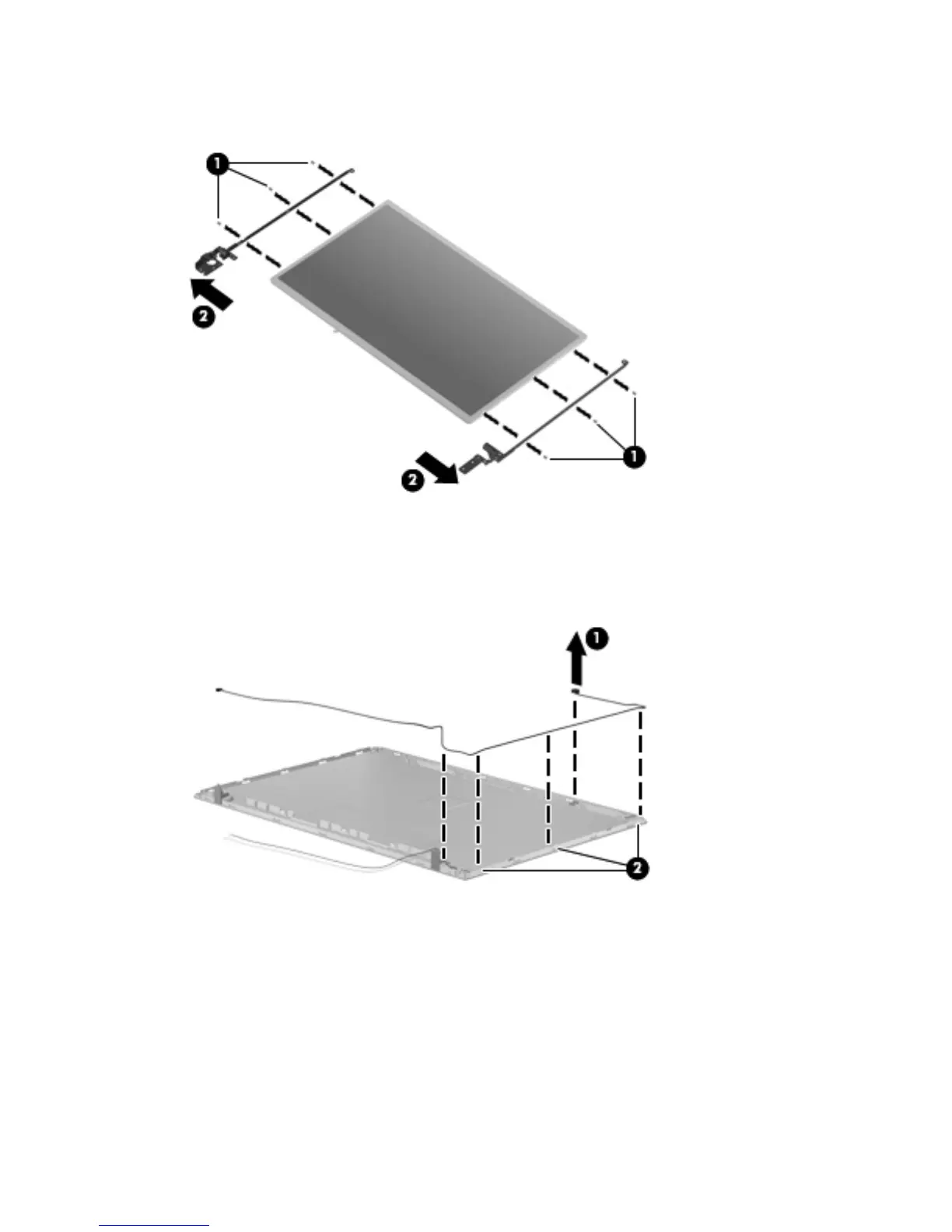

Remove the display hinges (2) by pulling them away from the display panel. The left and right
display hinges are available in the Hinge Kit, spare part number 605768-001..
Remove the microphone:
1. Pull the microphone from its socket (1) on the display enclosure.
2. Remove the microphone cable from the raceway (2) in the display enclosure.
To remove the display cable assembly:
1. Place the display panel face down on a protected soft surface and remove the clear protector (1)
that covers the cable connector on the back of the panel.
94 Chapter 4 Removal and replacement procedures
