6.

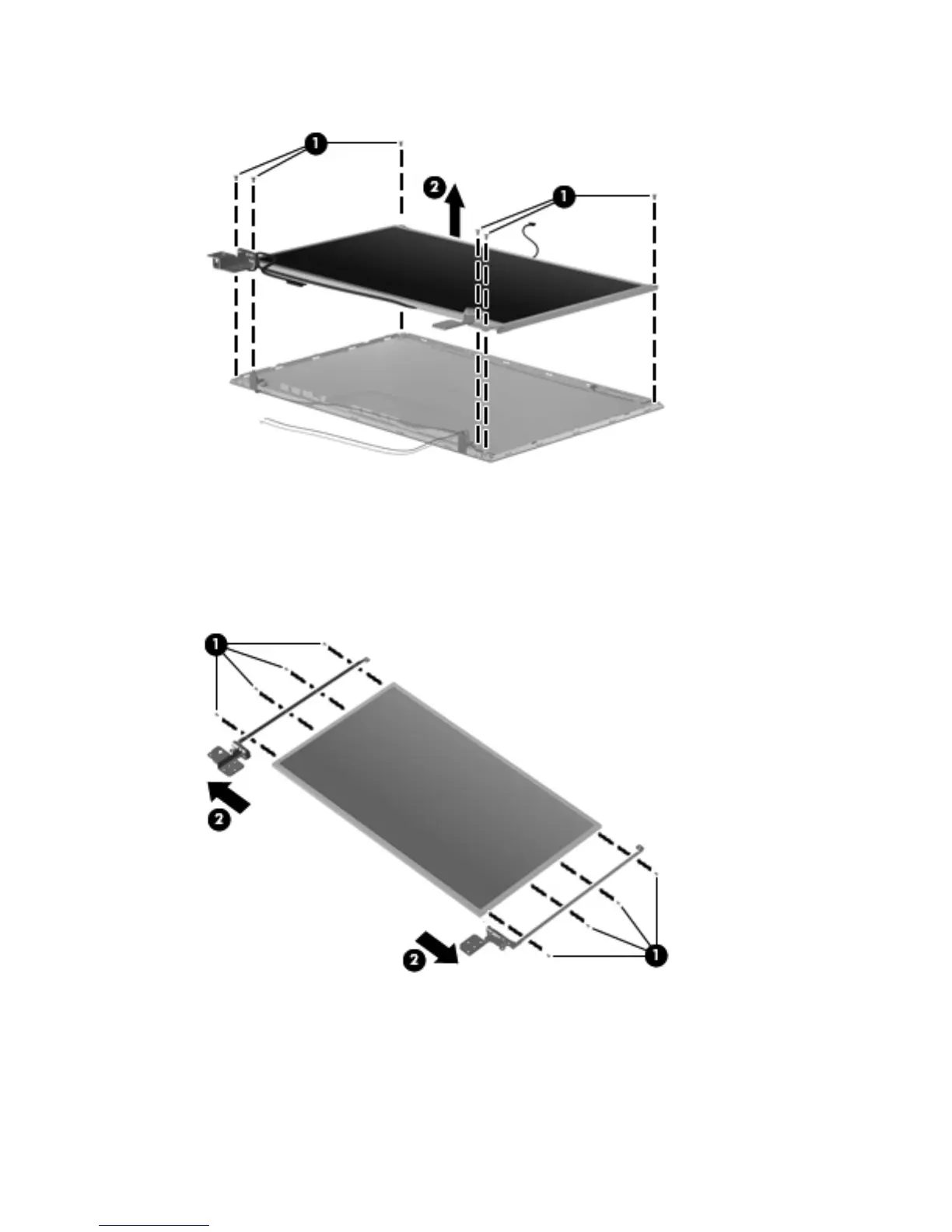

Lift the display panel up and out the housing (2).
Remove the display hinges from a 39.6-cm (15.6-in) computer:
1. Remove the eight Phillips PM2.0×3.0 screws (1) that secure the display hinges to the display
panel.
2. Remove the display hinges (2) by pulling them away from the display panel. The left and right
display hinges are available in the Hinge Kit, spare part number 605769-001.
Remove the display hinges from 35.6-cm (14.0-in) or 33.8-cm (13.3-in) computers:
1. Remove the six Phillips PM2.0×3.0 screws (1) that secure the display hinges to the display panel
Component replacement procedures
93
