5.

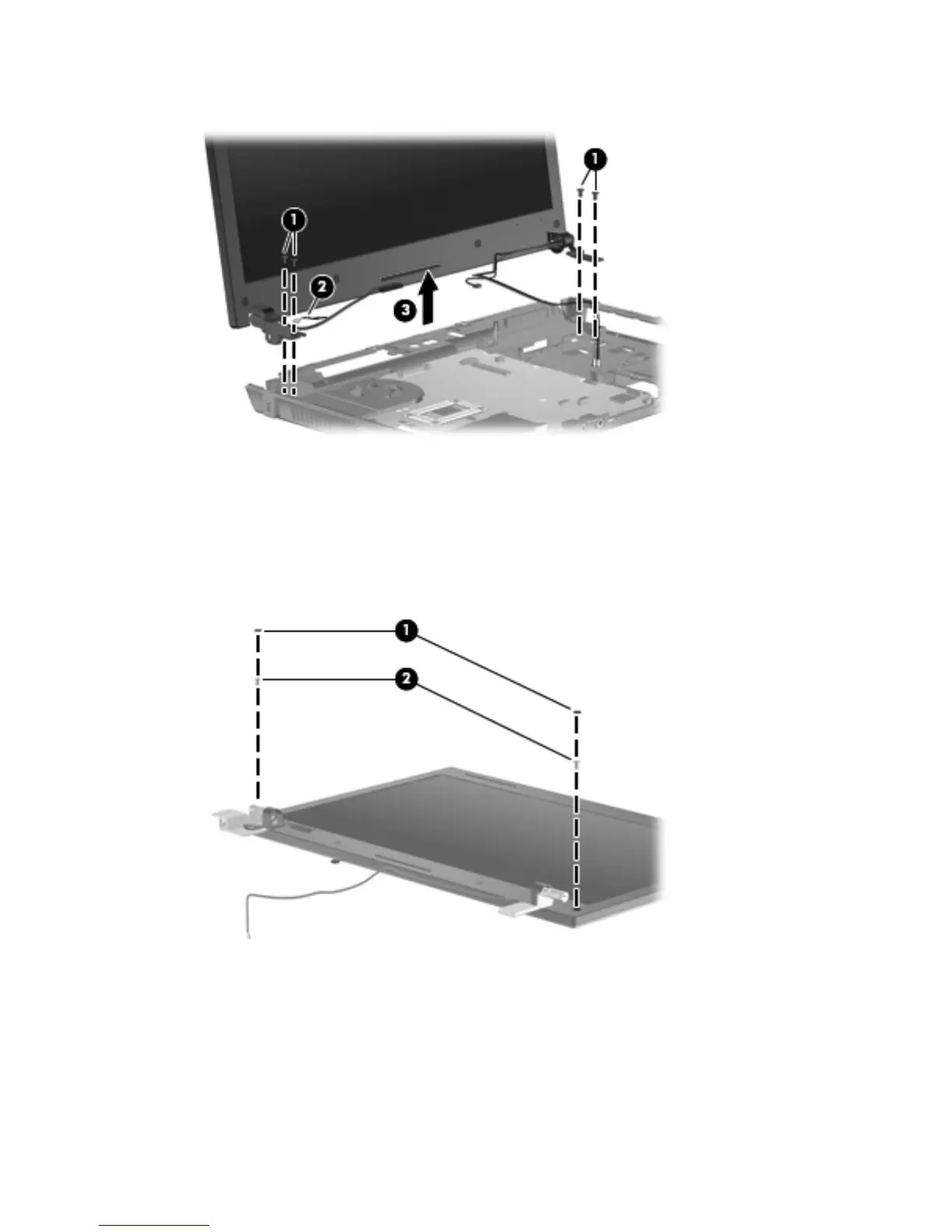

Lift the display assembly (3) from the base enclosure.
Remove the display assembly:
1. If it is necessary to replace the display bezel, display enclosure, or display hinges, remove the two
mylar screw covers (1) and the 2 Phillips PM2.5×4.0 screws (2) that secure the display bezel to
the display assembly. The screw covers for the 39.6-cm (15.6-in) computer are available in the
Rubber Kit, spare part number 608931-001, and for the 35.6-cm (14.0-in) or 33.8-cm (13.3-in)
computer are available in the Rubber Kit, spare part number 605789-001.
2. Starting at the top of the display, flex the bezel (1) and work around the periphery of the bezel
(2) and (3) to release the bezel from the display enclosure .
