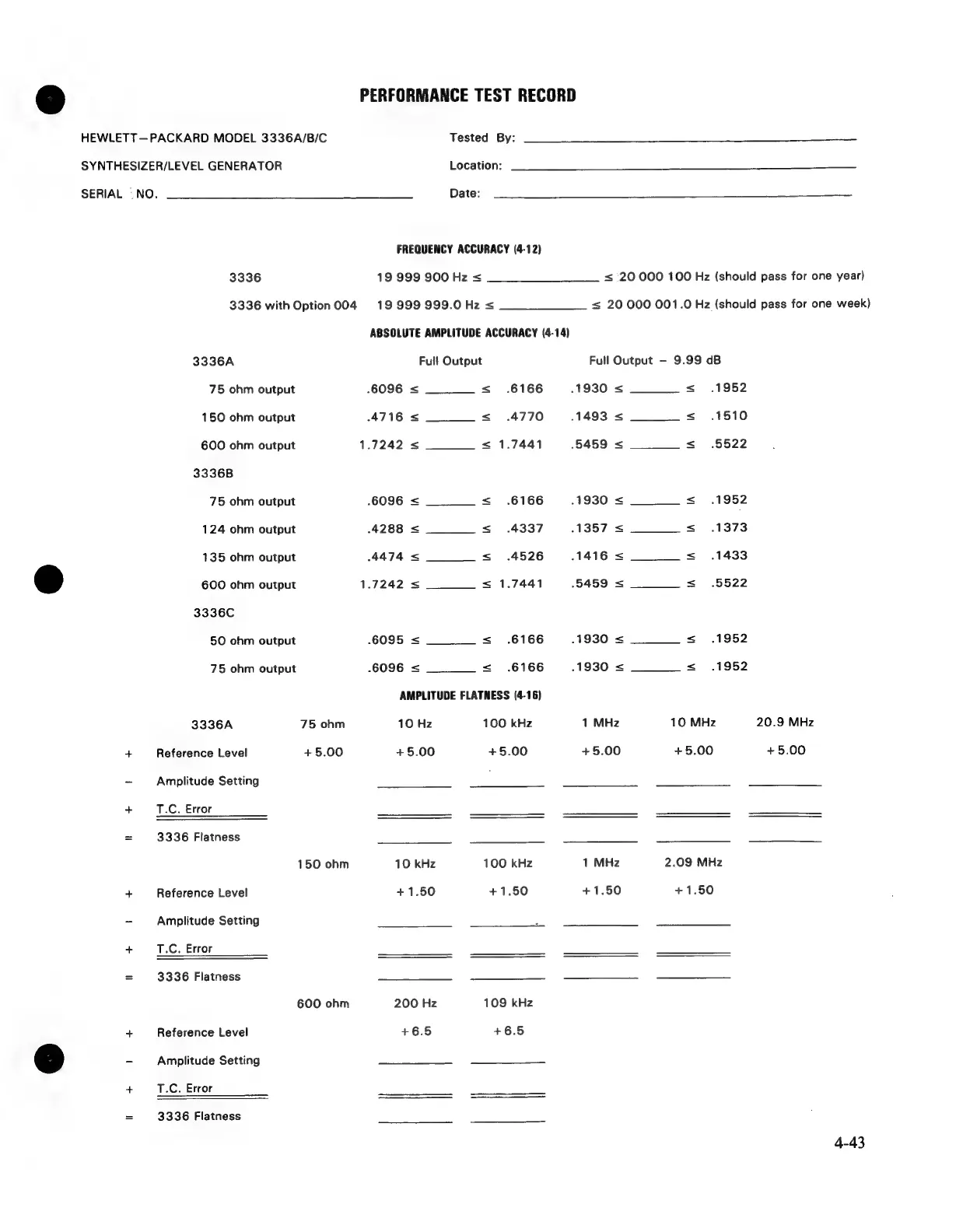

PERFORMANCE TEST RECORD
HEWLETT —PACKARD MODEL 3336A/B/C Tested By:
SYNTHESIZER/LEVEL GENERATOR Location:
SERIAL 1 NO( += = = Dates; 258 —— re
FREQUENCY ACCURACY (4-12)
3336 19999900Hz<___—COs—CSSS—S—CCPW < - 20 000 1000 Hz (should pass for one year)
3336 with Option004 19999999.0Hz<_ SC S 20 000 001.0 Hz (should pass for one week)
ABSOLUTE AMPLITUDE ACCURACY (4-14)
3336A Fult Output Full Output — 9.99 dB
75 ohm output .6096 < s .6166 .1930 < <= .1952
150 ohm output 4716 s <= .4770 .1493 < <= .1510
600 ohm output 1.7242 < < 1.7441 5459 < = .5522
3336B
75 ohm output .6096 < < .6166 .1930 < < .1952
124 ohm output .4288 < s .4337 .1357 < = .1373
135 ohm output 4474 < = .4526 .1416 < = .1433
600 ohm output 1.7242 = <= 1.7441 5459 < = .5522
3336C
50 ohm output 6095 < = .6166 .1930 < = .1952
75 ohm output -6096 < =< .6166 .1930 < < .1952
AMPLITUDE FLATNESS (4-16)
3336A 75 ohm 10 Hz 100 kHz 1 MHz 10 MHz 20.9 MHz
+
Reference
Level
+
5.00
+5.00
+5.00
+5.00
+5.00
+5.00
_ Amplitude Setting
+ T.C. Error
= 3336 Flatness
150 ohm 10 kHz 100 kHz 1 MHz 2.09 MHz
+
Reference
Level
+
1.50
+1.50
+1.50
+1.50
- Amplitude Setting
+ T.C. Error
= 3336 Flatness
600 ohm 200 Hz 109 kHz
+ Reference Level +6.5 +6.5
- Amplitude Setting
+ T.C. Error
= 3336 Flatness
4-43
