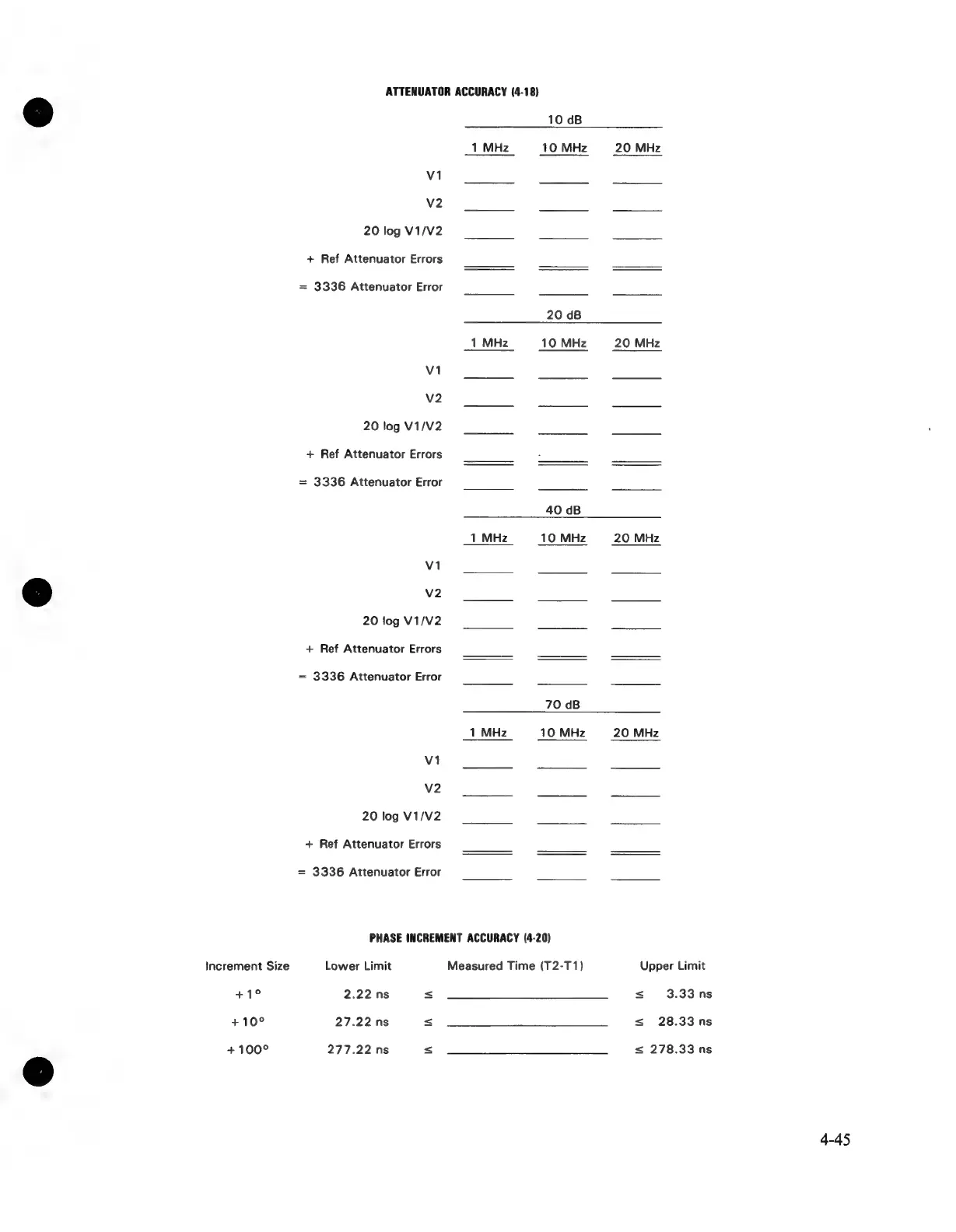

ATTENUATOR ACCURACY (4-18)
10 dB
1 MHz 10 MHz 20 MHz
v1
v2
20 log V1/V2
+ Ref Attenuator Errors
= 3336 Attenuator Error
20 dB
1 MHz 10 MHz 20 MHz
v1
V2
20 log V1/V2
+ Ref Attenuator Errors
= 3336 Attenuator Error
40 dB
1 MHz 10 MHz 20 MHz
v1
v2
20 log V1/V2
+ Ref Attenuator Errors
= 3336 Attenuator Error
70 dB
1 MHz 10 MHz 20 MHz
v1
V2
20 log V1/V2
+ Ref Attenuator Errors
= 3336 Attenuator Error
PHASE INCREMENT ACCURACY (4-20)
Increment Size Lower Limit Measured Time (T2-T1) Upper Limit
+1° 2.22 ns < s 3.33 ns
+10° 27.22 ns < s 28.33 ns
+100° 277.22 ns < < 278.33 ns
4-45
