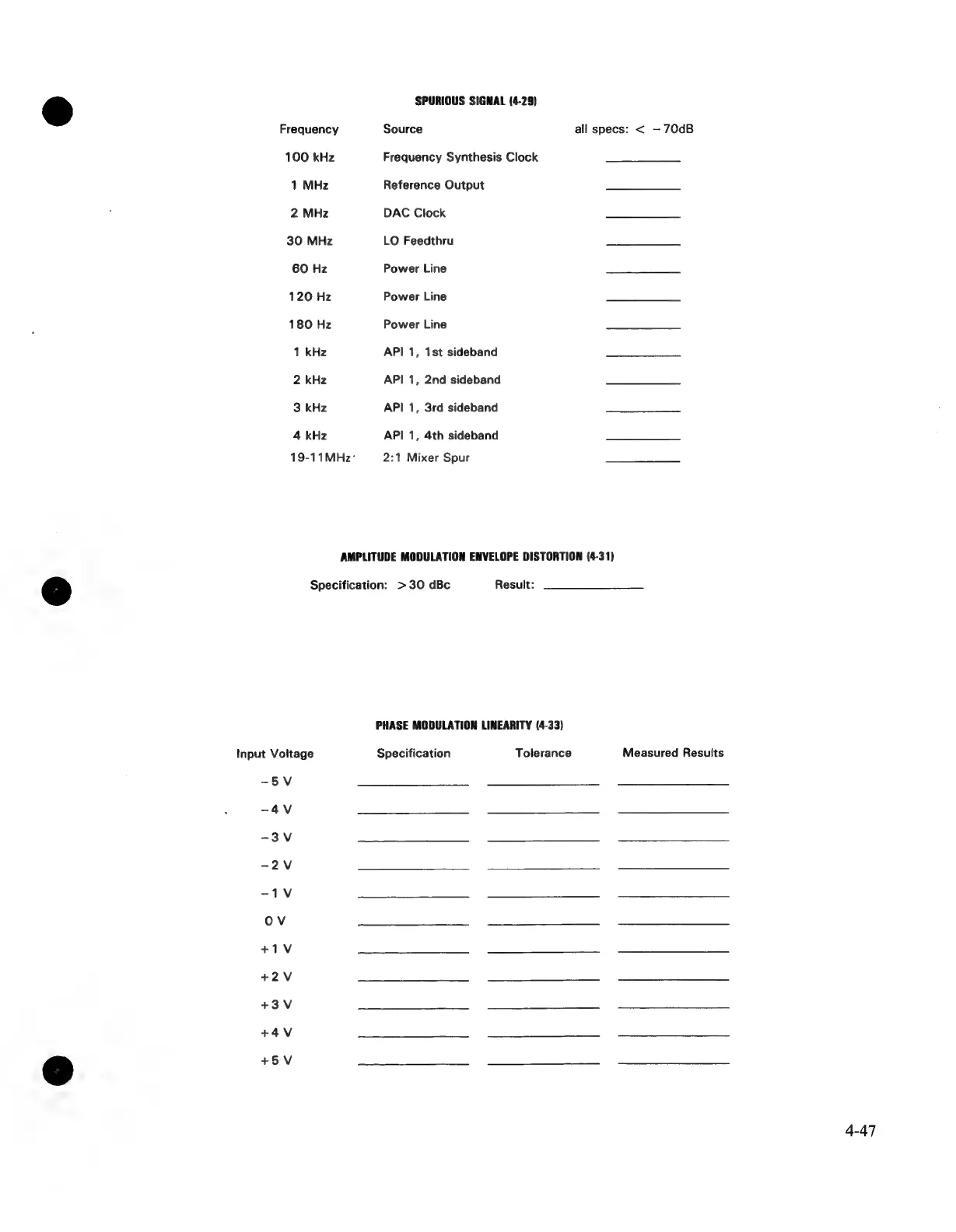

HP 3336A - Page 132

SPURIOUS SIGNAL (4-29)
Frequency Source all specs: < — 70dB
100 kHz Frequency Synthesis Clock
1 MHz Reference Output
2 MHz DAC Clock
30 MHz LO Feedthru
60 Hz Power Line
120 Hz Power Line
180 Hz Power Line
1 kHz API 1, 1st sideband
2 kHz API 1, 2nd sideband
3 kHz API 1, 3rd sideband
4 kHz API 1, 4th sideband
19-11MHz: 2:1 Mixer Spur
AMPLITUDE MODULATION ENVELOPE DISTORTION (4-31)
Specification: >30 dBc Result:
PHASE MODULATION LINEARITY (4-33)
Input Voitage Specification Tolerance Measured Results
-5V
-4V
-3V
-2V
-1V
Ov
+1V
+2V
+3V
+4V
+5V
4-47
