Appendix B

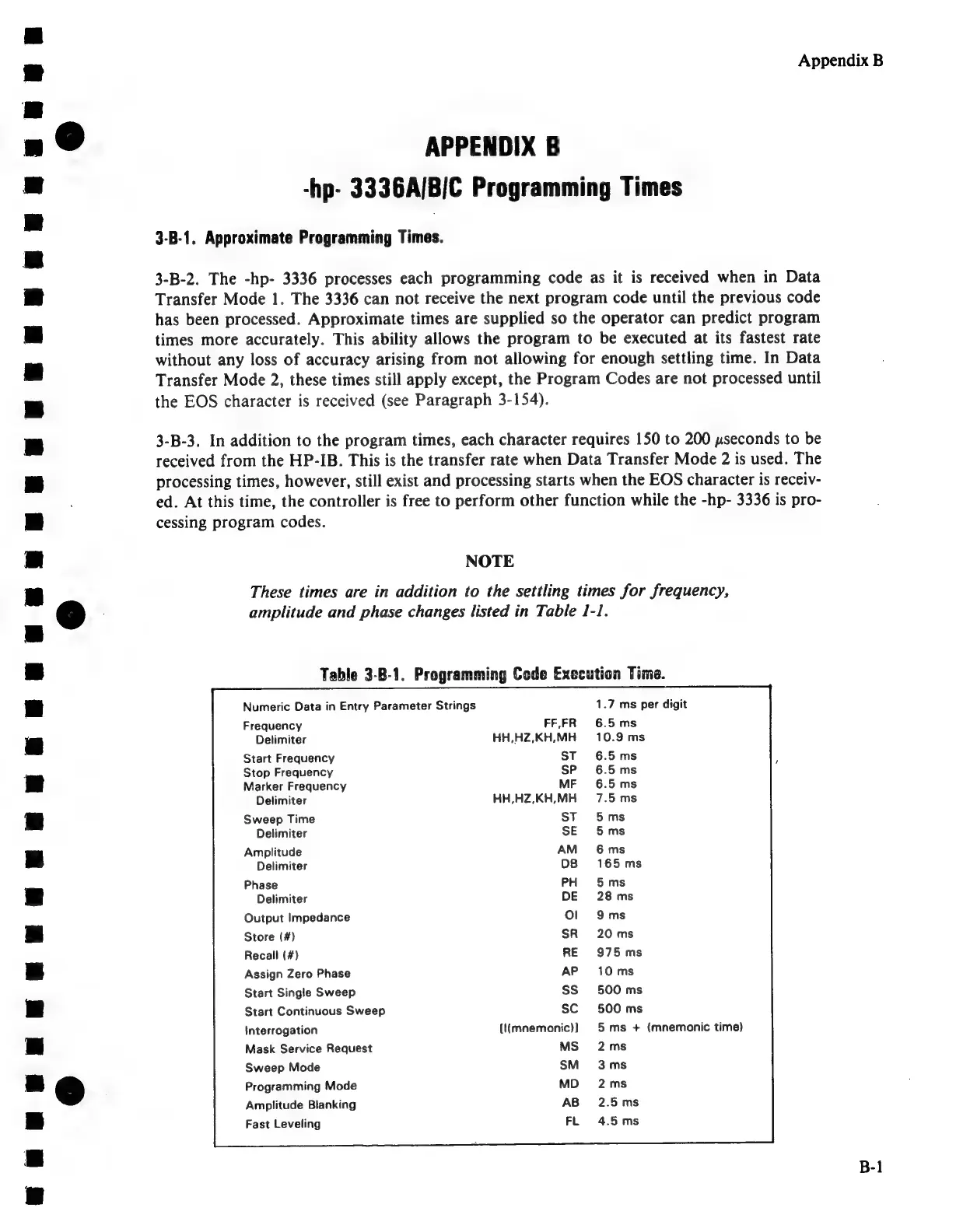

APPENDIX B
-hp- 3336A/B/C Programming Times
3-B-1. Approximate Programming Times.
3-B-2. The -hp- 3336 processes each programming code as it is received when in Data
Transfer Mode 1. The 3336 can not receive the next program code until the previous code
has been processed. Approximate times are supplied so the operator can predict program
times more accurately. This ability allows the program to be executed at its fastest rate
without any loss of accuracy arising from not allowing for enough settling time. In Data
Transfer Mode 2, these times still apply except, the Program Codes are not processed until
the
EOS
character
is
received
(see
Paragraph
3-154).
3-B-3. In addition to the program times, each character requires 150 to 200 yseconds to be
received from the HP-IB. This is the transfer rate when Data Transfer Mode 2 is used. The
processing times, however, still exist and processing starts when the EOS character is receiv-
ed. At this time, the controller is free to perform other function while the -hp- 3336 is pro-
cessing program codes.
NOTE
These times are in addition to the settling times for frequency,
amplitude and phase changes listed in Table 1-1.
Table 3-B-1. Programming Code Execution Time.
Numeric
Data
in
Entry
Parameter
Strings
1.7
ms
per
digit
Frequency
FF,FR
6.5
ms
Delimiter
HH,HZ,KH,MH
10.9
ms
Start
Frequency
6.5
ms
;
Stop
Frequency
6.5
ms
Marker
Frequency
6.5
ms
Delimiter
HH,HZ,KH,MH
7.5
ms
Sweep
Time
ST
5ms
Delimiter
SE
5ms
Amplitude
AM
6ms
Delimiter
DB
165ms
Phase
PH
5ms
Delimiter
DE
28ms
Output Impedance Ol 9ms
Store
(#)
SR
20ms
Recall
(#)
RE
975
ms
Assign
Zero
Phase
AP
10ms
Start
Single
Sweep
SS
500
ms
Start
Continuous
Sweep
sc
500
ms
interrogation
Mask Service Request
Sweep Mode
Programming Mode
Amplitude Blanking
Fast Leveling
(K{mnemonic)]
MS
SM
MD
AB
FL
5 ms + (mnemonic time)
2 ms
3 ms
2 ms
2.5 ms
4.5 ms
