Model 3336A/B/C
Performance Tests

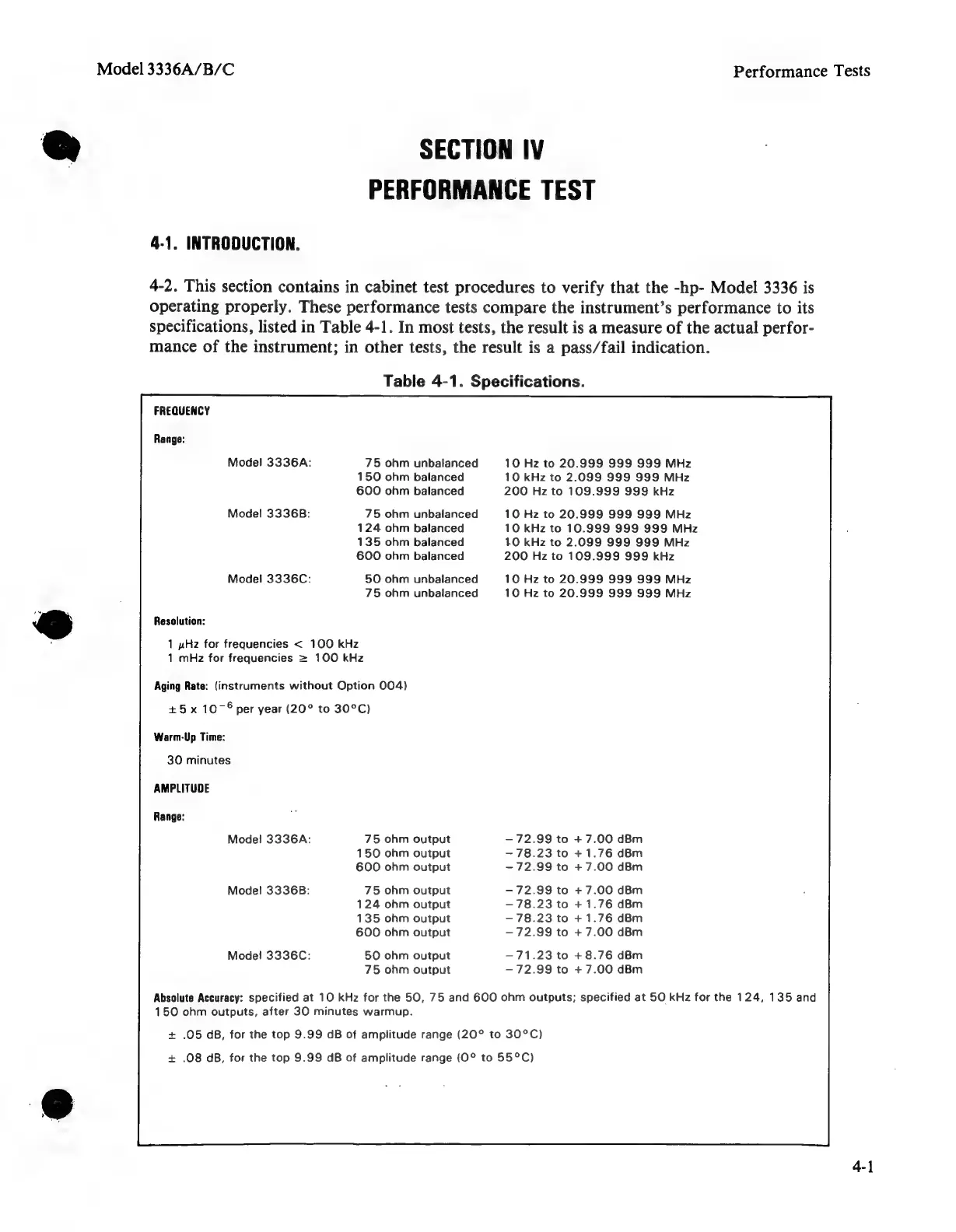

@ SECTION IV
PERFORMANCE TEST
4-1. INTRODUCTION.
4-2. This section contains in cabinet test procedures to verify that the -hp- Model 3336 is
operating properly. These performance tests compare the instrument’s performance to its
specifications, listed in Table 4-1. In most tests, the result is a measure of the actual perfor-
mance of the instrument; in other tests, the result is a pass/fail indication.
Table 4-1. Specifications.
FREQUENCY
Model 3336A: 75 ohm unbalanced
150 ohm balanced
600 ohm balanced
Model 3336B: 75 ohm unbalanced
124 ohm balanced
135 ohm balanced
600 ohm balanced
Model 3336C: 50 ohm unbalanced
75 ohm unbalanced
@ Resolution:
1 pHz for frequencies < 100 kHz
1 mHz for frequencies = 100 kHz
Aging Rate: (instruments without Option 004)
+5 x 1075 per year (20° to 30°C)
Warm-Up Time:
30 minutes
AMPLITUDE
Model 3336A: 75 ohm output
150 ohm output
600 ohm output
Model 3336B: 75 ohm output
124 ohm output
135 ohm output
600 ohm output
Model 3336C: 50 ohm output
75 ohm output
10 Hz to 20.999 999 999 MHz
10 kHz to 2.099 999 999 MHz
200 Hz to 109.999 999 kHz
10 Hz to 20.999 999 999 MHz
10 kHz to 10.999 999 999 MHz
10 kHz to 2.099 999 999 MHz
200 Hz to 109.999 999 kHz
10 Hz to 20.999 999 999 MHz
10 Hz to 20.999 999 999 MHz
— 72.99 to + 7.00 dBm
-— 78.23 to + 1.76 dBm
-— 72.99 to + 7.00 dBm
-72.99 to +7.00 dBm
— 78.23 to +1.76 dBm
— 78.23 to +1.76 dBm
—72.99 to + 7.00 dBm
— 71.23 to + 8.76 dBm
— 72.99 to + 7.00 dBm
Absolute Accuracy: specified at 10 kHz for the 50, 75 and 600 ohm outputs; specified at 50 kHz for the 124, 135 and
150 ohm outputs, after 30 minutes warmup.
.05 dB, for the top 9.99 dB of amplitude range (20° to 30°C)
.O8 dB, for the top 9.99 dB of amplitude range (0° to 55°C)
