Model 3336A/B/C Performance Tests

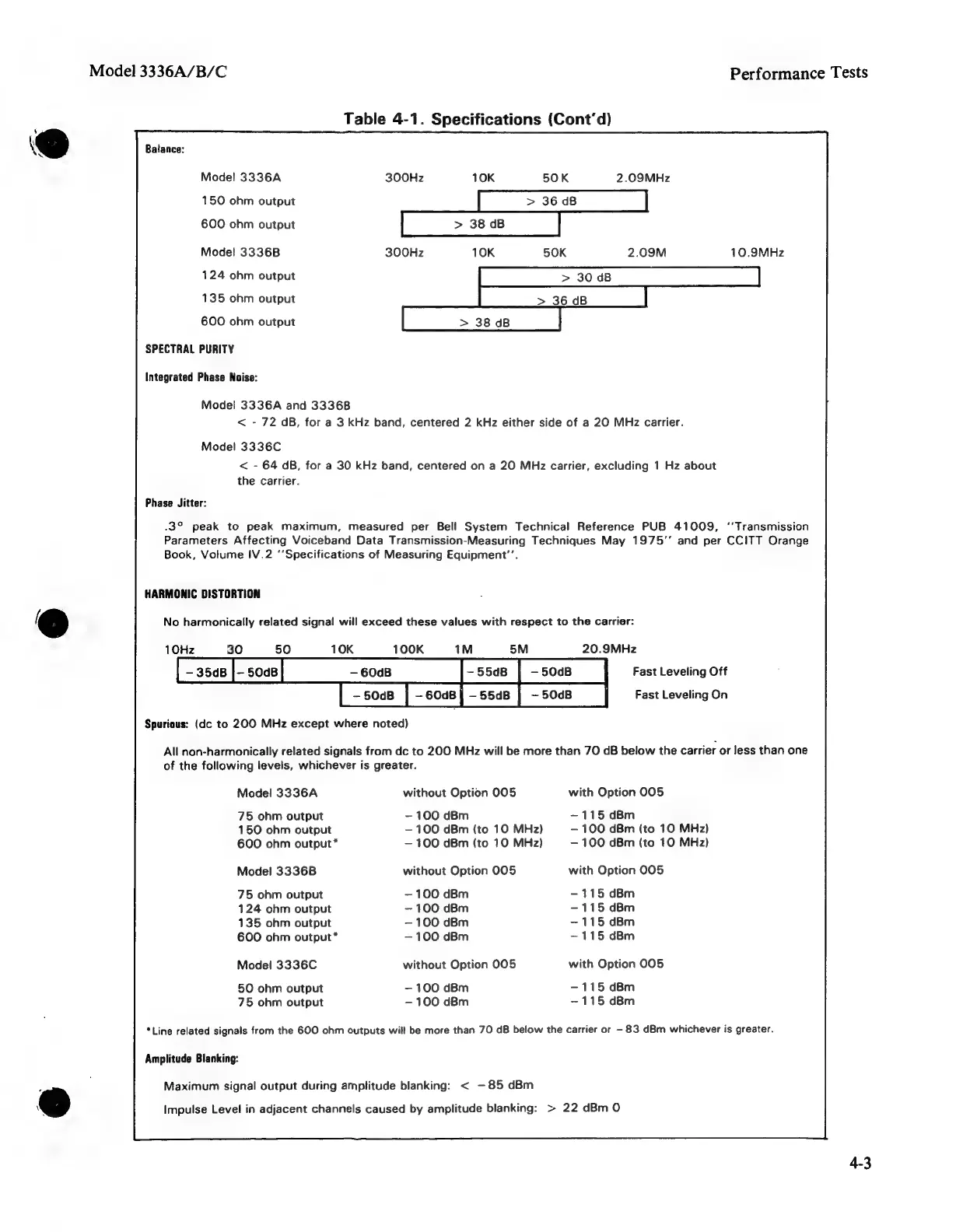

Table 4-1. Specifications (Cont'd)
Balance:
Model 3336A 300Hz 10K 50K 2.09MHz
150 ohm output > 36 dB
600 ohm output > 38 dB
Model 3336B 300Hz 10K 50K
124 ohm output
135 ohm output
600 ohm output
SPECTRAL PURITY
Integrated Phase Noise:
Model 3336A and 3336B
< - 72 dB, for a 3 kHz band, centered 2 kHz either side of a 20 MHz carrier.
Model 3336C
< - 64 dB, for a 30 kHz band, centered on a 20 MHz carrier, excluding 1 Hz about
the carrier.
Phase Jitter:
.3° peak to peak maximum, measured per Bell System Technical Reference PUB 41009, ‘‘Transmission
Parameters Affecting Voiceband Data Transmission-Measuring Techniques May 1975" and per CCITT Orange
Book, Volume IV.2 ‘‘Specifications of Measuring Equipment’’.
HARMONIC DISTORTION
No harmonically related signa! will exceed these values with respect to the carrier:
10Hz 3 10K 100K 1M 5M 20.9MHz
0 50
—§0dB —60dB —50dB Fast Leveling Off
-50dB | -60d8|-55aB | -5008 | —_ Fast Leveling On
Spurious: (dc to 200 MHz except where noted)
All non-harmonically related signals from dc to 200 MHz will be more than 70 dB below the carrier or less than one
of the following levels, whichever is greater.
Mode! 3336A without Option 005 with Option 005
75 ohm output - 100 dBm —115 dBm
150 ohm output — 100 dBm (to 10 MHz) -— 100 dBm (to 10 MHz)
600 ohm output* — 100 dBm (to 10 MHz) — 100 dBm (to 10 MHz)
Model 33368 without Option 005 with Option 005
75 ohm output -— 100 dBm -115 dBm
124 ohm output -— 100 dBm - 115 dBm
135 ohm output -— 100 dBm -115 dBm
600 ohm output” — 100 dBm -—115 dBm
Model 3336C without Option 005 with Option 005
50 ohm output -— 100 dBm -—115 dBm
75 ohm output - 100 dBm -115 dBm
“Line related signals from the 600 ohm outputs will be more than 70 dB below the carrier or - 83 dBm whichever is greater.
Amplitude Blanking:
Maximum signal output during amplitude blanking: < — 85 dBm
Impulse Level in adjacent channels caused by amplitude blanking: > 22 dBm 0
