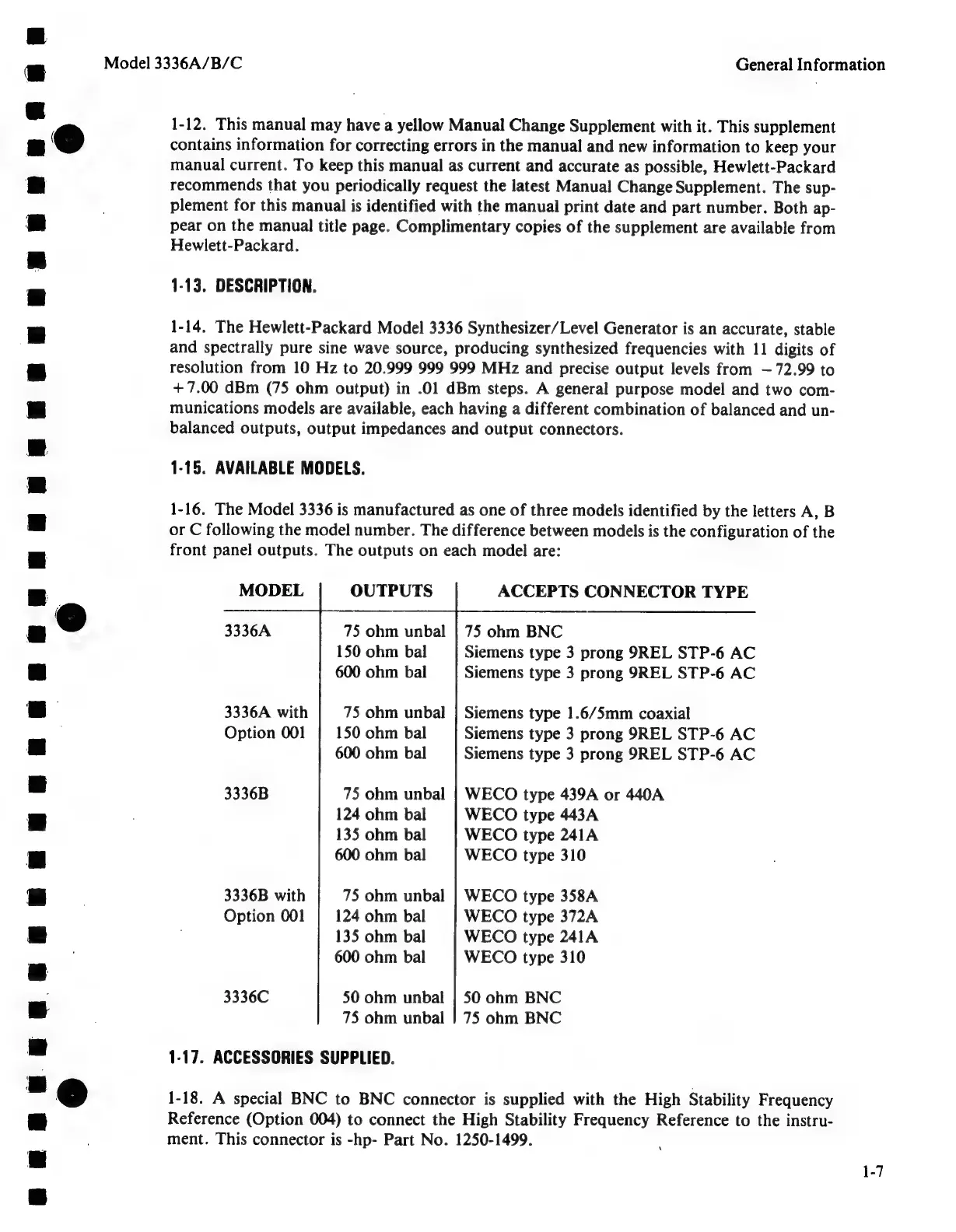

Model 3336A/B/C General Information
1-12.
This
manual
may
have
a
yellow
Manual
Change
Supplement
with
it.
This
supplement
contains
information
for correcting
errors
in
the
manual and new information
to
keep
your
manual
current.
To
keep
this
manual
as
current
and
accurate
as
possible,
Hewlett-Packard
recommends
that
you
periodically
request the
latest
Manual Change
Supplement.
The
sup-
plement
for
this
manual
is
identified
with
the
manual
print
date
and
part
number.
Both
ap-
pear on
the
manual
title page.
Complimentary
copies
of
the
supplement
are
available
from
Hewlett-Packard.
@
1-13. DESCRIPTION.
1-14.
The
Hewlett-Packard
Model
3336
Synthesizer/Level
Generator
is
an
accurate,
stable
and
spectrally
pure
sine
wave
source,
producing
synthesized
frequencies
with
11
digits
of
resolution
from
10
Hz
to
20.999 999
999 MHz
and
precise output
levels
from —
72.99 to
+7.00
dBm
(75
ohm
output)
in
.01 dBm
steps.
A
general purpose
model
and two com-
munications
models
are
available,
each
having
a different
combination
of balanced
and un-
balanced
outputs,
output impedances
and
output
connectors.
1-15. AVAILABLE MODELS.
1-16. The Model 3336 is manufactured as one of three models identified by the letters A, B
or C following the model number. The difference between models is the configuration of the
front panel outputs. The outputs on each model are:
1-17. ACCESSORIES SUPPLIED.
MODEL OUTPUTS ACCEPTS CONNECTOR TYPE
e oo
3336A 75 ohm unbal | 75 ohm BNC
150 ohm bal Siemens type 3 prong 9REL STP-6 AC
600 ohm bal Siemens type 3 prong 9REL STP-6 AC
3336A with 75 ohm unbal | Siemens type 1.6/5mm coaxial
Option 001 150 ohm bal Siemens type 3 prong 9REL STP-6 AC
600 ohm bal Siemens type 3 prong 9REL STP-6 AC
3336B 75 ohm unbal | WECO type 439A or 440A
124 ohm bal WECO type 443A
135 ohm bal WECO type 241A
600 ohm bal WECO type 310
3336B with 75 ohm unbal | WECO type 358A
Option 001 | 124 ohm bal WECO type 372A
135 ohm bal WECO type 241A
600 ohm bal WECO type 310
3336C 50 ohm unbal | 50 ohm BNC
75 ohm unbal | 75 ohm BNC
1-18. A special BNC to BNC connector is supplied with the High Stability Frequency
Reference (Option 004) to connect the High Stability Frequency Reference to the instru-
ment. This connector is -hp- Part No. 1250-1499.
\
