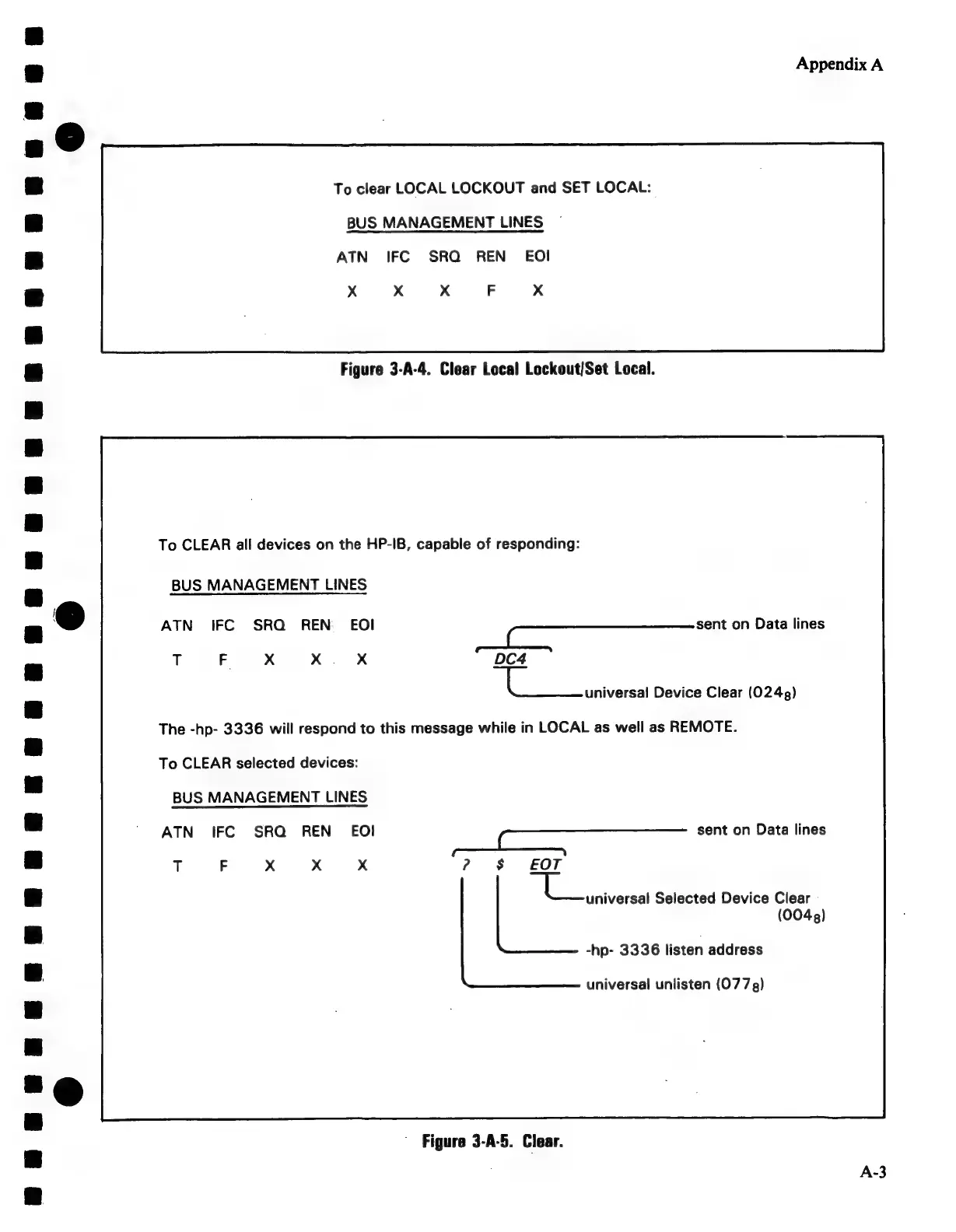

Appendix A
To clear LOCAL LOCKOUT and SET LOCAL:
BUS MANAGEMENT LINES
ATN IFC SRQ REN EOI
X Xx X F X
Figure 3-A-4. Clear Local Lockout/Set Local.
To CLEAR all devices on the HP-IB, capable of responding:
BUS MANAGEMENT LINES
ATN IFC SRQ REN _ EOI ieee eer on Data lines
T F xX xX. xX DC4
See Device Clear (024g)
The -hp- 3336 will respond to this message while in LOCAL as well as REMOTE.
To CLEAR selected devices:
BUS MANAGEMENT LINES
ATN IFC SRQ REN EOI sent on Data lines
T F x x x +”
i ne Selected Device Clear
(004g)
-hp- 3336 listen address
universal unlisten (077)
Figure 3-A-5. Clear.
