General Information
1-4
Model 3336A/B/C

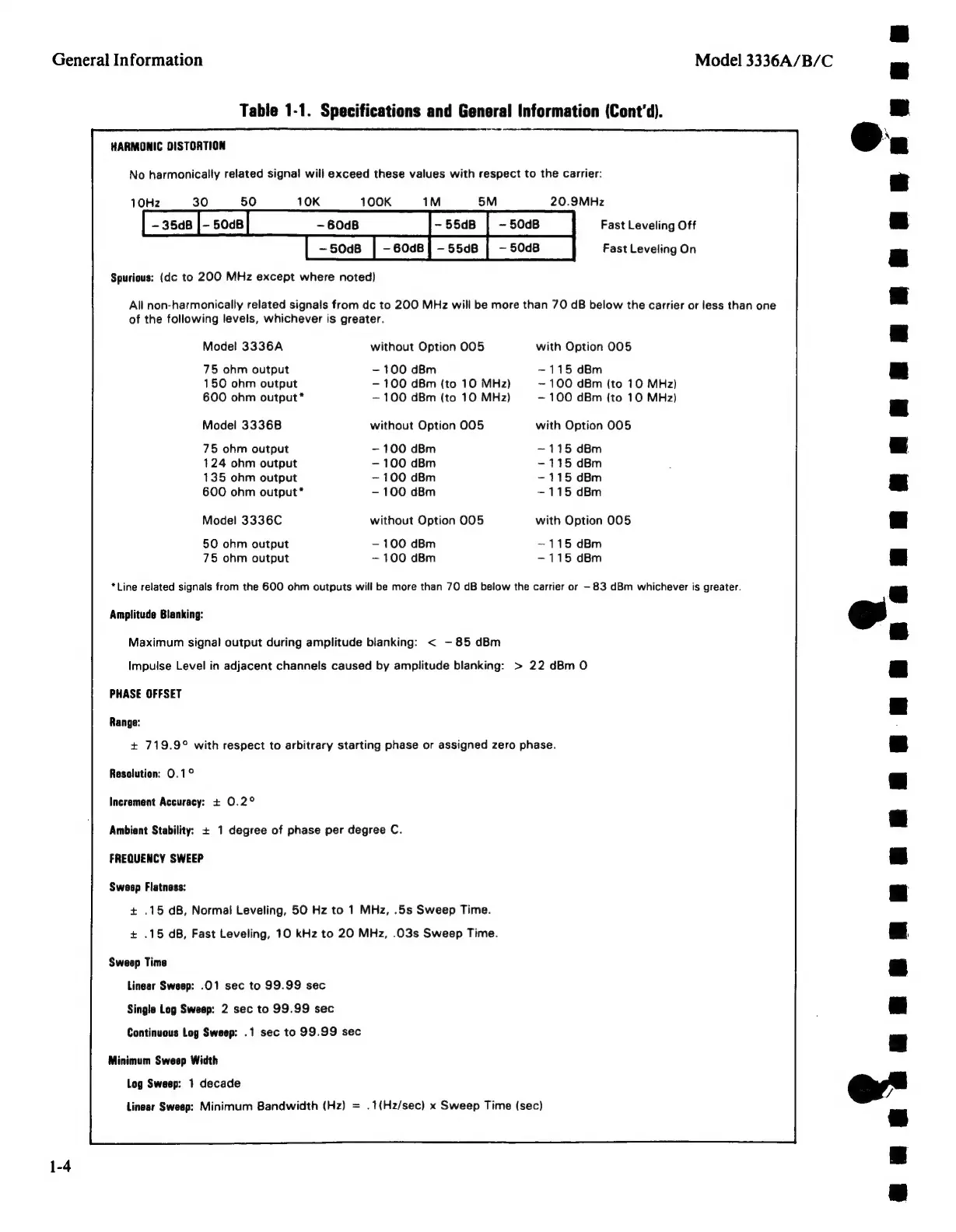

Table 1-1. Specifications and General Information (Cont'd).
HARMONIC DISTORTION
No harmonically related signal will exceed these values with respect to the carrier:
10Hz 30 50 10K 100K 1M 5M 20.9MHz
Spurious: (dc to 200 MHz except where noted)
Fast Leveling Off
Fast Leveling On
All non-harmonically related signals from dc to 200 MHz will be more than 70 dB below the carrier or less than one
of the following levels, whichever is greater.
Model 3336A without Option 005 with Option 005
75 ohm output - 100 dBm -115 dBm
150 ohm output -— 100 dBm (to 10 MHz) - 100 dBm (to 10 MHz)
600 ohm output* ~— 100 dBm (to 10 MHz) -— 100 dBm (to 10 MHz)
Model 3336B without Option 005 with Option 005
75 ohm output -— 100 dBm ~115 dBm
124 ohm output - 100 dBm -— 115 dBm
135 ohm output -— 100 dBm -115 dBm
600 ohm output* - 100 dBm -—~115 dBm
Model 3336C without Option 005 with Option 005
50 ohm output - 100 dBm -—~115 dBm
75 ohm output -— 100 dBm -—115 dBm
*Line related signals from the 600 ohm outputs will be more than 70 dB below the carrier or - 83 dBm whichever is greater.
Amplitude Blanking:
Maximum signal output during amplitude blanking: < —85 dBm
Impulse Level in adjacent channels caused by amplitude blanking: > 22 dBm 0
PHASE OFFSET
Range:
+ 719.9° with respect to arbitrary starting phase or assigned zero phase.
Resolution: 0.1°
Increment Accuracy: + 0.2°
Ambient Stability; + 1 degree of phase per degree C.
FREQUENCY SWEEP
Swesp Flatness:
+ .15 dB, Normal Leveling, 50 Hz to 1 MHz, .5s Sweep Time.
+ .15 dB, Fast Leveling, 10 kHz to 20 MHz, .03s Sweep Time.
Sweep Time
Linear Sweep: .01 sec to 99.99 sec
Single Log Sweep: 2 sec to 99.99 sec
Continuous Log Sweep: .1 sec to 99.99 sec
Minimum Sweep Width
log Sweep: 1 decade
Linear Sweep: Minimum Bandwidth (Hz) = .1(Hz/sec) x Sweep Time (sec)
