HP 339A - Meter Circuits and Oscillator Amplitude Control

Section
VIII
Model 339A

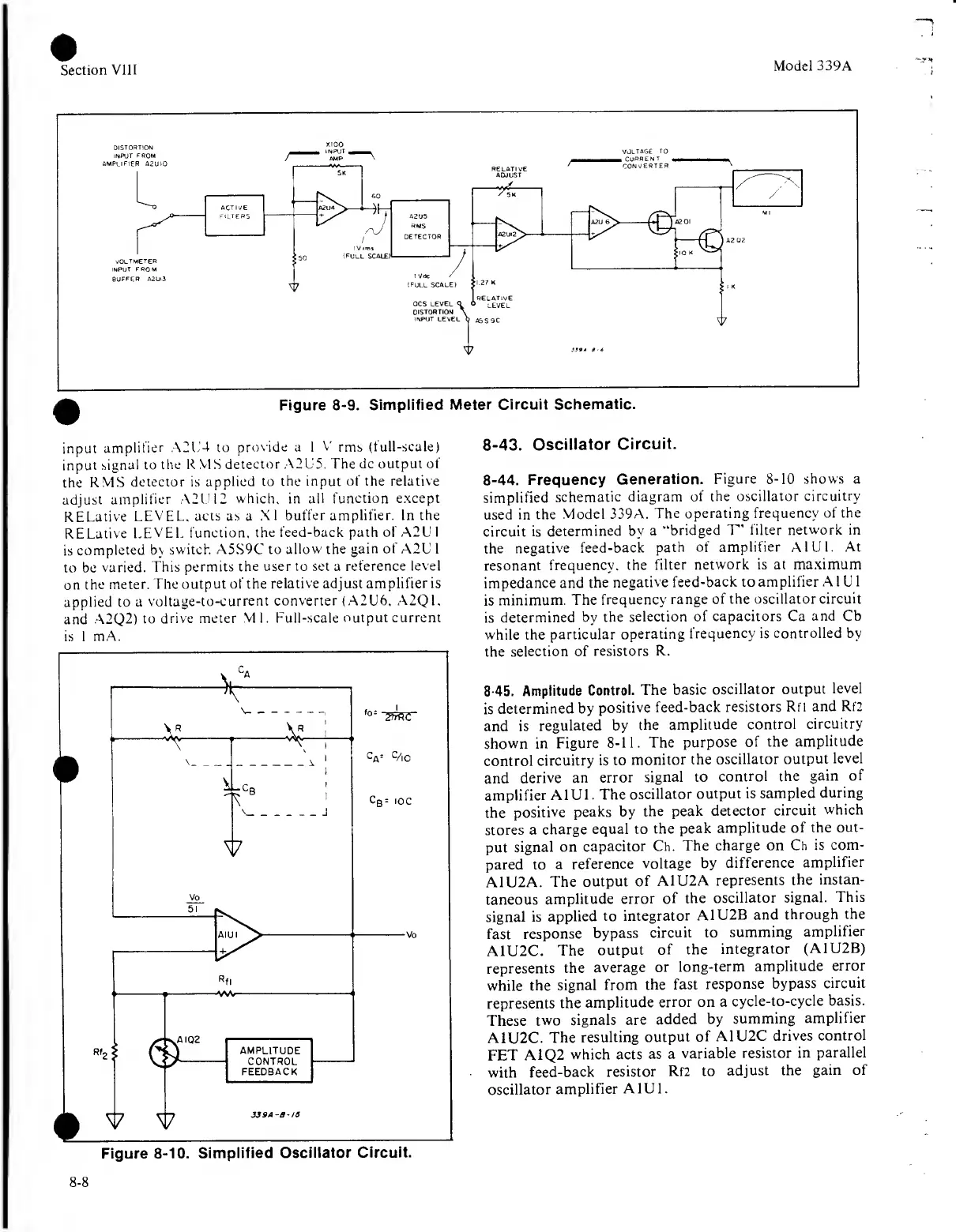

Figure
8-9.
Simplified
Meter Circuit
Schematic.
input
amplifier
A2L4
to
provide a
1
V
rms
(full-scale)
input
signal to
the
R
MS
detector A2U5.
The
dc
output of
the
RV1S
detector
is
applied to the
input
of
the
relative
adjust
amplifier A2UI2
which, in all
function
except
RELative
LEVEL,
acts as
a
XI buffer amplifier.
In the
RELative
LEVEL function,
the feed-back
path
of A2U
1
is
completed by
switch
A5S9C to
allow the gain of A2U
I
to be varied.
This
permits
the user to set a
reference
level
on
the meter. The
output of
the relative
adjust amplifier is
applied to a
voltage-to-current
converter (A2U6. A2QI.
and
A2Q2)
to
drive meter
VI I. Full-scale
output
current
is I
mA.
8-43. Oscillator
Circuit.
8-44.
Frequency
Generation.
Figure
8-10
shows
a
simplified
schematic
diagram
of the
oscillator
circuitry
used
in the
Model 339A. The
operating frequency of
the
circuit is
determined by
a
“bridged T”
filter
network in
the
negative
feed-back
path
of
amplifier A 1
U 1 . At
resonant
frequency,
the
filter network is
at maximum
impedance
and
the negative
feed-back to
amplifier A
1
U
1
is
minimum. The
frequency
range
of the oscillator
circuit
is
determined
by the
selection
of capacitors Ca
and Cb
while the
particular
operating
frequency
is
controlled by
the
selection of
resistors
R.
8-45. Amplitude
Control. The
basic
oscillator
output
level
is
determined by
positive
feed-back
resistors Rfl
and Rf2
and
is
regulated by
the
amplitude
control
circuitry
shown
in
Figure
8-11.
The
purpose
of the
amplitude
control
circuitry
is to
monitor the
oscillator
output
level
and
derive
an
error
signal to
control the
gain
of
amplifier
A 1
U 1 . The
oscillator
output is
sampled
during
the
positive
peaks by
the
peak
detector circuit
which
stores a
charge
equal to
the
peak
amplitude
of the
out-
put
signal
on
capacitor
Ch.
The
charge on
Ch is
com-
pared to
a
reference
voltage by
difference
amplifier
A1U2A.
The
output
of
A1U2A
represents
the
instan-
taneous
amplitude
error of
the
oscillator
signal.
This
signal is
applied
to
integrator
A1U2B and
through
the
fast
response
bypass
circuit to
summing
amplifier
A1U2C.
The
output
of the
integrator
(A1U2B)
represents
the
average
or
long-term
amplitude
error
while
the
signal
from
the fast
response
bypass
circuit
represents
the
amplitude
error
on a
cycle-to-cycle
basis.
These
two
signals
are
added
by
summing
amplifier
A1U2C.
The
resulting
output
of
A1U2C
drives
control
FET A1Q2
which acts as a
variable
resistor
in parallel
with
feed-back
resistor
Rf2 to
adjust the
gain
of
oscillator
amplifier
A1U1.
8-8
