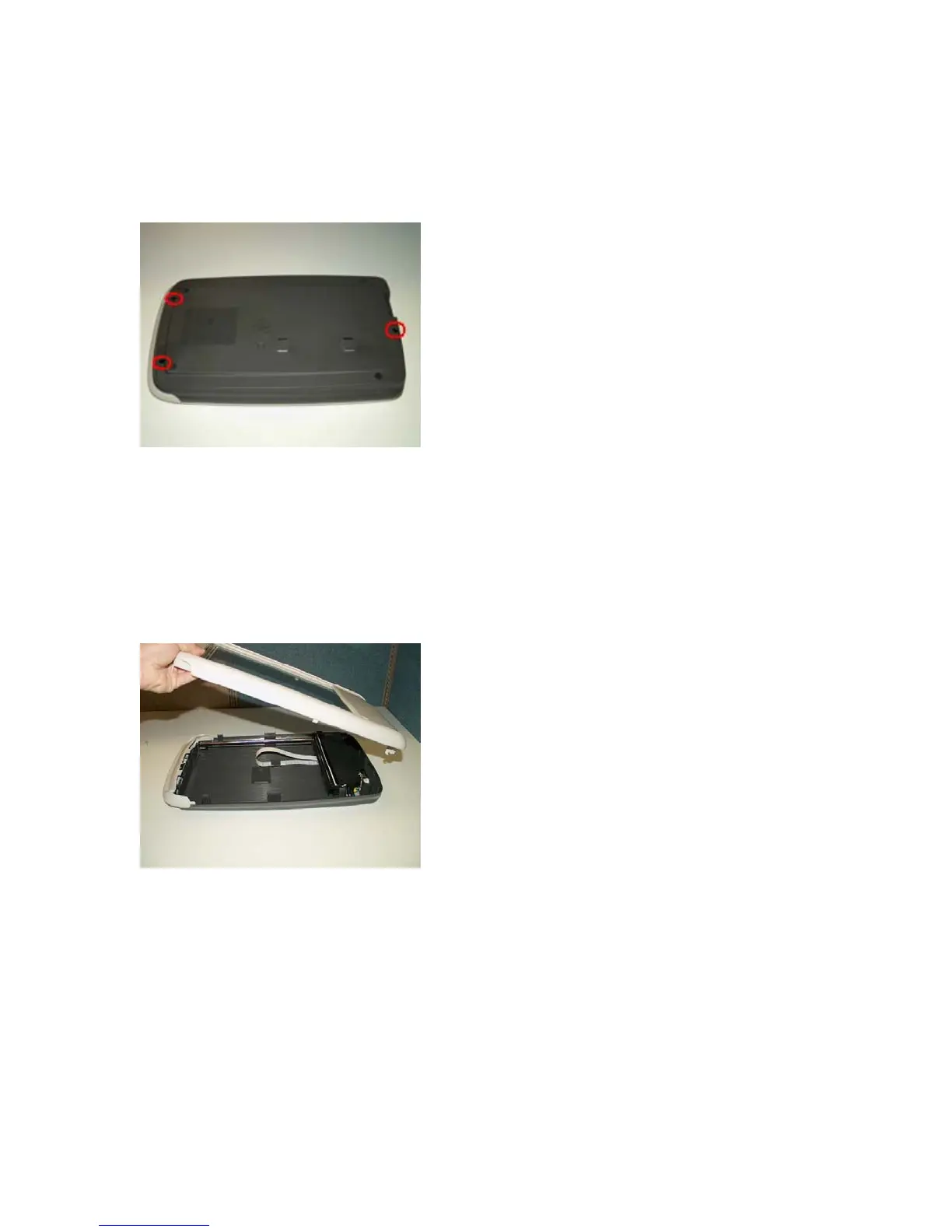

Step #3 Remove the Fastening Screws

Remove the three Phillips head screws on the

bottom. The locations shown in red

Step #4 Remove the Top Cover

Lift the front of the top cover first (front is

referred to the end where the buttons are),

then lift the cover straight up to remove as

shown. Remove the top cover and set aside

for Cleaning and re-assembly later on.
