HP 400D Organizational, Ds, Gs, And Depot Maintenance Manual

TM 11-6625-1514-15
Section VII
Group Assembly Parts List
FIG. &
H-P MFR OR MIL
DESCRIPTION
UNITS
INDEX STOCK
PART
PER
NO.
NO.
NO.
1234567
ASSY
7-4-8
0690-3341
RC32GF334K
.
RESISTOR, FIXED, COMPOSITION, . . . 1
330K ±10%, 1w (MIL-R-11)
-9 400D-75G-2
400W75G-2
.
PRINTED CIRCUIT BOARD (28480) . . . 1
-10
0140-0007 CM20B681K
.
CAPACITOR, FIXED, MICA DIELECTRIC,
1
680 pf ±10%,500 wvdc (MIL-C-5)
-11 0689-2425 RC32GE142J
.
RESISTOR, FIXED, COMPOSITION, . . . 2
2.4K ±5%, 1w (MIL-R-11)
-12 0693-2731
RC42GF273K
. RESISTOR FIXED, COMPOSITION, . . . 4
27K ±10%, 2w (MIL-R-11)
-13
0140-0025 CM15E680K
.
CAPACITOR, FIXED, MICA DIELECTRIC,
1
68 pf ±10%, 500 wvdc (MIL-C-5)
-14 9140-0040 42µH-10%- COIL, RF, 42 µh ±10% (99849) . . . . . .
1
PHENOLIC FORM “
-15 400D-75G-1 400D-75G-1
.
PRINTED CIRCUIT BOARD (28480) . . . 1

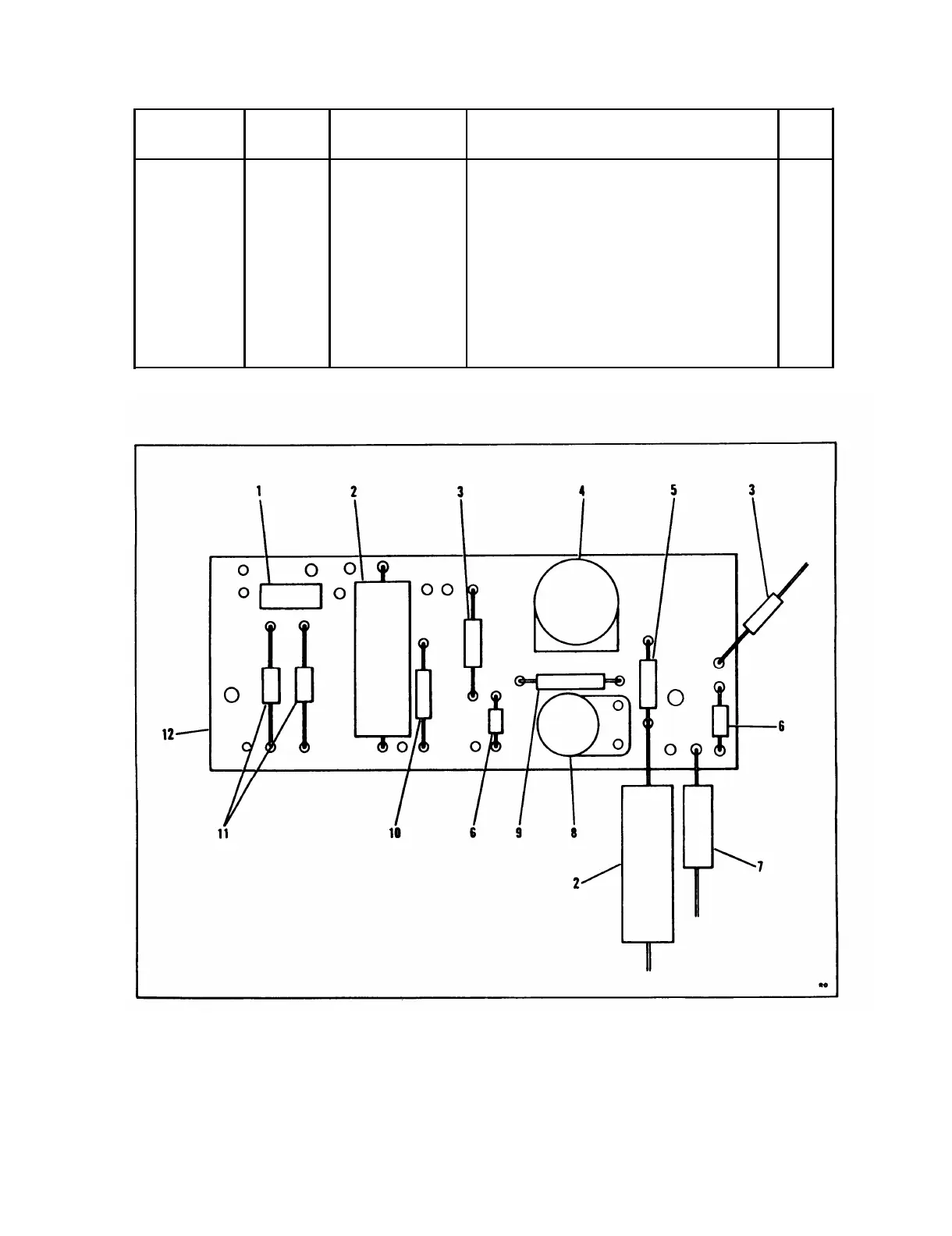

Figure 7-5. Printed Circuit Beard Assembly, Part No. 400D-75F
