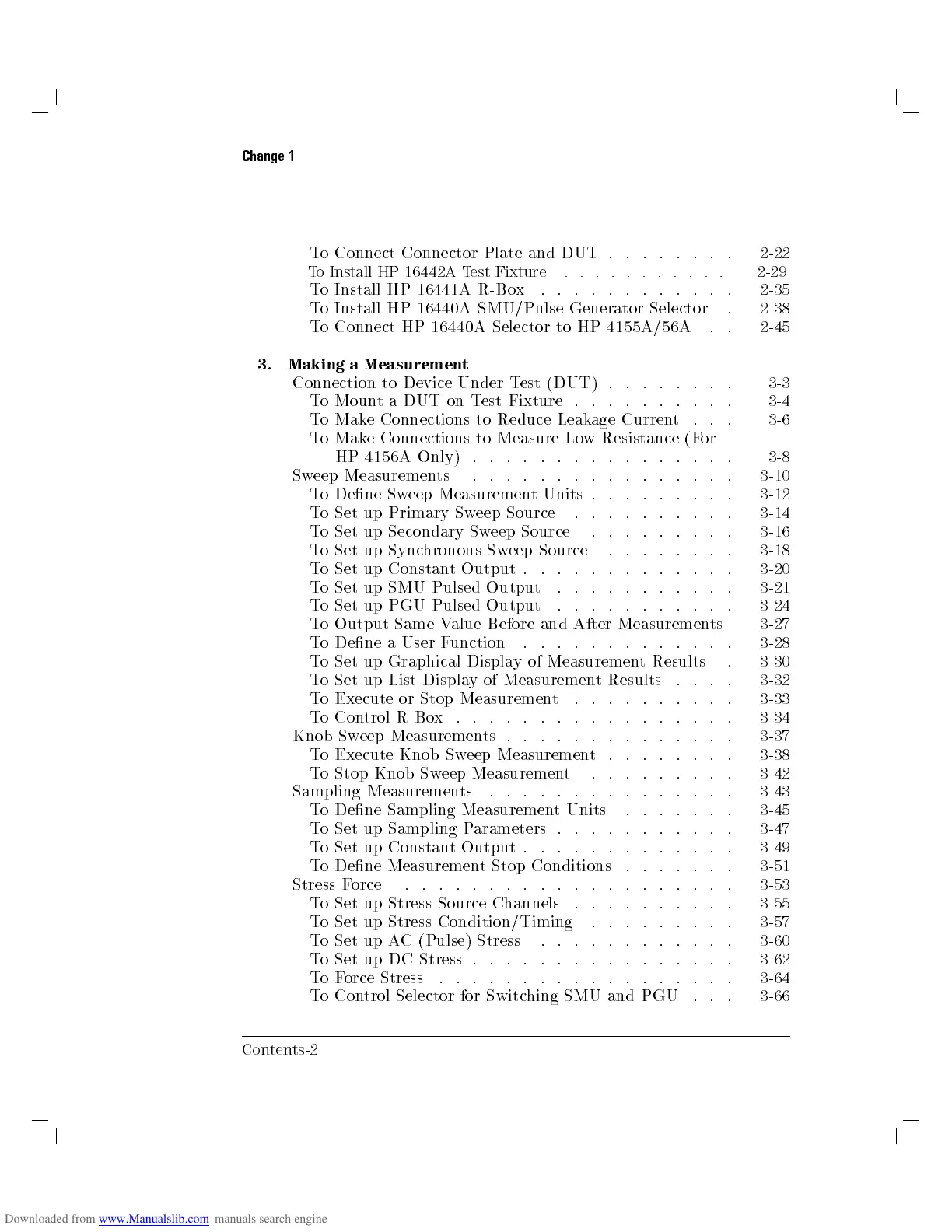

HP 4155A User Manual

Change 1
To Connect Connector Plate and DUT . . . . . . . . 2-22
To Install HP 16442A Test Fixture ........... 2-29
To Install HP 16441A R-Box . . . . . . . . . . . . 2-35
To Install HP 16440A SMU/Pulse Generator Selector . 2-38
To Connect HP 16440A Selector to HP 4155A/56A . . 2-45
3. Making a Measurement
Connection to Device Under Test (DUT) . . . . . . . . 3-3
To Mount a DUT on Test Fixture . . . . . . . . . . 3-4
To Make Connections to Reduce Leakage Current . . . 3-6
To Make Connections to Measure Low Resistance (For
HP 4156A Only) . . . . . . . . . . . . . . . . 3-8
Sweep Measurements . . . . . . . . . . . . . . . . 3-10
To Dene Sweep Measurement Units . . . . . . . . . 3-12
To Set up Primary Sweep Source . . . . . . . . . . 3-14
To Set up Secondary Sweep Source . . . . . . . . . 3-16
To Set up Synchronous Sweep Source . . . . . . . . 3-18
To Set up Constant Output . . . . . . . . . . . . . 3-20
To Set up SMU Pulsed Output . . . . . . . . . . . 3-21
To Set up PGU Pulsed Output . . . . . . . . . . . 3-24
To Output Same Value Before and After Measurements 3-27
To Dene a User Function . . . . . . . . . . . . . 3-28
To Set up Graphical Display of Measurement Results . 3-30
To Set up List Display of Measurement Results . . . . 3-32
To Execute or Stop Measurement . . . . . . . . . . 3-33
To Control R-Box . . . . . . . . . . . . . . . . . 3-34
Knob Sweep Measurements . . . . . . . . . . . . . . 3-37
To Execute Knob Sweep Measurement . . . . . . . . 3-38
To Stop Knob Sweep Measurement . . . . . . . . . 3-42
Sampling Measurements . . . . . . . . . . . . . . . 3-43
To Dene Sampling Measurement Units . . . . . . . 3-45
To Set up Sampling Parameters . . . . . . . . . . . 3-47
To Set up Constant Output . . . . . . . . . . . . . 3-49
To Dene Measurement Stop Conditions . . . . . . . 3-51
Stress Force . . . . . . . . . . . . . . . . . . . . 3-53
To Set up Stress Source Channels . . . . . . . . . . 3-55
To Set up Stress Condition/Timing . . . . . . . . . 3-57
To Set up AC (Pulse) Stress . . . . . . . . . . . . 3-60
To Set up DC Stress . . . . . . . . . . . . . . . . 3-62
ToForce Stress . . . . . . . . . . . . . . . . . . 3-64
To Control Selector for Switching SMU and PGU . . . 3-66
