HP 4155A
SMU terminals
Intlk interface
HP 4156A
SMU terminals
Intlk interface
SMU terminals Either voltage or current output is forced from the
SMU terminals, and measurement signal is put to the
SMU terminals.

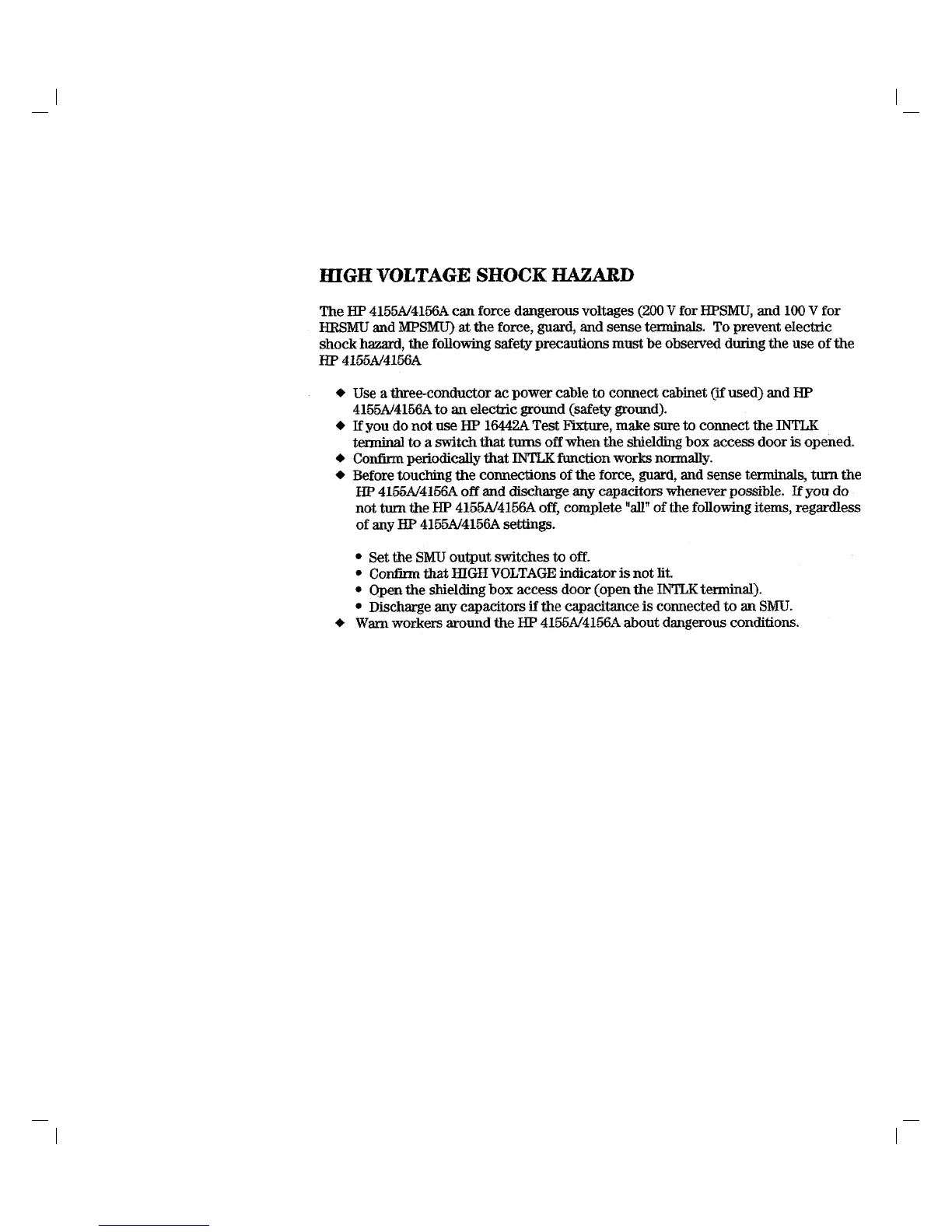

Intlk interface To prevent you from electric shock, the HP
4155A/4156A has interlock function. The signals for
the interlock function go through the Intlk interface.
5
