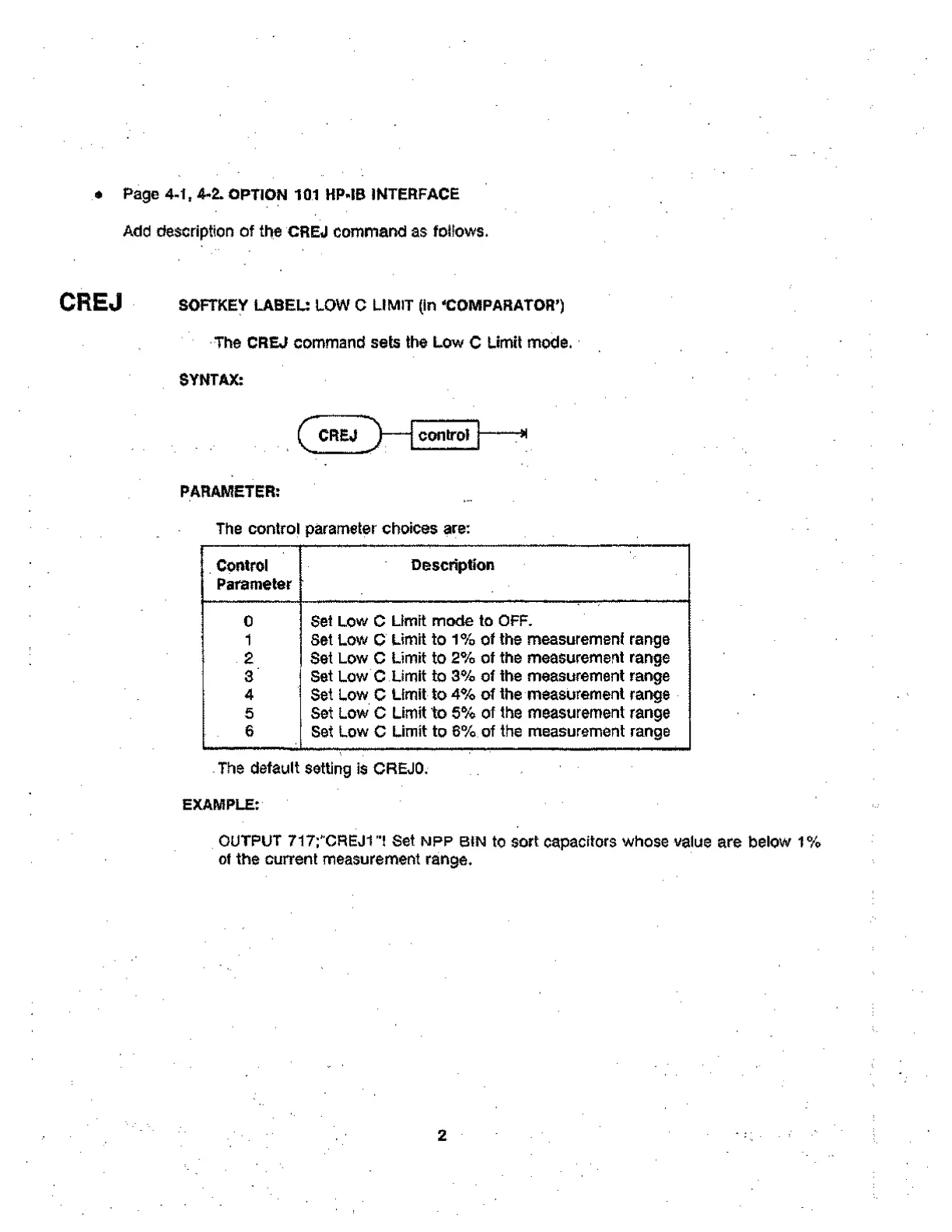

Page 4-1, 4-2. OPTION 101 HP-IB INTERFACE
Control
Parameter
Description
0
Set Low C Limit mode to OFF.
1
Set Low C Limit to 1% of the measurement range
2
Set Low C Limit to 2% of the measurement range
3
Set Low C Limit to 3% of the measurement range
4 Set Low C Limit to 4% of the measurement range
5 Set Low C Limit to 5% of the measurement range
6
Set Low C Limit to 6% of the measurement range
Add description of the CREJ command as follows.
CREJ SOFTKEY LABEL: LOW G LIMIT (in 'COMPARATOR')
The CREJ command sets the Low C Limit mode.
SYNTAX:
ECRU)
PARAMETER:
control
The control parameter choices are:
The default setting is CREJO.
EXAMPLE:
OUTPUT 717:"CREJ1"I Set NPP BIN to sort capacitors whose value are below 1%
of the current measurement range.
