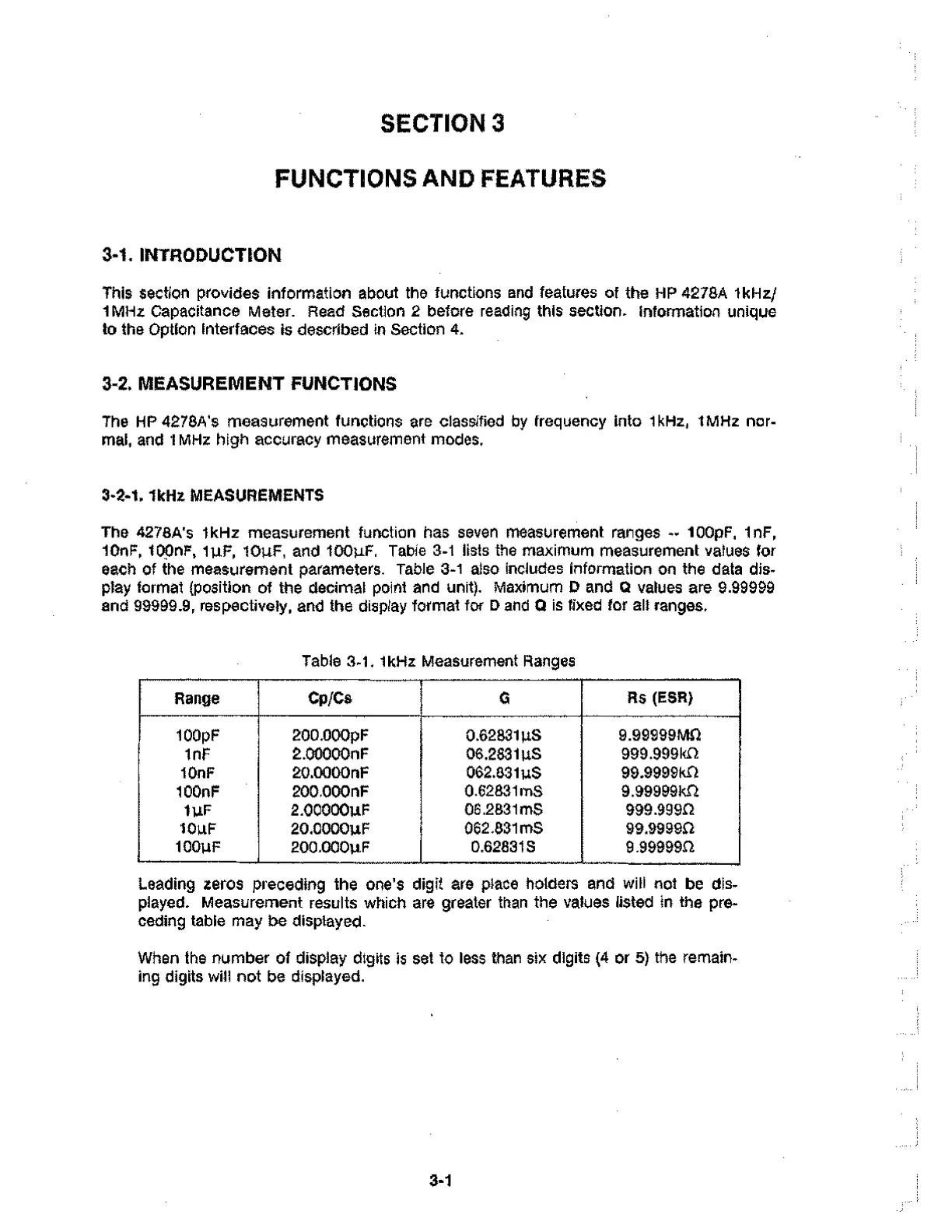

SECTION 3
Range
Cp/Cs
G
Rs (ESR)
100pF
200.000pF
0.628314S
9.99999M0
1nF
2.00000nF
06.28314S
999.999k0
lOnF 20.0000nF
062.83111S
99.9999k0
100nF
200.000nF
0.62831mS
9.99999k0
1uF
2.000004F
06.2831mS 999.9990
104F
20.00004F
062.831mS
99.99990
1004F
200.0004F
0.62831S
9.999990
FUNCTIONS AND FEATURES
3-1. INTRODUCTION
This section provides information about the functions and features of the HP 4278A 1kHz/
1MHz Capacitance Meter. Read Section 2 before reading this section. Information unique
to the Option Interfaces is described in Section 4.
3-2. MEASUREMENT FUNCTIONS
The HP 4278A's measurement functions are classified by frequency into 1kHz, 1MHz nor-
mal, and 1 MHz high accuracy measurement modes.
3-2-1. 1kHz MEASUREMENTS
The 4278A's 1kHz measurement function has seven measurement ranges -- 100pF, 1 riF,
1OnF, 100nF, 14F, 104F, and 1004F. Table 3-1 lists the maximum measurement values for
each of the measurement parameters. Table 3-1 also includes information on the data dis-
play format (position of the decimal point and unit). Maximum D and Q values are 9.99999
and 99999.9, respectively, and the display format for D and 0 is fixed for all ranges.
Tab le 3-1. lkHz Measurement Ranges
Leading zeros preceding the one's digit are place holders and will not be dis-
played. Measurement results which are greater than the values listed in the pre-
ceding table may be displayed.
When the number of display digits is set to less than six digits (4 or 5) the remain-
ing digits will not be displayed.
3-1
