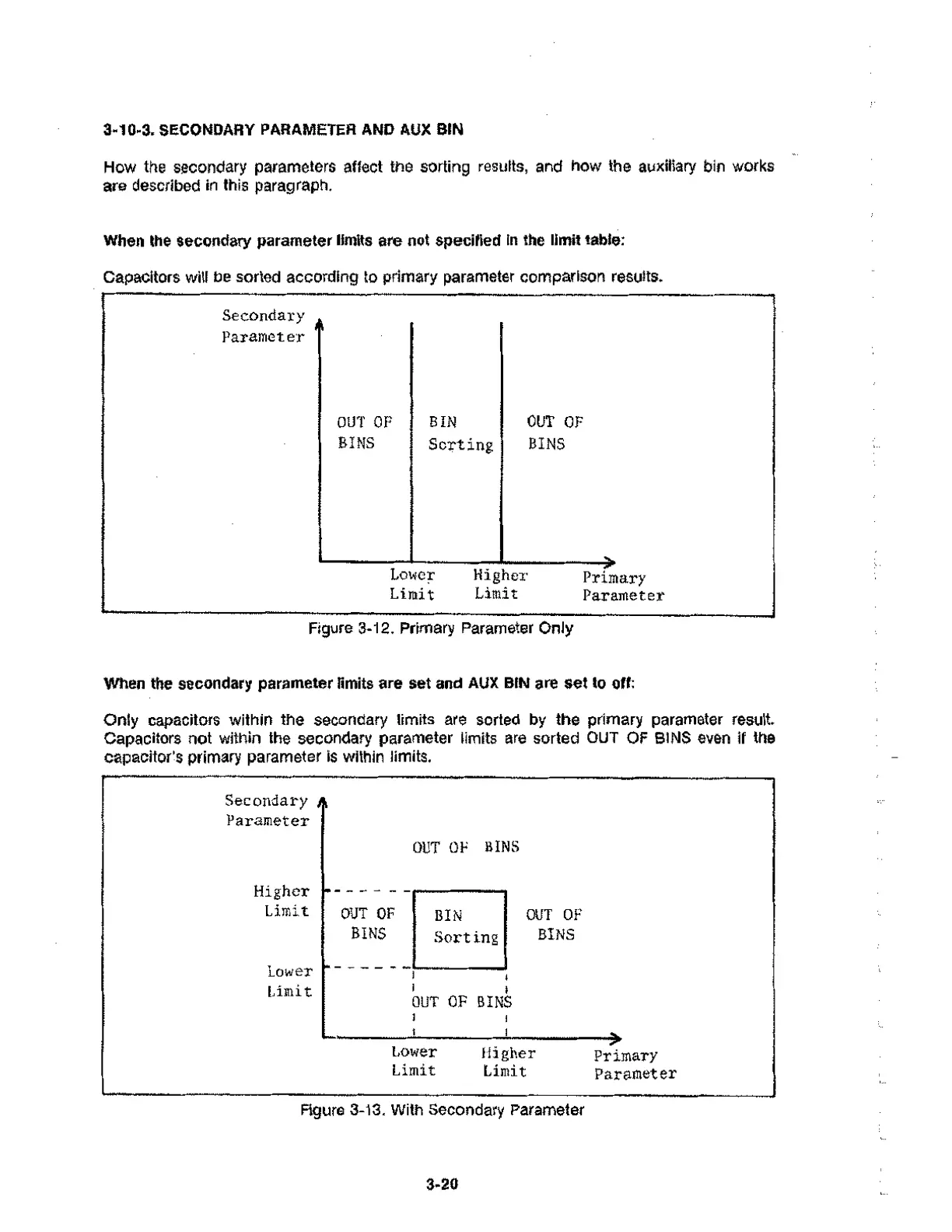

3-10-3. SECONDARY PARAMETER AND AUX BIN
How the secondary parameters affect the sorting results, and how the auxiliary bin works
are described in this paragraph.
When the secondary parameter limits are not specified in the limit table:
Capacitors will be sorted according to primary parameter comparison results.
Secondary
Parameter
OUT OF BIN OUT OF
BINS Sorting BINS
Lower Higher Primary
Limit Limit Parameter
Figure 3-12. Primary Parameter Only
When the secondary parameter limits are set and AUX BIN are set to off:
Only capacitors within the secondary limits are sorted by the primary parameter result.
Capacitors not within the secondary parameter limits are sorted OUT OF BINS even if the
capacitor's primary parameter is within limits.
Secondary
Parameter
OUT OF BINS
Higher
Limit
Lower
Limit
OUT OF
BINS
BIN
Sorting
OUT OF BINS
OUT OF
BINS
Lower Higher
Limit Limit
Figure 3-13. With Secondary Parameter
Primary
Parameter
3-20
