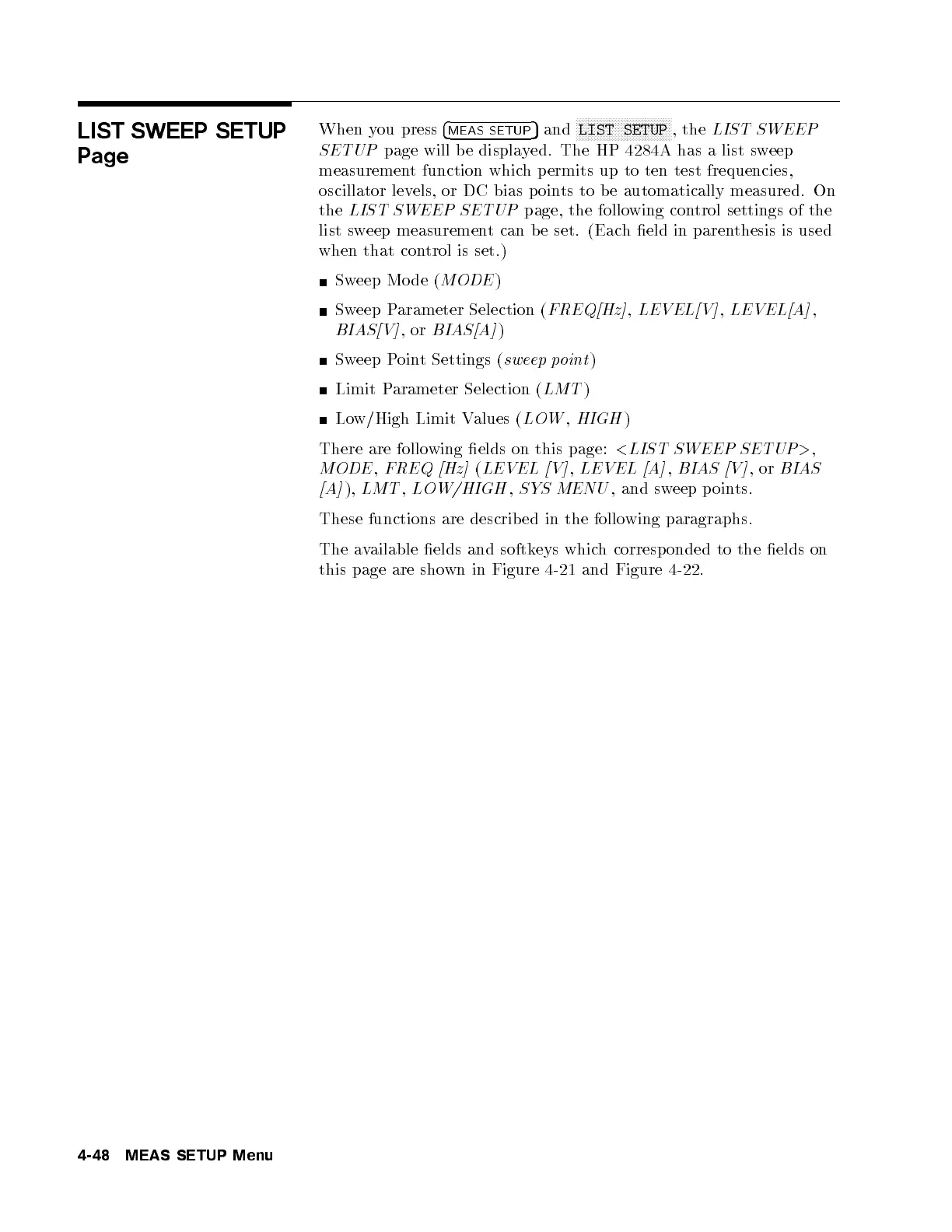

LIST SWEEP SETUP
Page
When you press
4
MEAS SETUP
5
and
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
LIST SETUP
, the
LIST SWEEP
SETUP
page will be displayed. The HP 4284A has a list sweep
measurement function which p ermits up to ten test frequencies,
oscillator levels, or DC bias points to be automatically measured. On
the
LIST SWEEP SETUP
page, the following control settings of the
list sweep measurement can b e set. (Each eld in parenthesis is used
when that control is set.)
Sweep Mo de (
MODE
)
Sweep Parameter Selection (
FREQ[Hz]
,
LEVEL[V]
,
LEVEL[A]
,
BIAS[V]
,or
BIAS[A]
)
Sweep Point Settings (
sweep point
)
Limit Parameter Selection (
LMT
)
Low/High Limit Values (
LOW
,
HIGH
)
There are following elds on this page:
<
LIST SWEEP SETUP
>
,
MODE
,
FREQ [Hz]
(
LEVEL [V]
,
LEVEL [A]
,
BIAS [V]
,or
BIAS
[A]
),
LMT
,
LOW/HIGH
,
SYS MENU
, and sweep p oints.
These functions are describ ed in the following paragraphs.
The available elds and softkeys which corresp onded to the elds on
this page are shown in Figure 4-21 and Figure 4-22.
