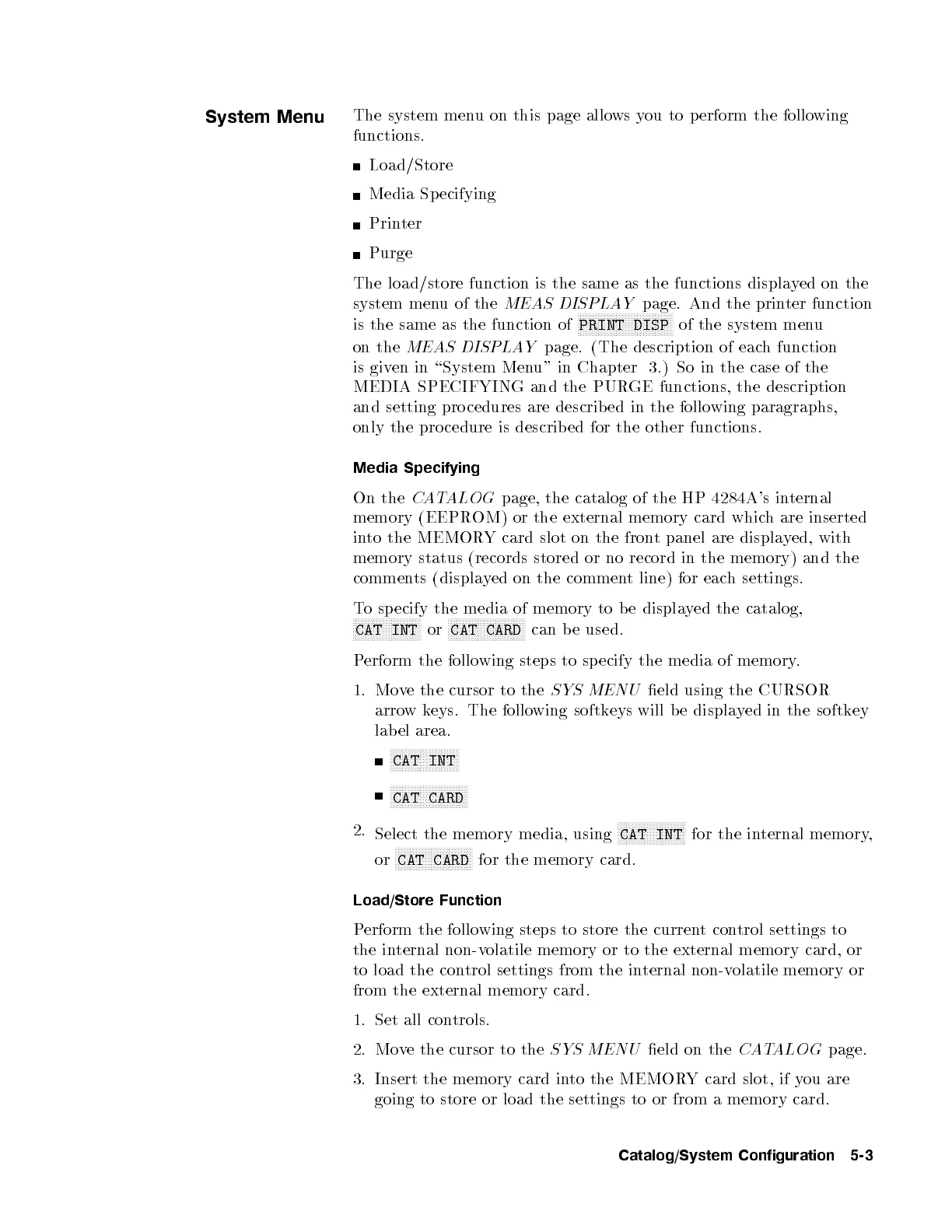

System Menu
The system menu on this page allows you to perform the following
functions.
Load/Store
Media Specifying
Printer
Purge
The load/store function is the same as the functions displayed on the
system menu of the
MEAS DISPLAY
page. And the printer function
is the same as the function of
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
PRINT DISP
of the system menu
on the
MEAS DISPLAY
page. (The description of each function
is given in \System Menu" in Chapter 3.) So in the case of the
MEDIA SPECIFYING and the PURGE functions, the description
and setting pro cedures are described in the follo wing paragraphs,
only the pro cedure is described for the other functions.
Media Specifying
On the
CATALOG
page, the catalog of the HP 4284A's in
ternal
memory (EEPROM) or the external memory card which are inserted
into the MEMORY card slot on the front panel are displayed, with
memory status (records stored or no record in the memory) and the
comments (displayed on the comment line) for each settings.
To specify the media of memory to b e displa
yed the catalog,
NNNNNNNNNNNNNNNNNNNNNNN
CAT INT
or
NNNNNNNNNNNNNNNNNNNNNNNNNN
CAT CARD
can b e used.
Perform the following steps to sp ecify the media of memory
.
1. Move the cursor to the
SYS MENU
eld using the CURSOR
arrowkeys. The following softkeys will b e displayed in the softkey
lab el area.
NNNNNNNNNNNNNNNNNNNNNNN
CAT INT
NNNNNNNNNNNNNNNNNNNNNNNNNN
CAT CARD
2.
Select the memory media, using
NNNNNNNNNNNNNNNNNNNNNNN
CAT INT
for the internal memory,
or
NNNNNNNNNNNNNNNNNNNNNNNNNN
CAT CARD
for the memory card.
Load/Store Function
Perform the following steps to store the current control settings to
the internal non-volatile memory or to the external memory card, or
to load the control settings from the internal non-volatile memory or
from the external memory card.
1. Set all controls.
2. Move the cursor to the
SYS MENU
eld on the
CATALOG
page.
3. Insert the memory card into the MEMORY card slot, if you are
going to store or load the settings to or from a memory card.
Catalog/System Configuration 5-3
