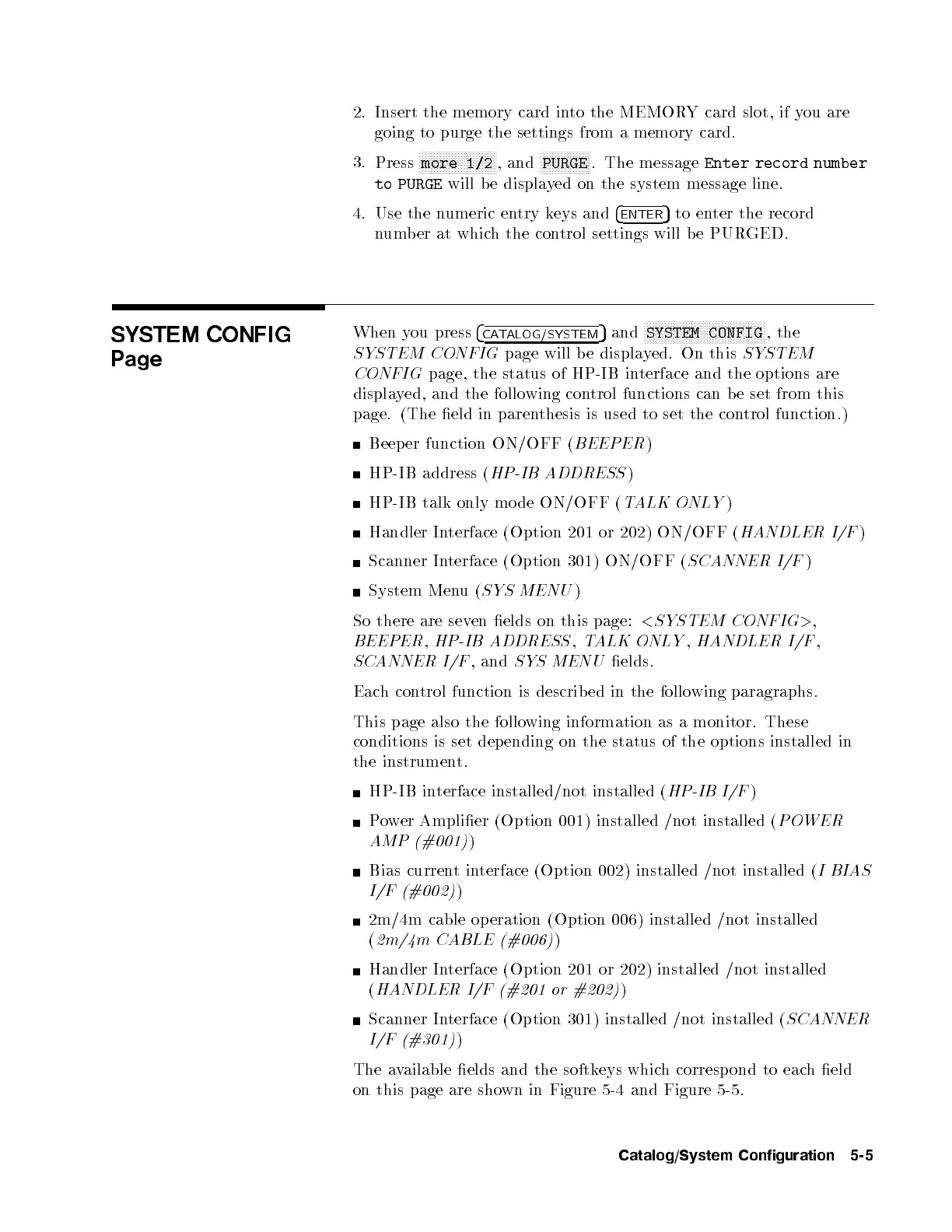

2. Insert the memory card into the MEMORY card slot, if you are
going to purge the settings from a memory card.
3.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
more 1/2 , and
NNNNNNNNNNNNNNNNN
PURGE . The message Enter record number
to PURGE will be displayed on the system message line.
4. Use the numeric entry keys and 4
ENTER
5 to enter the record
number at which the control settings will be PURGED.
SYSTEM CONFIG
Page
When you press 4
CATALOG/SYSTEM
5 and
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
SYSTEM CONFIG , the
SYSTEM CONFIG page will be displayed. On this SYSTEM
CONFIG page, the status of HP-IB interface and the options are
displayed, and the follo wing control functions can be set from this
page. (The eld in parenthesis is used to set the control function.)
Beeper function ON/OFF ( BEEPER )
HP-IB address ( HP-IB ADDRESS )
HP-IB talk only mo de ON/OFF ( TALK ONLY )
Handler Interface (Option 201 or 202) ON/OFF ( HANDLER I/F )
Scanner Interface (Option 301) ON/OFF ( SCANNER I/F )
System Menu( SYS MENU )
So there are seven elds on this page: < SYSTEM CONFIG > ,
BEEPER , HP-IB ADDRESS , TALK ONLY , HANDLER I/F ,
SCANNER I/F , and SYS MENU elds.
Each control function is described in the follo
wing paragraphs.
This page also the following information as a monitor. These
conditions is set depending on the status of the options installed in
the instrument.
HP-IB interface installed/not installed ( HP-IB I/F )
Power Amplier (Option 001) installed /not installed ( POWER
AMP (#001) )
Bias currentinterface (Option 002) installed /not installed ( I BIAS
I/F (#002) )
2m/4m cable op eration (Option 006) installed /not installed
( 2m/4m CABLE (#006) )
Handler Interface (Option 201 or 202) installed /not installed
( HANDLER I/F (#201 or #202) )
Scanner Interface (Option 301) installed /not installed ( SCANNER
I/F (#301) )
The available elds and the softkeys which corresp ond to each eld
on this page are shown in Figure 5-4 and Figure 5-5.
Catalog/System Configuration 5-5
