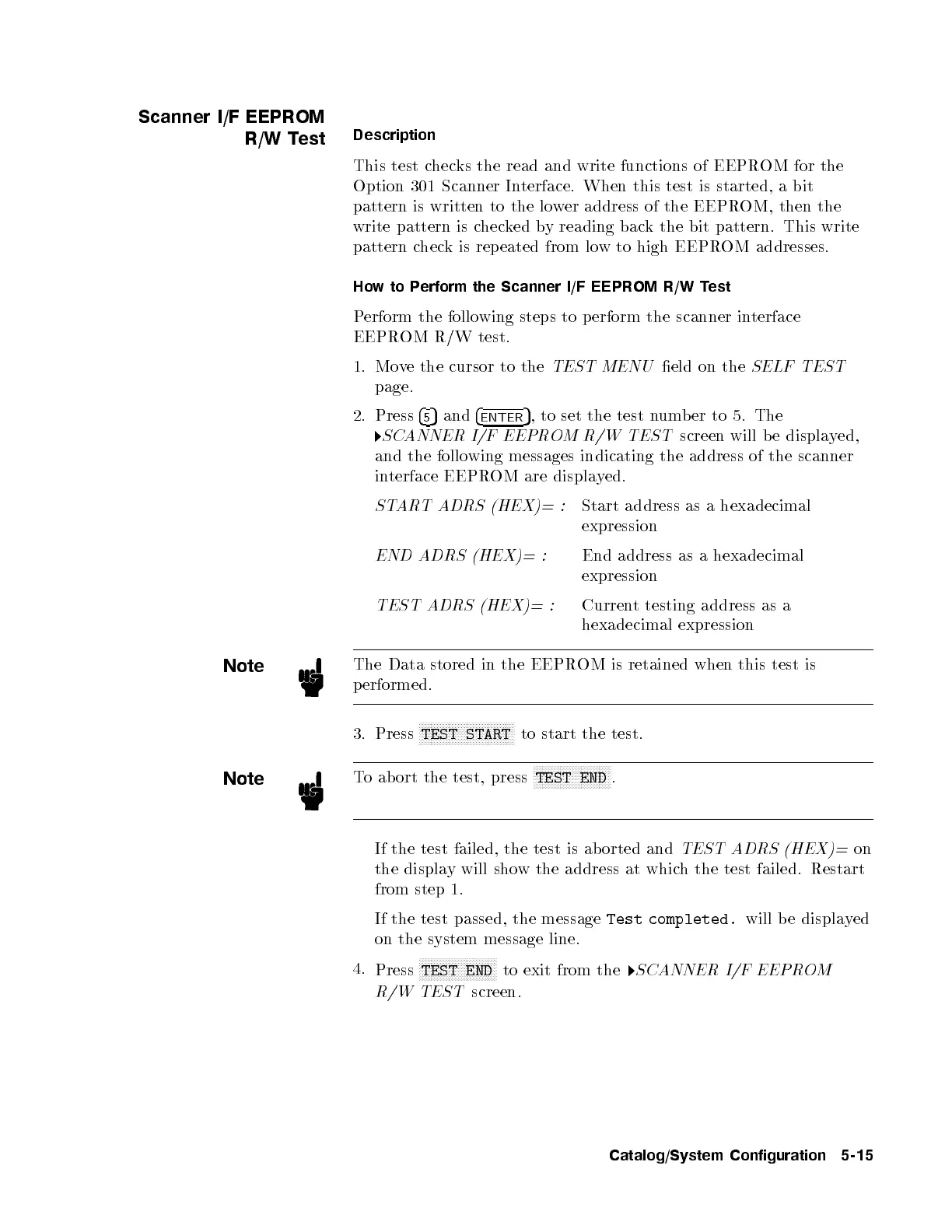

Scanner I/F EEPROM
R/W Test
Description
This test checks the read and write functions of EEPROM for the
Option 301 Scanner Interface. When this test is started, a bit
pattern is written to the lower address of the EEPROM, then the
write pattern is checked by reading back the bit pattern. This write
pattern check is rep eated from low to high EEPROM addresses.
HowtoPerform the Scanner I/F EEPROM R/W Test
Perform the following steps to p erform the scanner interface
EEPROM R/W test.
1. Move the cursor to the
TEST MENU
eld on the
SELF TEST
page.
2. Press
4
5
5
and
4
ENTER
5
, to set the test number to 5. The
7
SCANNER I/F EEPROM R/W TEST
screen will b e displayed,
and the following messages indicating the address of the scanner
interface EEPROM are displayed.
START ADRS (HEX)= :
Start address as a hexadecimal
expression
END ADRS (HEX)= :
End address as a hexadecimal
expression
TEST ADRS (HEX)= :
Current testing address as a
hexadecimal expression
Note
The Data stored in the EEPROM is retained when this test is
performed.
3. Press
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
TEST START
to start the test.
Note
To abort the test, press
NNNNNNNNNNNNNNNNNNNNNNNNNN
TEST END
.
If the test failed, the test is aborted and
TEST ADRS (HEX)=
on
the display will show the address at which the test failed. Restart
from step 1.
If the test passed, the message
Test completed.
will be displayed
on the system message line.
4.
Press
NNNNNNNNNNNNNNNNNNNNNNNNNN
TEST END
to exit from the
7
SCANNER I/F EEPROM
R/W TEST
screen.
Catalog/System Configuration 5-15
