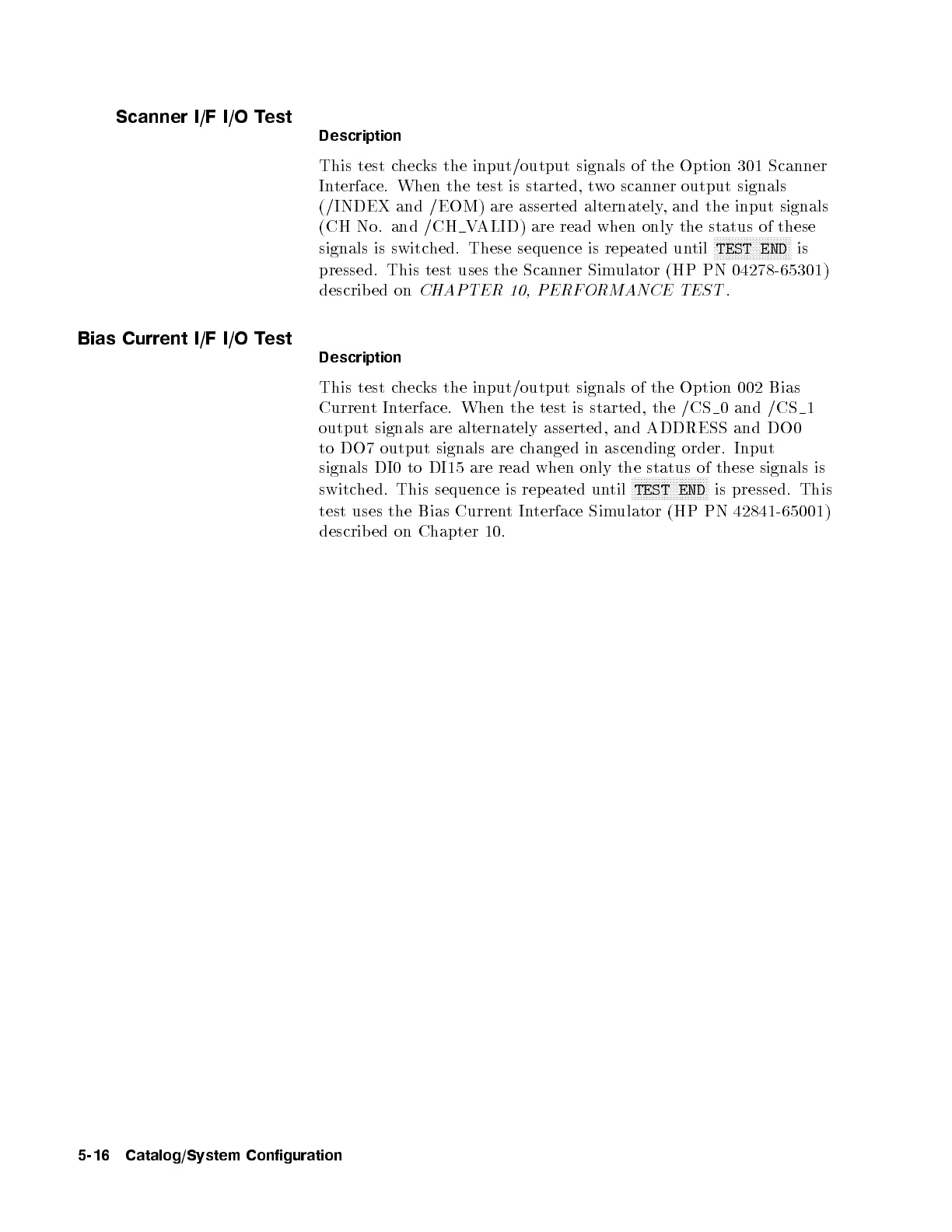

Scanner I/F I/O Test
Description
This test checks the input/output signals of the Option 301 Scanner
Interface. When the test is started, two scanner output signals
(/INDEX and /EOM) are asserted alternately, and the input signals
(CH No. and /CH VALID) are read when only the status of these
signals is switched. These sequence is rep eated until
NNNNNNNNNNNNNNNNNNNNNNNNNN
TEST END
is
pressed. This test uses the Scanner Simulator (HP PN 04278-65301)
described on
CHAPTER 10, PERFORMANCE TEST
.
Bias Current I/F I/O Test
Description
This test checks the input/output signals of the Option 002 Bias
CurrentInterface. When the test is started, the /CS 0 and /CS 1
output signals are alternately asserted, and ADDRESS and DO0
to DO7 output signals are changed in ascending order. Input
signals DI0 to DI15 are read when only the status of these signals is
switched. This sequence is rep eated until
NNNNNNNNNNNNNNNNNNNNNNNNNN
TEST END
is pressed. This
test uses the Bias CurrentInterface Simulator (HP PN 42841-65001)
described on Chapter 10.
5-16 Catalog/System Configuration
