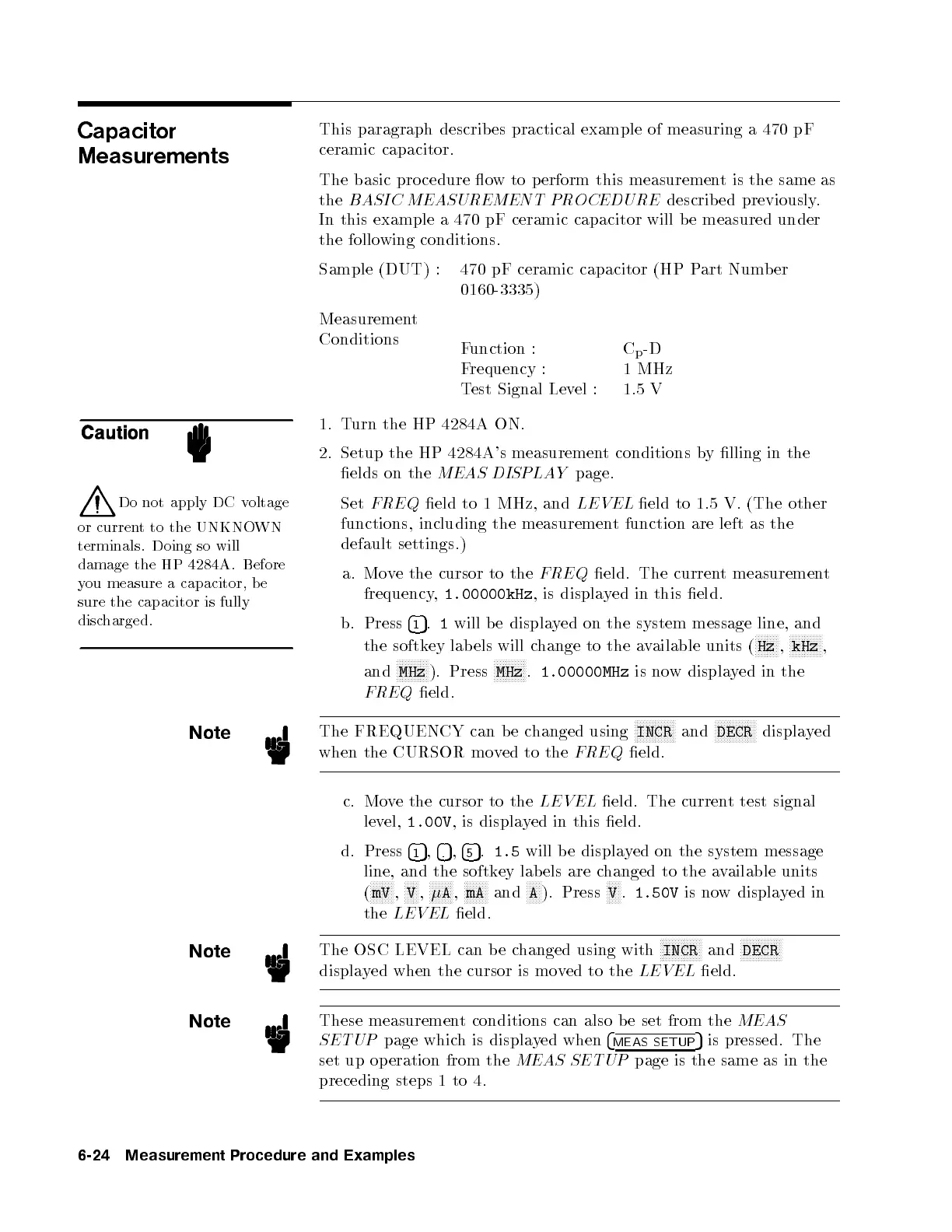

Capacitor
Measurements
This paragraph describ es practical example of measuring a 470 pF
ceramic capacitor.
The basic pro cedure ow to perform this measurement is the same as
the
BASIC MEASUREMENT PROCEDURE
described previously.
In this example a 470 pF ceramic capacitor will b e measured under
the following conditions.
Sample (DUT) : 470 pF ceramic capacitor (HP Part Number
0160-3335)
Measurement
Conditions
Function : C
p
-D
Frequency : 1 MHz
Test Signal Level : 1.5 V
Do not apply DC voltage
or current to the UNKNOWN
terminals. Doing so will
damage the HP 4284A. Before
you measure a capacitor, be
sure the capacitor is fully
discharged.
1. Turn the HP 4284A ON.
2. Setup the HP 4284A's measurement conditions by lling in the
elds on the
MEAS DISPLAY
page.
Set
FREQ
eld to 1 MHz, and
LEVEL
eld to 1.5 V. (The other
functions, including the measurement function are left as the
default settings.)
a. Move the cursor to the
FREQ
eld. The current measurement
frequency,
1.00000kHz
, is displayed in this eld.
b. Press
4
1
5
.
1
will be displayed on the system message line, and
the softkey lab els will change to the available units (
NNNNNNNN
Hz
,
NNNNNNNNNNN
kHz
,
and
NNNNNNNNNNN
MHz
). Press
NNNNNNNNNNN
MHz
.
1.00000MHz
is now displayed in the
FREQ
eld.
Note
The FREQUENCY can b e changed using
NNNNNNNNNNNNNN
INCR
and
NNNNNNNNNNNNNN
DECR
displayed
when the CURSOR moved to the
FREQ
eld.
c. Move the cursor to the
LEVEL
eld. The current test signal
level,
1.00V
, is displayed in this eld.
d. Press
4
1
5
,
4
.
5
,
4
5
5
.
1.5
will be displayed on the system message
line, and the softkey lab els are c
hanged to the available units
(
NNNNNNNN
mV
,
NNNNN
V
,
NNNNNNNN
A
,
NNNNNNNN
mA
and
NNNNN
A
). Press
NNNNN
V
.
1.50V
is now displayed in
the
LEVEL
eld.
Note
The OSC LEVEL can b e changed using with
NNNNNNNNNNNNNN
INCR
and
NNNNNNNNNNNNNN
DECR
displayed when the cursor is moved to the
LEVEL
eld.
Note
These measurement conditions can also b e set from the
MEAS
SETUP
page which is displayed when
4
MEAS SETUP
5
is pressed. The
set up op eration from the
MEAS SETUP
page is the same as in the
preceding steps 1 to 4.
6-24 Measurement Procedure and Examples
