Characteristics
Example

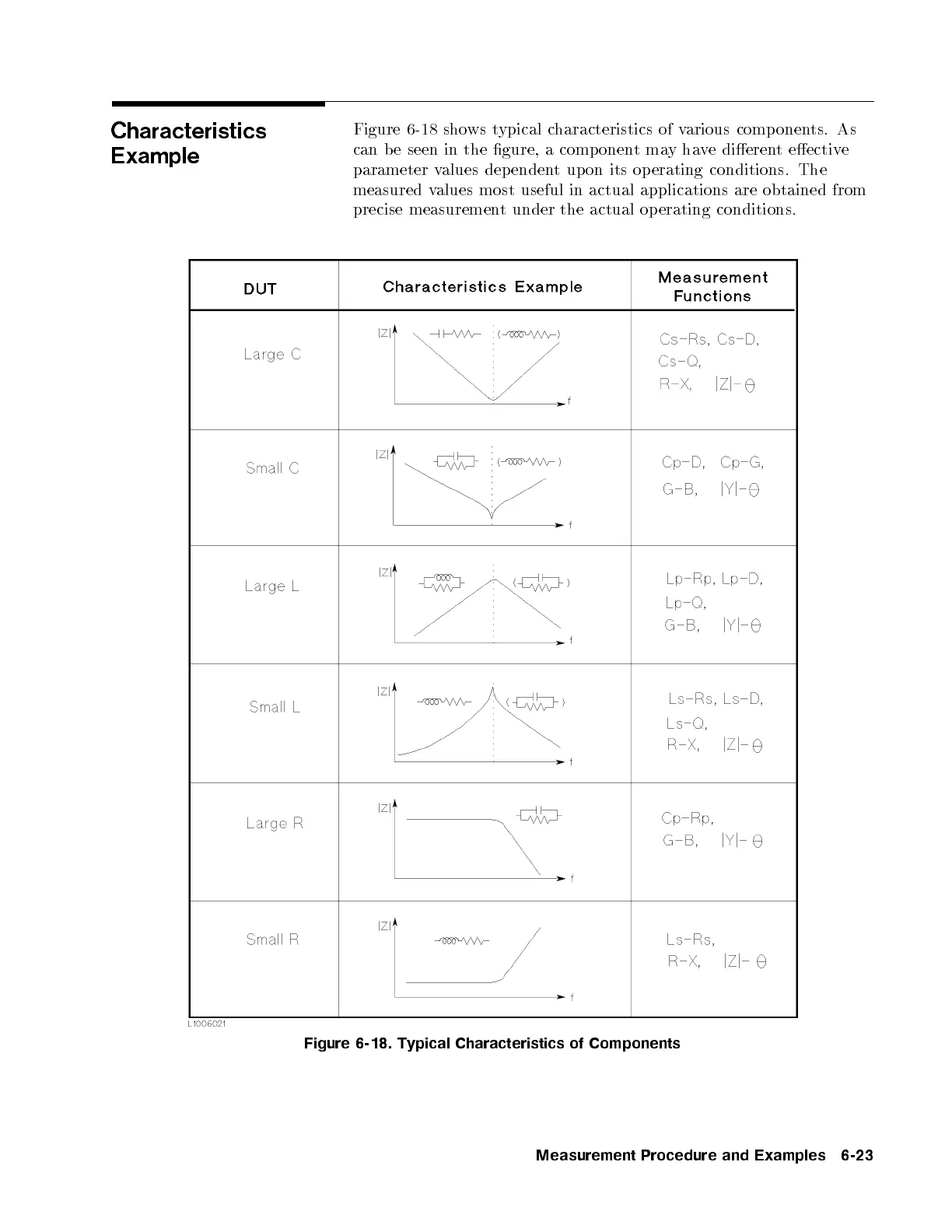

Figure 6-18 shows typical characteristics of various components. As
can b e seen in the gure, a comp onentmayhave dierent eective
parameter values dependent upon its op erating conditions. The
measured values most useful in actual applications are obtained from
precise measurement under the actual op erating conditions.
Figure 6-18. Typical Characteristics of Components
Measurement Procedure and Examples 6-23
