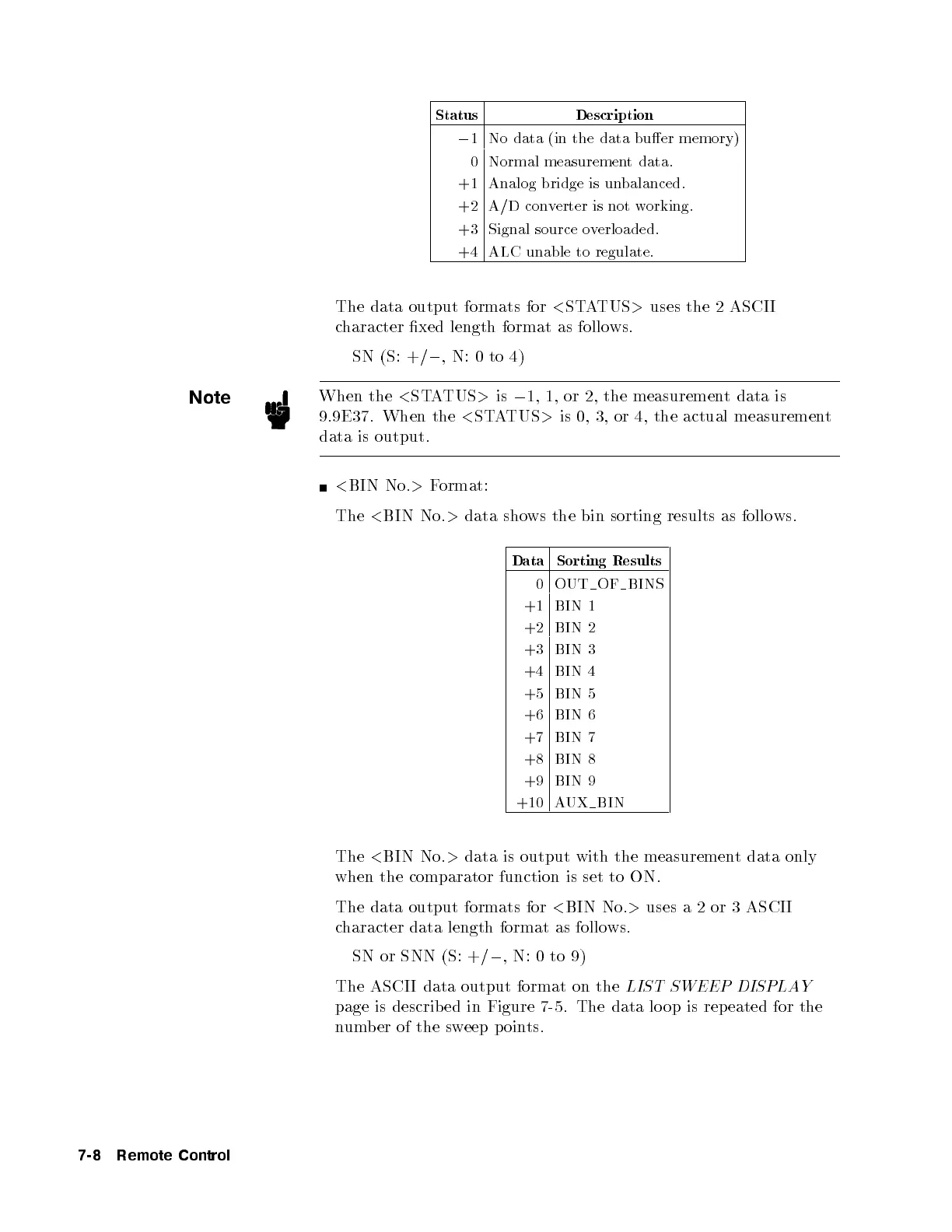

Status Description
0
1 No data (in the data buer memory)
0 Normal measurement data.
+1 Analog bridge is unbalanced.
+2 A/D converter is not working.
+3 Signal source overloaded.
+4 ALC unable to regulate.
The data output formats for
<
STATUS
>
uses the 2 ASCII
character xed length format as follows.
SN (S: +/
0
, N: 0 to 4)
Note
When the
<
STATUS
>
is
0
1, 1, or 2, the measurement data is
9.9E37. When the
<
STATUS
>
is 0, 3, or 4, the actual measurement
data is output.
<
BIN No.
>
Format:
The
<
BIN No.
>
data shows the bin sorting results as follows.
Data Sorting Results
0 OUT OF BINS
+1 BIN 1
+2 BIN 2
+3 BIN 3
+4 BIN 4
+5 BIN 5
+6 BIN 6
+7 BIN 7
+8 BIN 8
+9 BIN 9
+10 AUX BIN
The
<
BIN No.
>
data is output with the measurement data only
when the comparator function is set to ON.
The data output formats for
<
BIN No.
>
uses a 2 or 3 ASCII
character data length format as follows.
SN or SNN (S: +/
0
, N: 0 to 9)
The ASCI I data output format on the
LIST SWEEP DISPLAY
page is describ ed in Figure 7-5. The data lo op is rep eated for the
number of the sweep p oints.
7-8 Remote Control
