Note
When the HP 4284A is set to the EXT TRIG mo de, and is triggered
via the EXT TRIGGER connector or an optional interface under
the remote condition, this trigger signal has the same eect as the
TRIGger:IMMediate
SCPI command.
MEASUREMENT state
In this state, DUT measurement is b eing p erformed. After the
DUT measurement is completed, trigger state automatically
changes to the IDLE state.
Note
The HP 4284A can only measure a DUT on one page of the
MEAS
DISPLAY
,
BIN No. DISPLAY
,
BIN COUNT DISPLAY
, and
LIST SWEEP DISPLAY
pages under
4
DISPLAYFORMAT
5
even if the
HP 4284A is in remote.

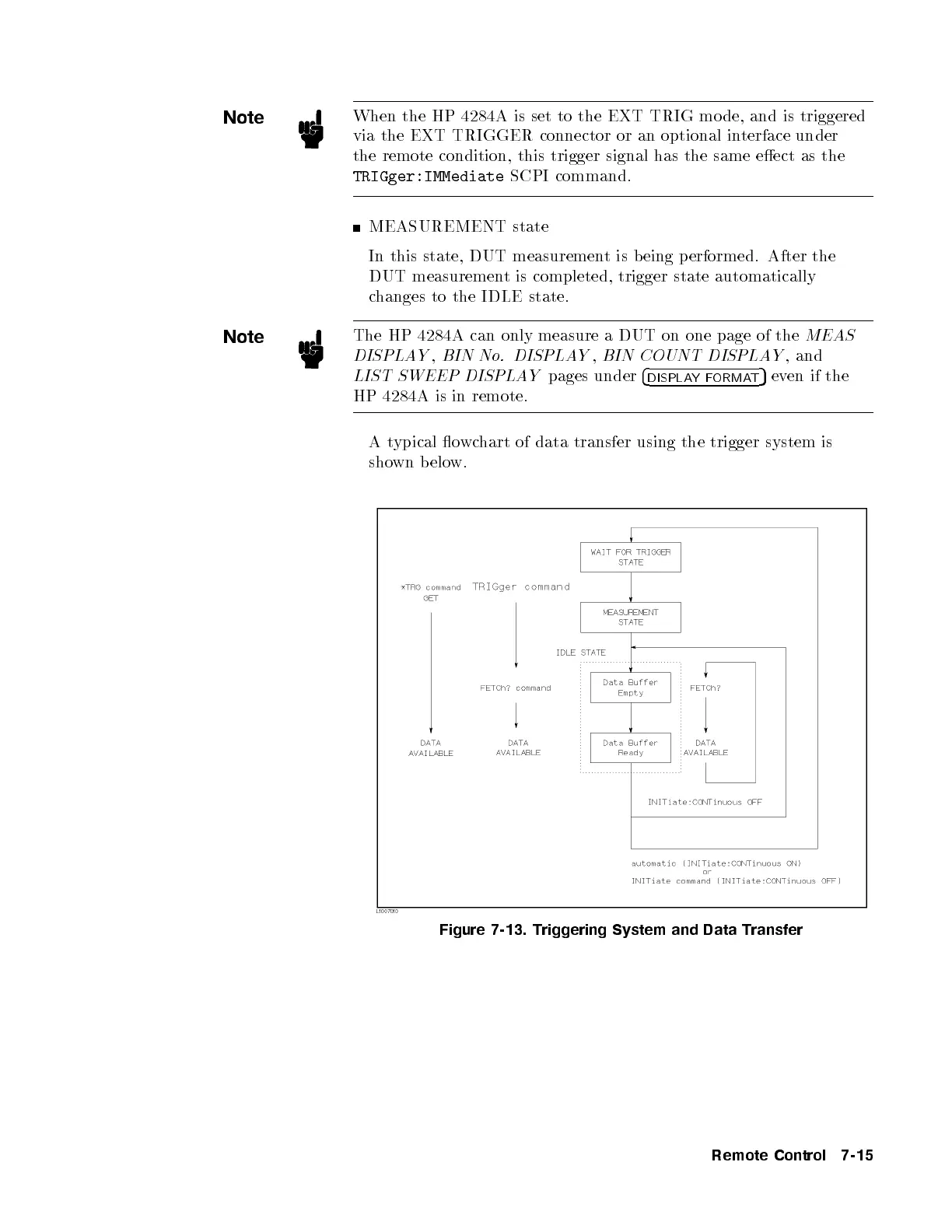

Atypical owchart of data transfer using the trigger system is
shown below.
Figure 7-13. Triggering System and Data Transfer
Remote Control 7-15
