Data Buffer Memory
The HP 4284A has data buer memory capability. The data buer
memory can hold up to 128 sets of measurement results, and all
buered measurement results are transferred at once to the controller
using the MEMory:READ? DBUF command as shown in Figure 7-14.So
the overall data transmission time will b e greatly reduced.
10 OPTION BASE 1
20 DIM D(5,4)
30 ASSIGN @Meter TO 717
40 REMOTE @Meter
50 OUTPUT @Meter;"*RST;*CLS"
60 OUTPUT @Meter;"FORM ASCII"
70 OUTPUT @Meter;"TRIG:SOUR BUS"
80 OUTPUT @Meter;"DISP:PAGE MEAS"
90 OUTPUT @Meter;"MEM:DIM DBUF,5"
100 OUTPUT @Meter;"MEM:FILL DBUF"
110 FOR I=1 TO 5
120 OUTPUT @Meter;"TRIGGER:IMMEDIATE"
130 NEXT I
140 OUTPUT @Meter;"MEM:READ? DBUF"
150 ENTER @Meter;D(*)
160 PRINT D(*)
170 OUTPUT @Meter;"MEM:CLE DBUF"
180 END

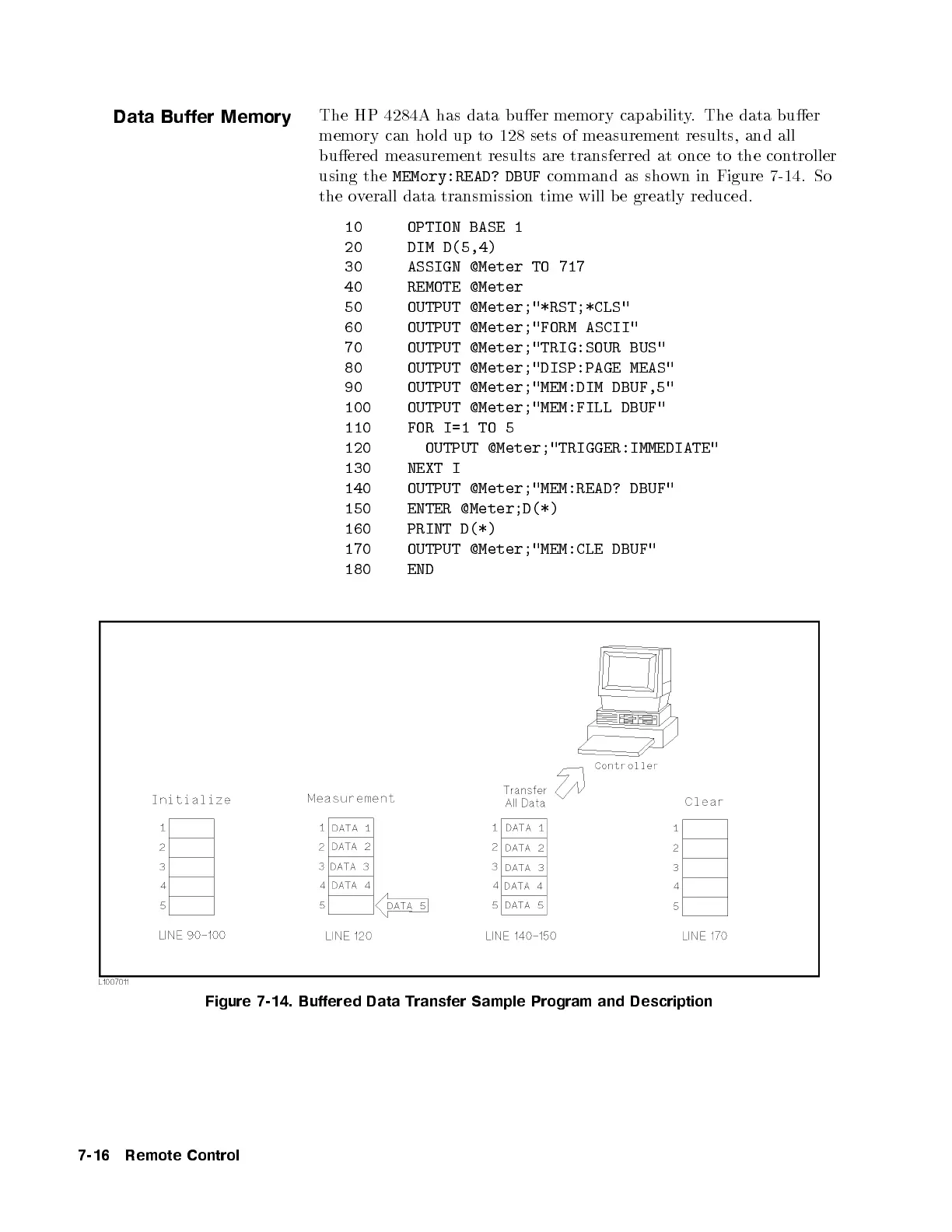

Figure 7-14. Buffered Data Transfer Sample Program and Description
7-16 Remote Control
