Operation Status
Register Group
The op eration status register group provides op eration status
reporting by summarizing multiple events into a summary message
(bit 7) of the status byte. The structure of the op eration status
register group is shown in Figure 7-18. The operation status register
group consists of the standard operation status condition register, the
standard op eration status event register, and the standard op eration
status event enable register.

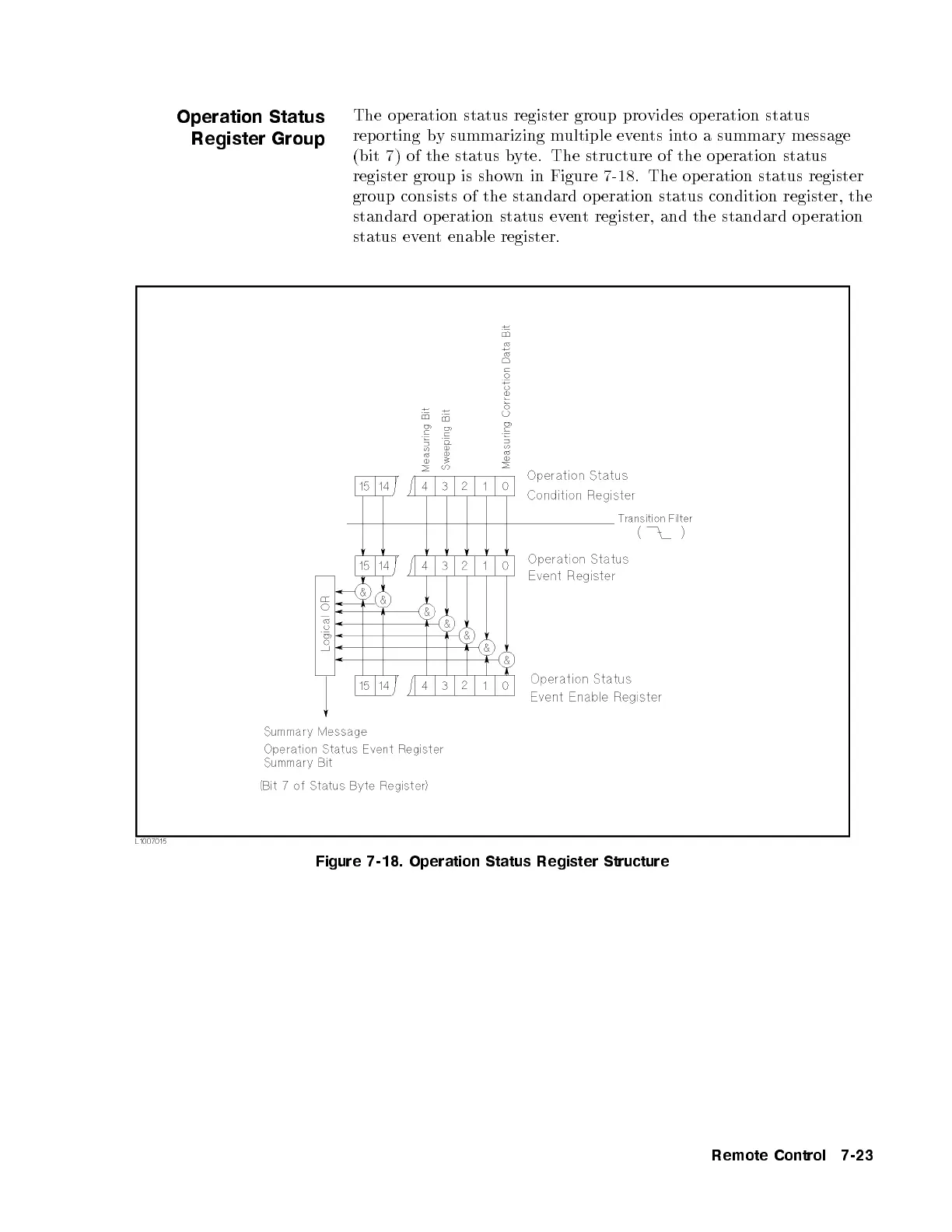

Figure 7-18. Operation Status Register Structure
Remote Control 7-23
