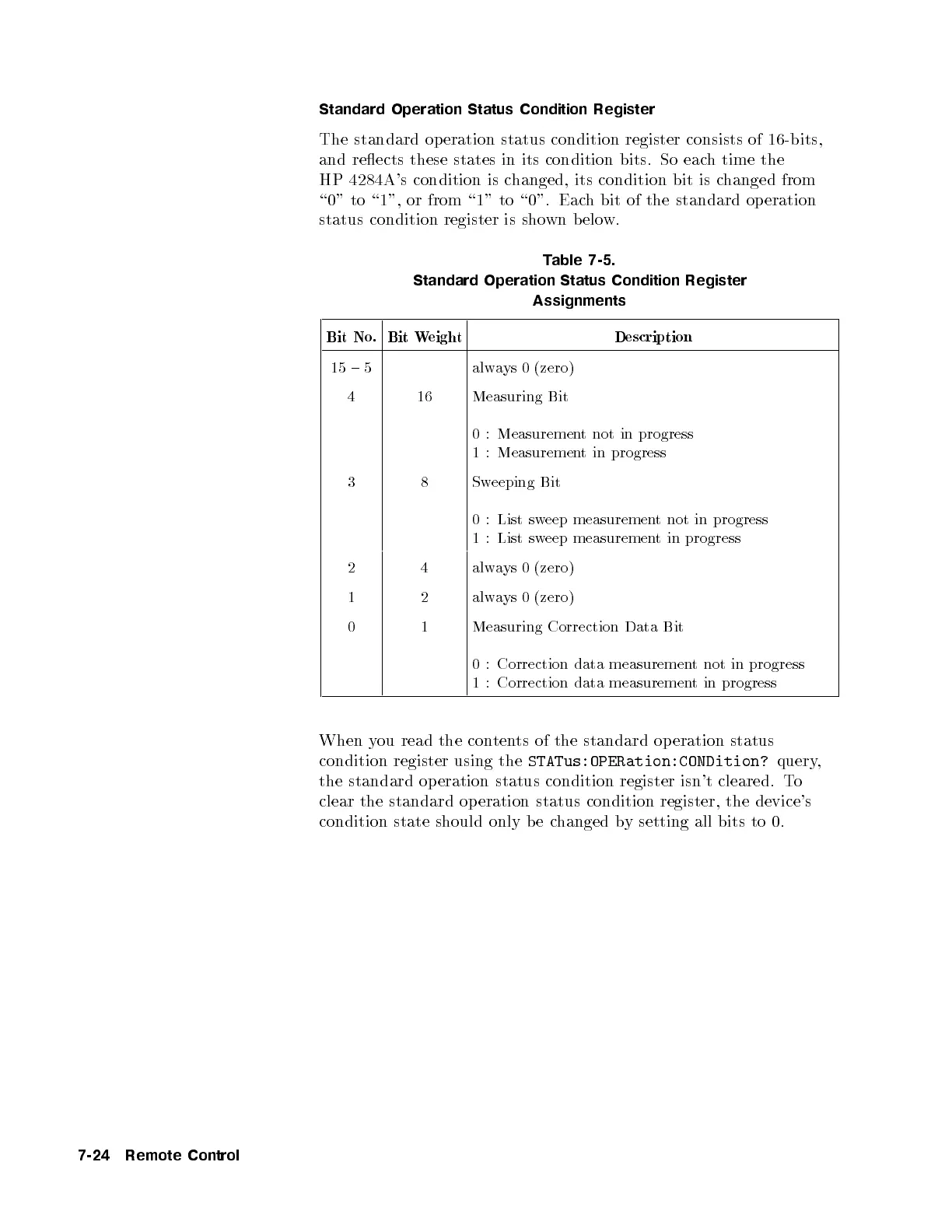

Standard Operation Status Condition Register
The standard op eration status condition register consists of 16-bits,
and reects these states in its condition bits. So each time the
HP 4284A's condition is changed, its condition bit is changed from
\0" to \1", or from \1" to \0". Each bit of the standard op eration
status condition register is shown b elow.
Table 7-5.
Standard Operation Status Condition Register
Assignments
Bit No. Bit Weight Description
15 { 5 always 0 (zero)
4 16 Measuring Bit
0 : Measurement not in progress
1 : Measurement in progress
3 8 Sweeping Bit
0 : List sweep measurement not in progress
1 : List sweep measurement in progress
2 4 always 0 (zero)
1 2 always 0 (zero)
0 1 Measuring Correction Data Bit
0 : Correction data measurement not in progress
1 : Correction data measurement in progress
When you read the contents of the standard op eration status
condition register using the
STATus:OPERation:CONDition?
query,
the standard op eration status condition register isn't cleared. To
clear the standard op eration status condition register, the device's
condition state should only b e changed by setting all bits to 0.
