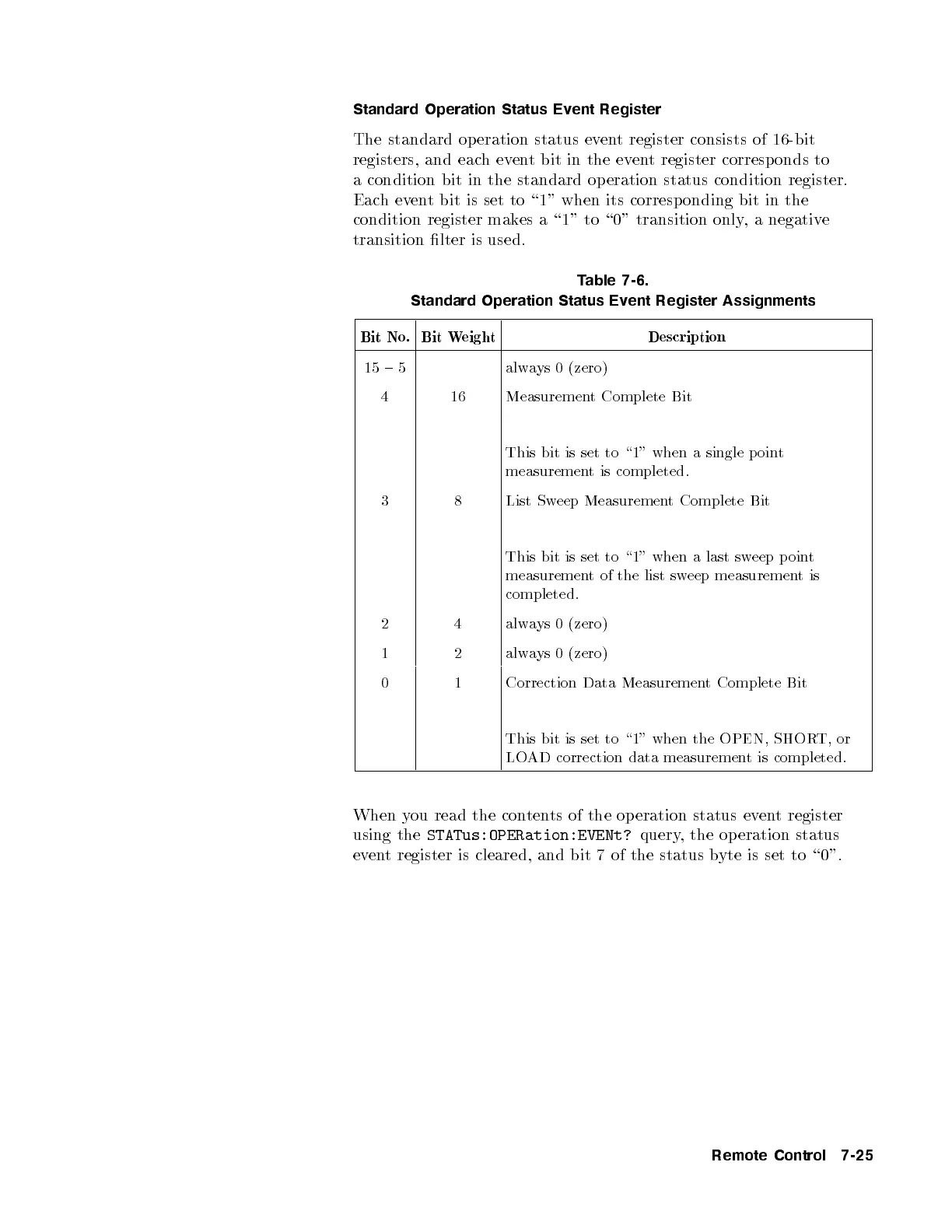

Standard Operation Status Event Register
The standard op eration status event register consists of 16-bit
registers, and eachevent bit in the event register corresp onds to
a condition bit in the standard op eration status condition register.
Eachevent bit is set to \1" when its corresp onding bit in the
condition register makes a \1" to \0" transition only, a negative
transition lter is used.
Table 7-6.
Standard Operation Status Event Register Assignments
Bit No. Bit Weight Description
15 { 5 always 0 (zero)
4 16 Measurement Complete Bit
This bit is set to \1" when a single p oint
measurement is completed.
3 8 List Sweep Measurement Complete Bit
This bit is set to \1" when a last sw
eep point
measurement of the list sweep measurementis
completed.
2 4 always 0 (zero)
1 2 always 0 (zero)
0 1 Correction Data Measurement Complete Bit
This bit is set to \1" when the OPEN, SHOR
T, or
LOAD correction data measurement is completed.
When you read the contents of the operation status event register
using the
STATus:OPERation:EVENt?
query, the op eration status
event register is cleared, and bit 7 of the status b
yte is set to \0".
Remote Control 7-25
