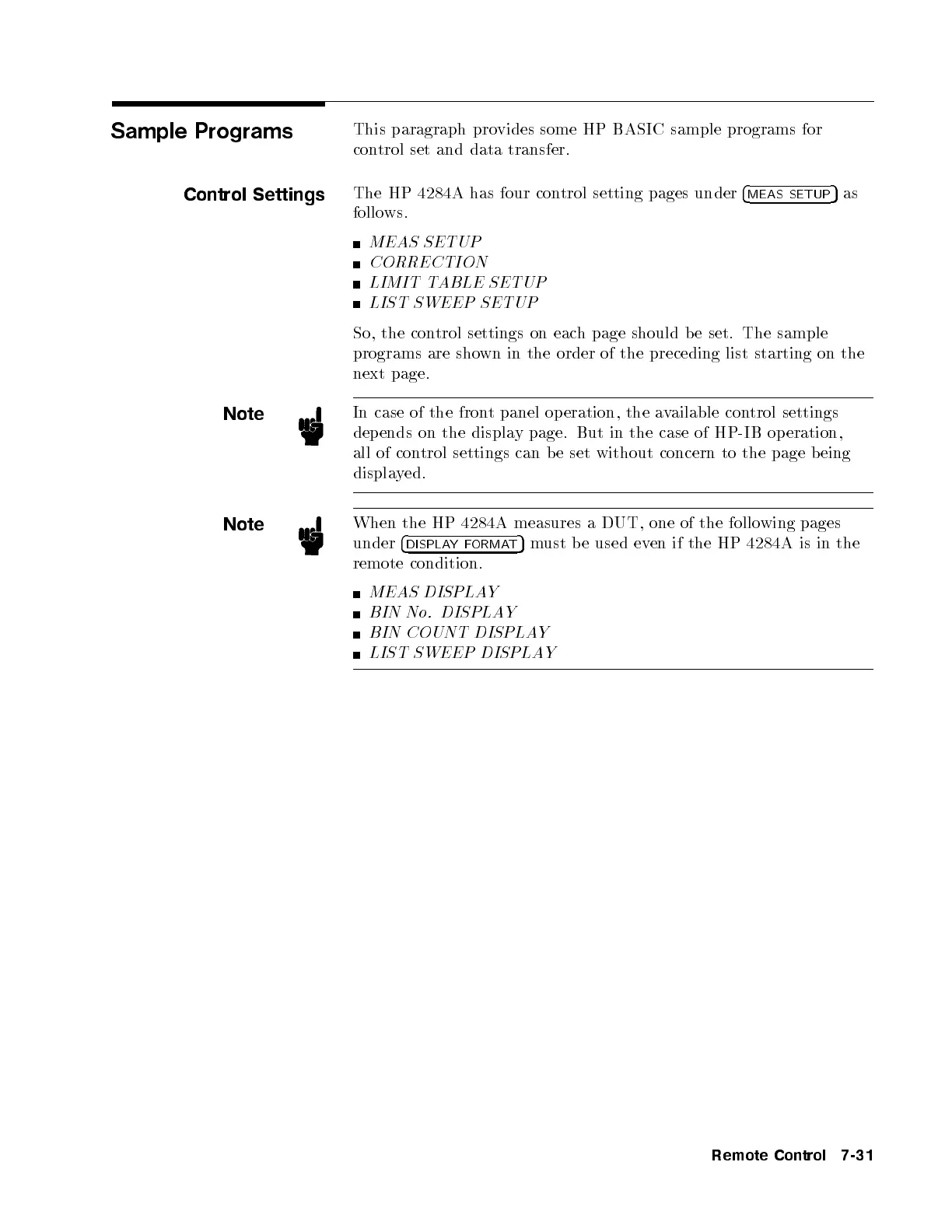

Sample Programs
This paragraph provides some HP BASIC sample programs for
control set and data transfer.
Control Settings
The HP 4284A has four control setting pages under
4
MEAS SETUP
5
as
follows.
MEAS SETUP
CORRECTION
LIMIT TABLE SETUP
LIST SWEEP SETUP
So, the control settings on each page should be set. The sample
programs are shown in the order of the preceding list starting on the
next page.
Note
In case of the front panel op eration, the available control settings
depends on the display page. But in the case of HP-IB op eration,
all of control settings can b e set without concern to the page being
displayed.
Note
When the HP 4284A measures a DUT, one of the following pages
under
4
DISPLAYFORMAT
5
must b e used even if the HP 4284A is in the
remote condition.
MEAS DISPLAY
BIN No. DISPLAY
BIN COUNT DISPLAY
LIST SWEEP DISPLAY
Remote Control 7-31
