MEAS SETUP page
This sample program sets all of the setting controls on the
MEAS
SETUP
page.
10 ASSIGN @Meter TO 717
20 REMOTE @Meter
30 OUTPUT @Meter;"DISP:PAGE MSET"
40 OUTPUT @Meter;"DISP:LINE ""Control Example"""
50 OUTPUT @Meter;"FUNC:IMP ZTD"
60 OUTPUT @Meter;"FREQ 1MHZ"
70 OUTPUT @Meter;"VOLT 1V"
80 OUTPUT @Meter;"TRIG:SOUR BUS"
90 OUTPUT @Meter;"AMPL:ALC ON"
100 OUTPUT @Meter;"OUTP:HPOW ON"
110 OUTPUT @Meter;"OUTP:DC:ISOL ON"
120 OUTPUT @Meter;"FUNC:IMP:RANG 10KOHM"
130 OUTPUT @Meter;"BIAS:VOLT 5"
140 OUTPUT @Meter;"APER LONG,4"
150 OUTPUT @Meter;"FUNC:SMON:VAC ON"
160 OUTPUT @Meter;"FUNC:SMON:IAC ON"
170 OUTPUT @Meter;"TRIG:DEL 5"
180 OUTPUT @Meter;"FUNC:DEV1:MODE ABS"
190 OUTPUT @Meter;"FUNC:DEV2:MODE ABS"
200 OUTPUT @Meter;"FUNC:DEV1:REF 10000"
210 OUTPUT @Meter;"FUNC:DEV2:REF 1"
220 END

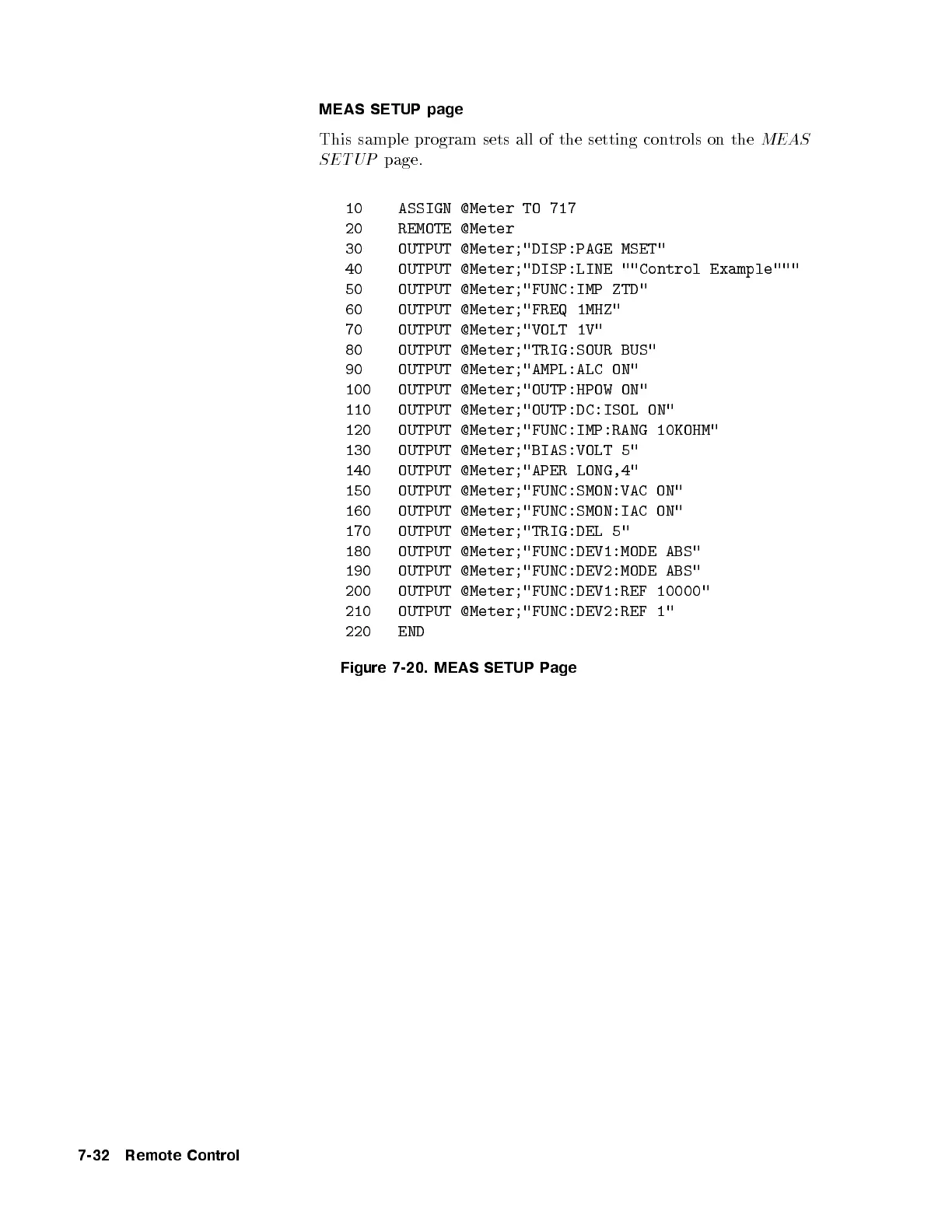

Figure 7-20. MEAS SETUP Page
