LIST SWEEP SETUP page
This sample program sets all of the setting controls on the LIST
SWEEP SETUP page.
10 ASSIGN @Meter TO 717
20 REMOTE @Meter
30 OUTPUT @Meter;"DISP:PAGE LSET"
40 OUTPUT @Meter;"LIST:MODE SEQ"
50 OUTPUT @Meter;"LIST:FREQ 1KHZ,2KHZ,5KHZ,10KHZ,20KHZ,50KHZ,100KHZ,200KHZ,500KHZ,1MH Z"
60 OUTPUT @Meter;"LIST:BAND1 A,100,200"
70 OUTPUT @Meter;"LIST:BAND2 A,100,200"
80 OUTPUT @Meter;"LIST:BAND3 A,100,200"
90 OUTPUT @Meter;"LIST:BAND4 A,100,200"
100 OUTPUT @Meter;"LIST:BAND5 A,100,200"
110 OUTPUT @Meter;"LIST:BAND6 A,100,200"
120 OUTPUT @Meter;"LIST:BAND7 A,100,200"
130 OUTPUT @Meter;"LIST:BAND8 A,100,200"
140 OUTPUT @Meter;"LIST:BAND9 A,100,200"
150 OUTPUT @Meter;"LIST:BAND10 A,100,200"
160 END

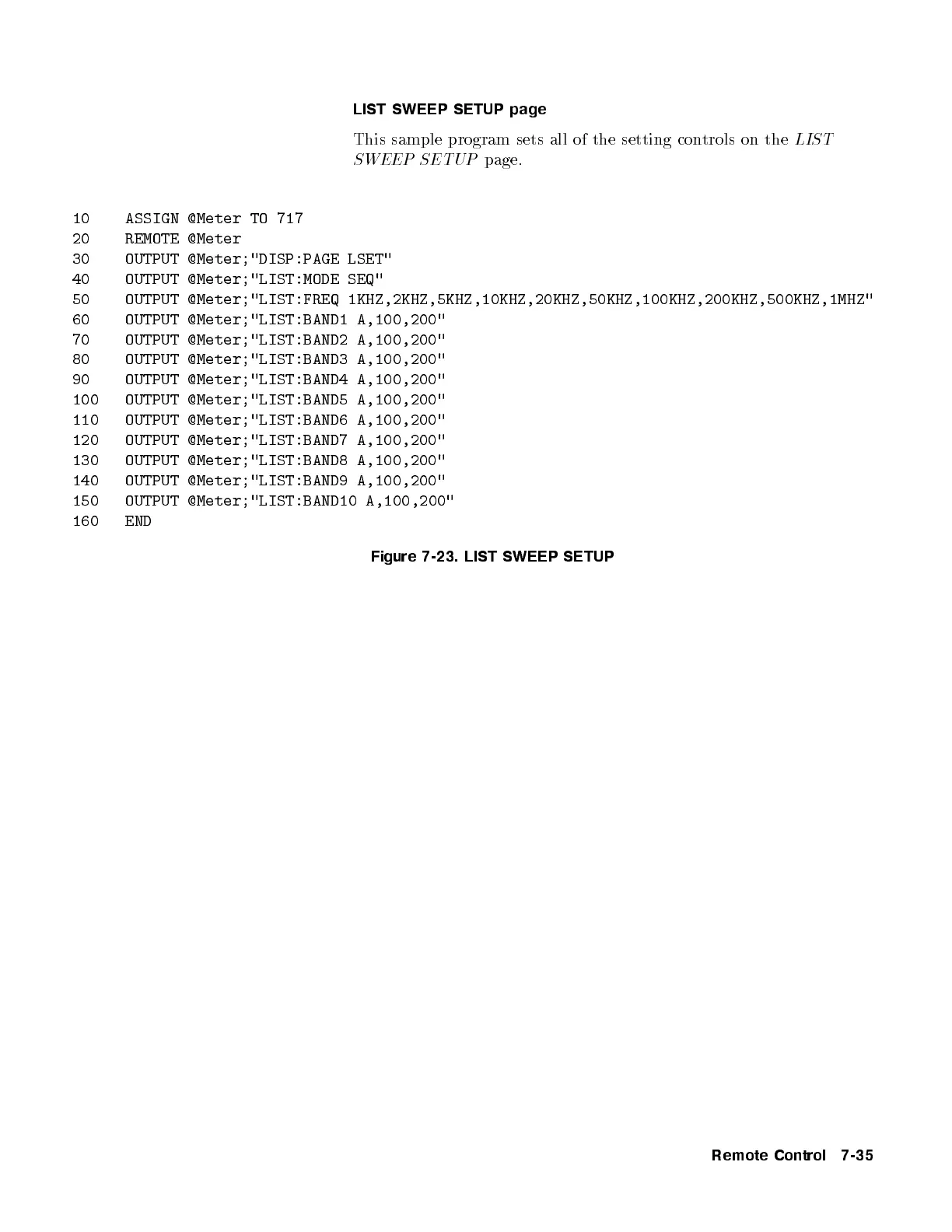

Figure 7-23. LIST SWEEP SETUP
