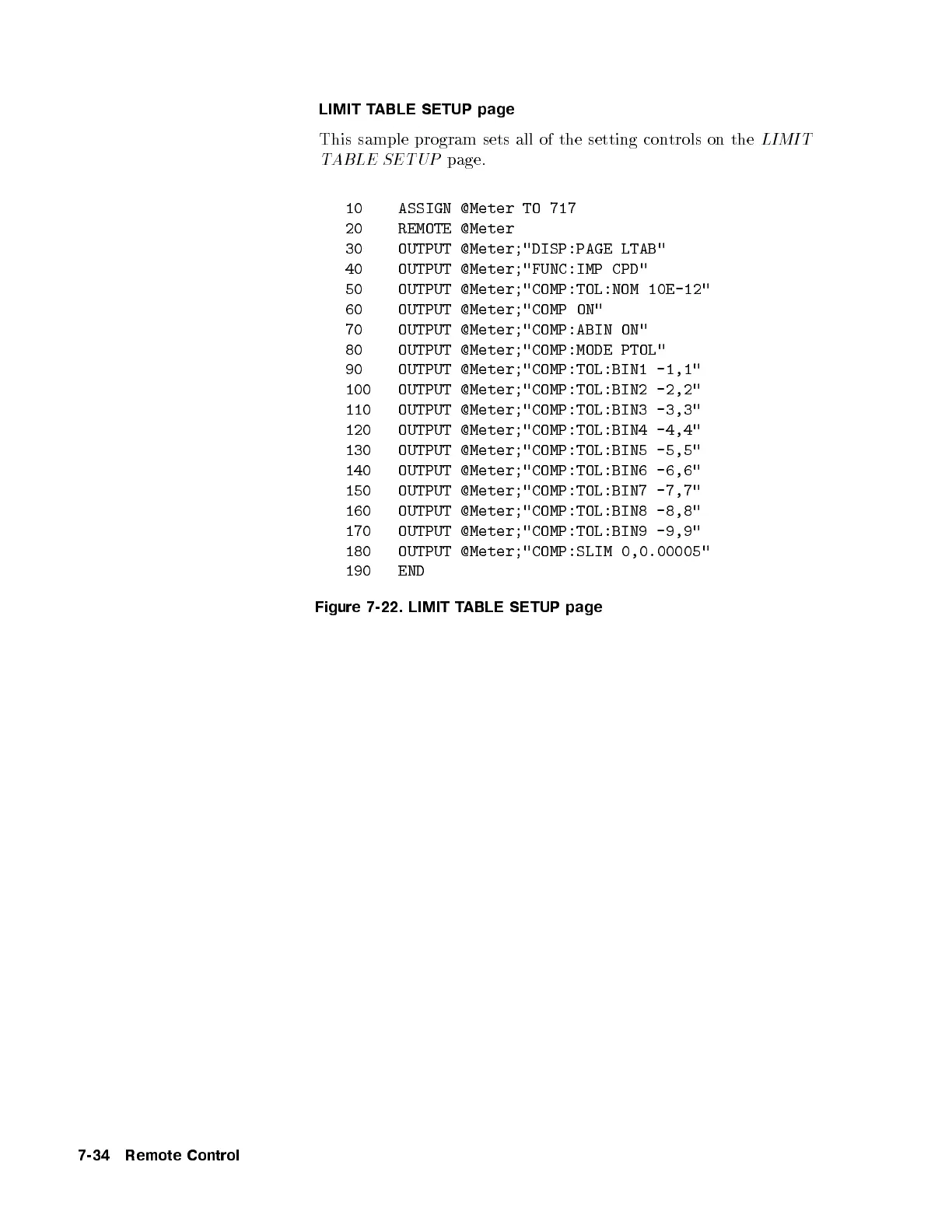

LIMIT TABLE SETUP page
This sample program sets all of the setting controls on the
LIMIT
TABLE SETUP
page.
10 ASSIGN @Meter TO 717
20 REMOTE @Meter
30 OUTPUT @Meter;"DISP:PAGE LTAB"
40 OUTPUT @Meter;"FUNC:IMP CPD"
50 OUTPUT @Meter;"COMP:TOL:NOM 10E-12"
60 OUTPUT @Meter;"COMP ON"
70 OUTPUT @Meter;"COMP:ABIN ON"
80 OUTPUT @Meter;"COMP:MODE PTOL"
90 OUTPUT @Meter;"COMP:TOL:BIN1 -1,1"
100 OUTPUT @Meter;"COMP:TOL:BIN2 -2,2"
110 OUTPUT @Meter;"COMP:TOL:BIN3 -3,3"
120 OUTPUT @Meter;"COMP:TOL:BIN4 -4,4"
130 OUTPUT @Meter;"COMP:TOL:BIN5 -5,5"
140 OUTPUT @Meter;"COMP:TOL:BIN6 -6,6"
150 OUTPUT @Meter;"COMP:TOL:BIN7 -7,7"
160 OUTPUT @Meter;"COMP:TOL:BIN8 -8,8"
170 OUTPUT @Meter;"COMP:TOL:BIN9 -9,9"
180 OUTPUT @Meter;"COMP:SLIM 0,0.00005"
190 END
Figure 7-22. LIMIT TABLE SETUP page
