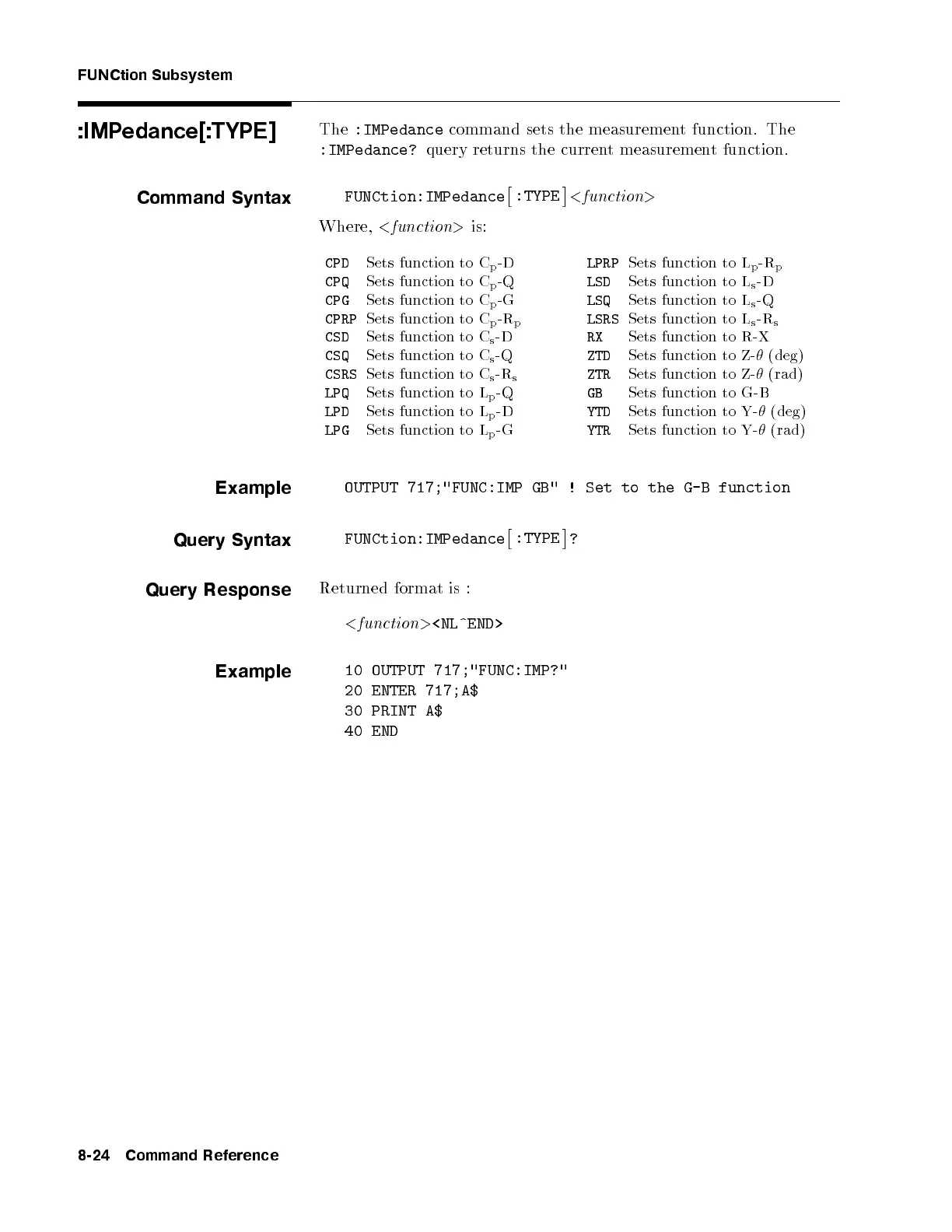

FUNCtion Subsystem
:IMPedance[:TYPE]
The :IMPedance command sets the measurement function. The
:IMPedance? query returns the current measurement function.
Command Syntax
FUNCtion:IMPedance
2
:TYPE
3
< function >
Where, < function > is:
CPD Sets function to C
p
-D LPRP Sets function to L
p
-R
p
CPQ Sets function to C
p
-Q LSD Sets function to L
s
-D
CPG Sets function to C
p
-G LSQ Sets function to L
s
-Q
CPRP Sets function to C
p
-R
p
LSRS Sets function to L
s
-R
s
CSD Sets function to C
s
-D RX Sets function to R-X
CSQ Sets function to C
s
-Q ZTD Sets function to Z-  (deg)
CSRS Sets function to C
s
-R
s
ZTR Sets function to Z-  (rad)
LPQ Sets function to L
p
-Q GB Sets function to G-B
LPD Sets function to L
p
-D YTD Sets function to Y-  (deg)
LPG Sets function to L
p
-G YTR Sets function to Y-  (rad)
Example
OUTPUT 717;"FUNC:IMP GB" ! Set to the G-B function
Query Syntax
FUNCtion:IMPedance
2
:TYPE
3
?
Query Response
Returned format is :
< function > <NL^END>
Example
10 OUTPUT 717;"FUNC:IMP?"
20 ENTER 717;A$
30 PRINT A$
40 END
