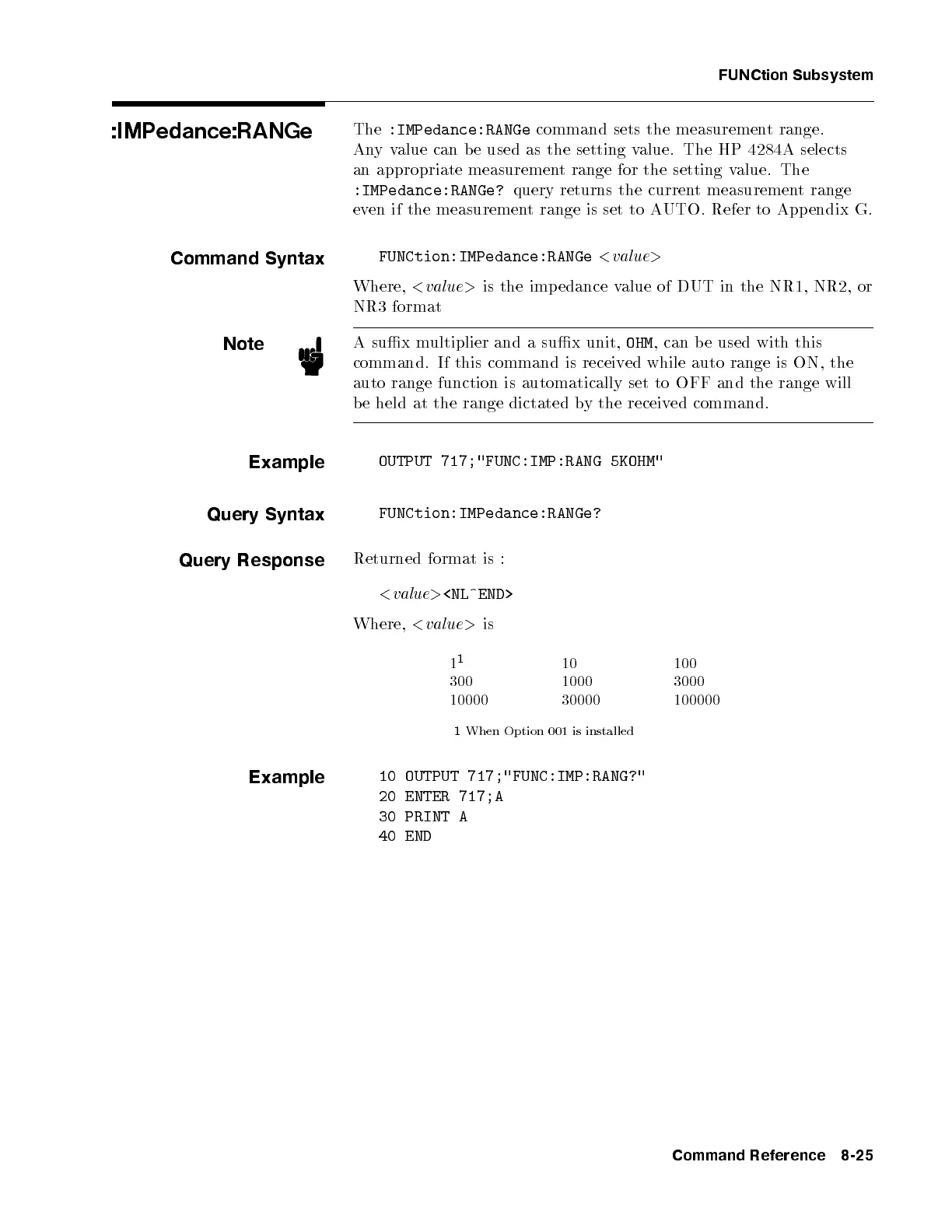

FUNCtion Subsystem
:IMPedance:RANGe
The :IMPedance:RANGe command sets the measurement range.
Anyvalue can b e used as the setting value. The HP 4284A selects
an appropriate measurement range for the setting value. The
:IMPedance:RANGe? query returns the current measurement range
even if the measurement range is set to AUTO. Refer to App endix G.
Command Syntax
FUNCtion:IMPedance:RANGe < value >
Where, < value > is the impedance value of DUT in the NR1, NR2, or
NR3 format
Note
A sux multiplier and a sux unit, OHM , can be used with this
command. If this command is received while auto range is ON, the
auto range function is automatically set to OFF and the range will
be held at the range dictated by the received command.
Example
OUTPUT 717;"FUNC:IMP:RANG 5KOHM"
Query Syntax
FUNCtion:IMPedance:RANGe?
Query Response
Returned format is :
< value > <NL^END>
Where, < value > is
1
1
10 100
300 1000 3000
10000 30000 100000
1 When Option 001 is installed
Example
10 OUTPUT 717;"FUNC:IMP:RANG?"
20 ENTER 717;A
30 PRINT A
40 END
Command Reference 8-25
