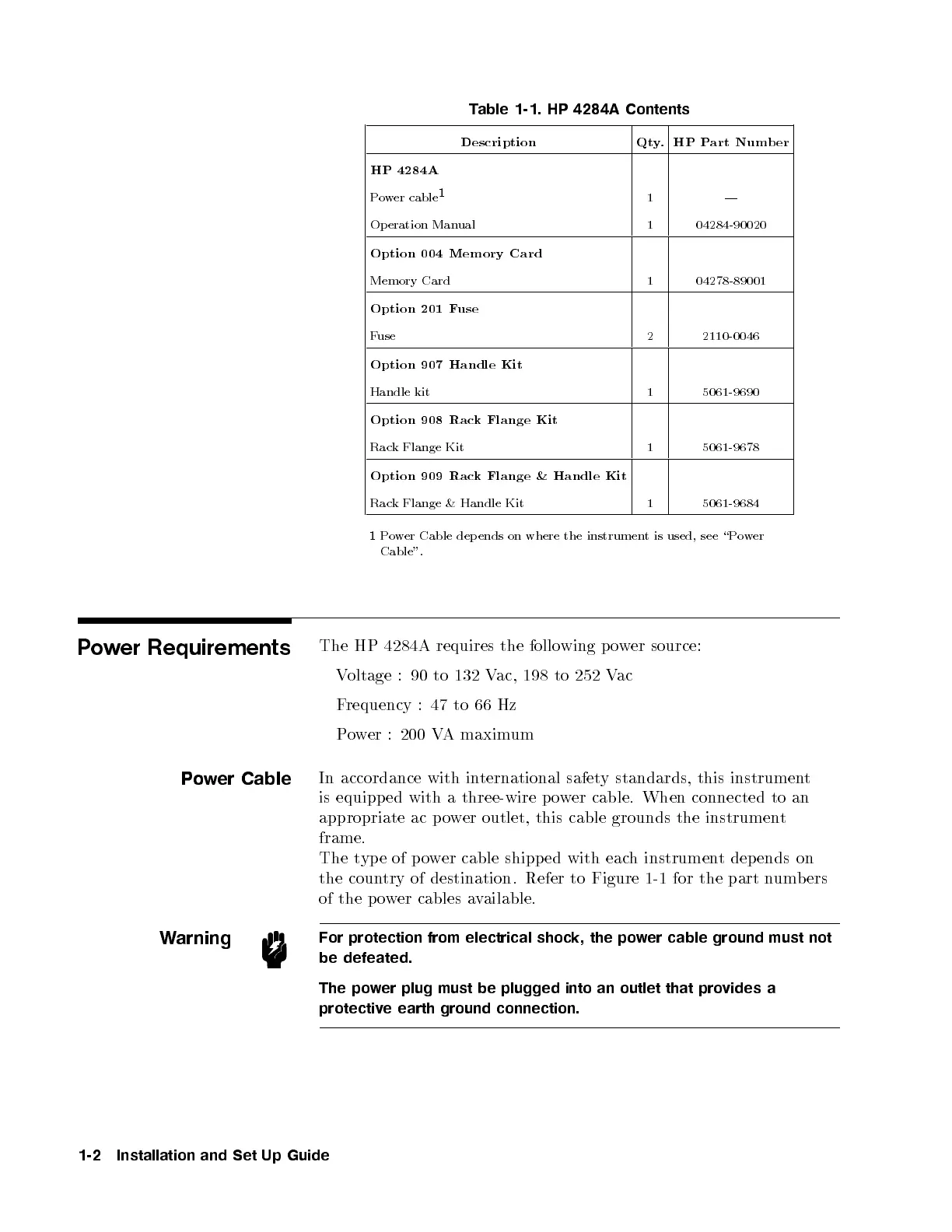

Table 1-1. HP 4284A Contents
Description Qty.HPPart Numb er
HP 4284A
Power cable
1
1 |
Operation Manual 1 04284-90020
Option 004 Memory Card
Memory Card 1 04278-89001
Option 201 Fuse
Fuse 2 2110-0046
Option 907 Handle Kit
Handle kit 1 5061-9690
Option 908 Rack Flange Kit
Rack Flange Kit 1 5061-9678
Option 909 Rack Flange & Handle Kit
Rack Flange & Handle Kit 1 5061-9684
1
Power Cable dep ends on where the instrument is used, see \P
ower
Cable".
Power Requirements
The HP 4284A requires the following po
wer source:
Voltage : 90 to 132 Vac, 198 to 252 Vac
Frequency : 47 to 66 Hz
Power : 200 VA maximum
Power Cable
In accordance with international safety standards, this instrument
is equipped with a three-wire p ower cable. When connected to an
appropriate ac p ower outlet, this cable grounds the instrument
frame.
The type of p ower cable shipp ed with each instrument depends on
the country of destination. Refer to Figure 1-1 for the part n
umb ers
of the power cables available.
Warning
For protection from electrical shock, the power cable ground must not
be defeated.
The power plug must be plugged into an outlet that provides a
protective earth ground connection.
1-2 Installation and Set Up Guide
