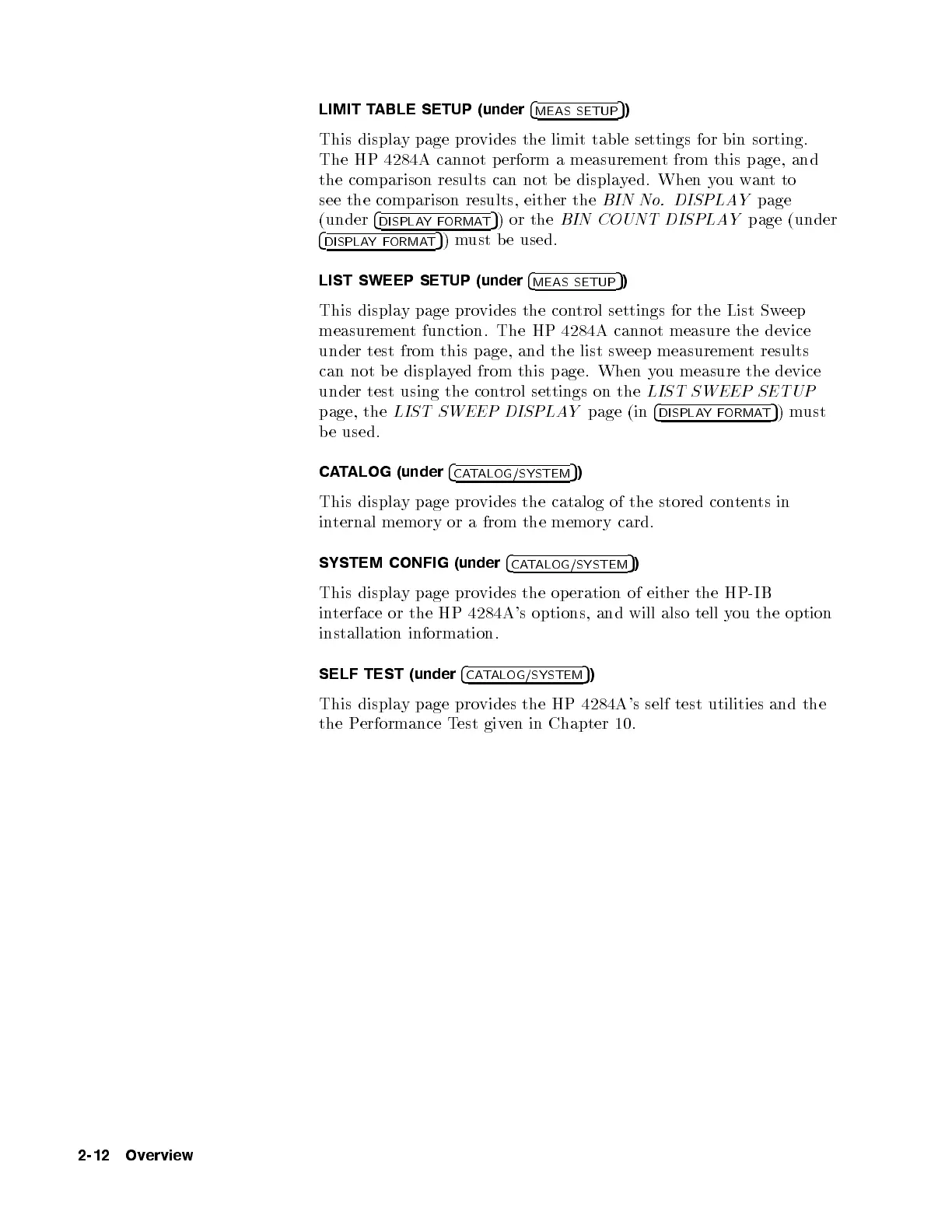

LIMIT TABLE SETUP (under
4
MEAS SETUP
5
)
This display page provides the limit table settings for bin sorting.
The HP 4284A cannot p erform a measurement from this page, and
the comparison results can not b e displayed. When you wantto
see the comparison results, either the
BIN No. DISPLAY
page
(under
4
DISPLAYFORMAT
5
) or the
BIN COUNT DISPLAY
page (under
4
DISPLAYFORMAT
5
)must b e used.
LIST SWEEP SETUP (under
4
MEAS SETUP
5
)
This display page provides the control settings for the List Sweep
measurement function. The HP 4284A cannot measure the device
under test from this page, and the list sweep measurement results
can not be displayed from this page. When you measure the device
under test using the control settings on the
LIST SWEEP SETUP
page, the
LIST SWEEP DISPLAY
page (in
4
DISPLAYFORMAT
5
)must
be used.
CATALOG (under
4
CATALOG/SYSTEM
5
)
This display page provides the catalog of the stored contents in
internal memory or a from the memory card.
SYSTEM CONFIG (under
4
CATALOG/SYSTEM
5
)
This display page provides the op eration of either the HP-IB
interface or the HP 4284A's options, and will also tell y
ou the option
installation information.
SELF TEST (under
4
CATALOG/SYSTEM
5
)
This display page provides the HP 4284A's self test utilities and the
the Performance Test given in Chapter 10.
2-12 Overview
