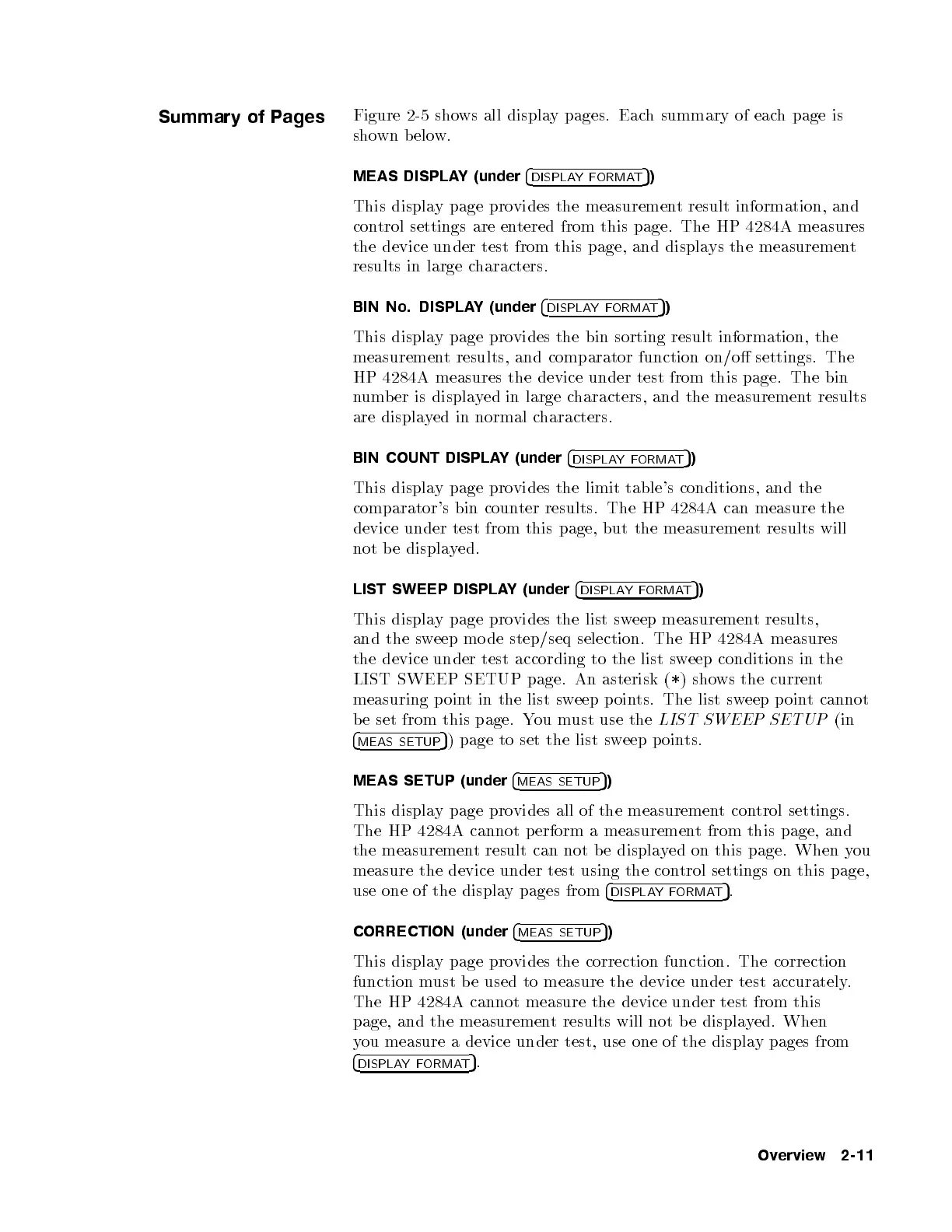

Summary of Pages
Figure 2-5 shows all display pages. Each summary of each page is
shown below.
MEAS DISPLAY (under
4
DISPLAYFORMAT
5
)
This display page provides the measurement result information, and
control settings are entered from this page. The HP 4284A measures
the device under test from this page, and displays the measurement
results in large characters.
BIN No. DISPLAY (under
4
DISPLAYFORMAT
5
)
This display page provides the bin sorting result information, the
measurement results, and comparator function on/o settings. The
HP 4284A measures the device under test from this page. The bin
number is displayed in large characters, and the measurement results
are displayed in normal characters.
BIN COUNT DISPLAY (under
4
DISPLAYFORMAT
5
)
This display page provides the limit table's conditions, and the
comparator's bin counter results. The HP 4284A can measure the
device under test from this page, but the measuremen
t results will
not be displayed.
LIST SWEEP DISPLAY (under
4
DISPLAYFORMAT
5
)
This display page provides the list sweep measurement results,
and the sweep mo de step/seq selection. The HP 4284A measures
the device under test according to the list sw
eep conditions in the
LIST SWEEP SETUP page. An asterisk (
*
) shows the current
measuring p oint in the list sweep p oints. The list sweep p oint cannot
be set from this page. You must use the
LIST SWEEP SETUP
(in
4
MEAS SETUP
5
) page to set the list sweep p oints.
MEAS SETUP (under
4
MEAS SETUP
5
)
This display page provides all of the measurement control settings.
The HP 4284A cannot p erform a measurement from this page, and
the measurement result can not be displayed on this page. When you
measure the device under test using the control settings on this page,
use one of the display pages from
4
DISPLAYFORMAT
5
.
CORRECTION (under
4
MEAS SETUP
5
)
This display page provides the correction function. The correction
function must be used to measure the device under test accurately.
The HP 4284A cannot measure the device under test from this
page, and the measurement results will not b e displayed. When
you measure a device under test, use one of the displa
y pages from
4
DISPLAYFORMAT
5
.
Overview 2-11
