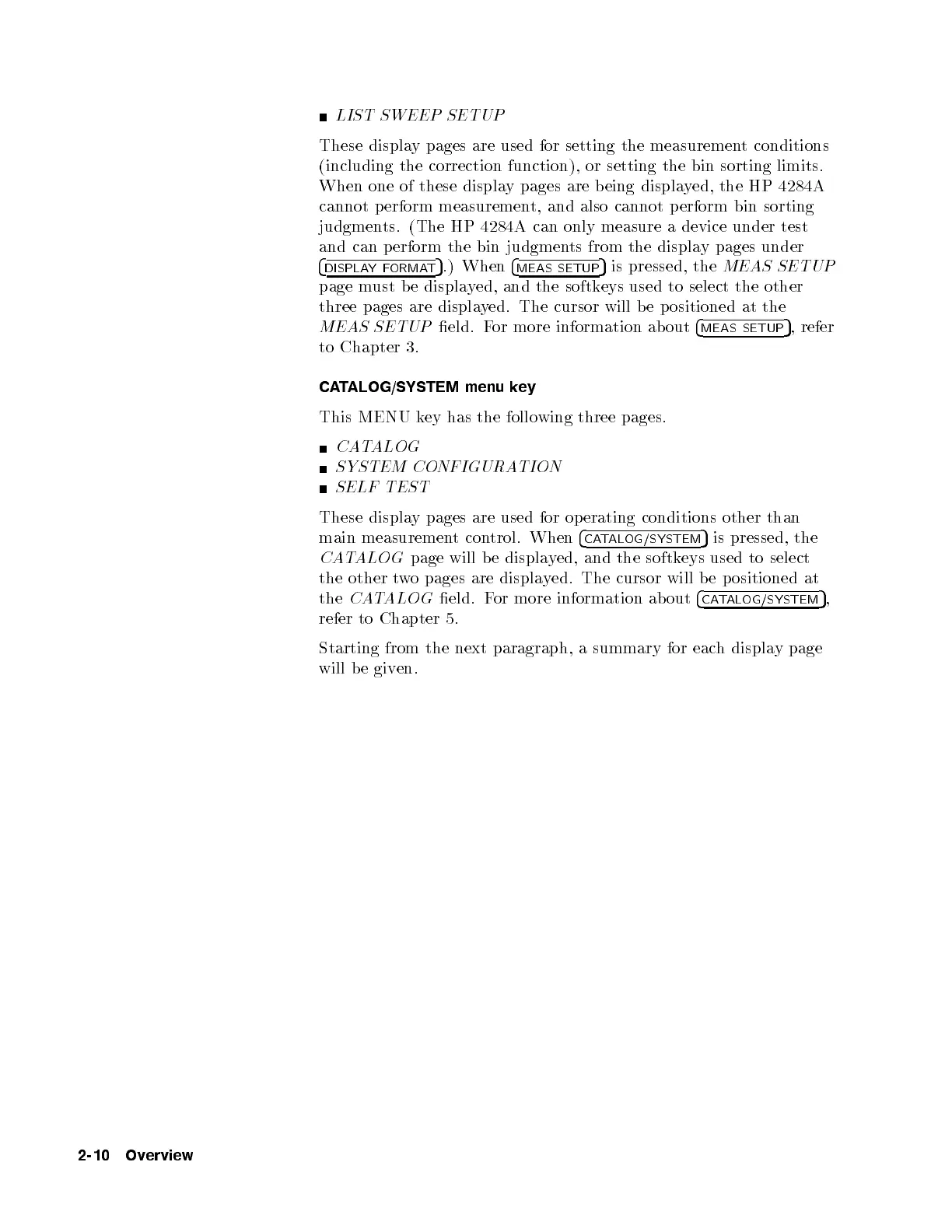

LIST SWEEP SETUP
These display pages are used for setting the measurement conditions
(including the correction function), or setting the bin sorting limits.
When one of these display pages are b eing displayed, the HP 4284A
cannot perform measurement, and also cannot p erform bin sorting
judgments. (The HP 4284A can only measure a device under test
and can p erform the bin judgments from the display pages under
4
DISPLAYFORMAT
5
.) When
4
MEAS SETUP
5
is pressed, the
MEAS SETUP
page must be displayed, and the softkeys used to select the other
three pages are displayed. The cursor will b e p ositioned at the
MEAS SETUP
eld. For more information ab out
4
MEAS SETUP
5
, refer
to Chapter 3.
CATALOG/SYSTEM menu key
This MENU key has the follo wing three pages.
CATALOG
SYSTEM CONFIGURATION
SELF TEST
These display pages are used for op erating conditions other than
main measurement control. When
4
CATALOG/SYSTEM
5
is pressed, the
CATALOG
page will be displayed, and the softkeys used to select
the other two pages are displayed. The cursor will be p ositioned at
the
CATALOG
eld. For more information about
4
CATALOG/SYSTEM
5
,
refer to Chapter 5.
Starting from the next paragraph, a summary for eac
h display page
will be given.
2-10 Overview
